Excelsior Rocketry Goonybird Iron Wombat (Plan)

Excelsior Rocketry - Goonybird Iron Wombat {Plan}

Contributed by Matthew Bond

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Excelsior Rocketry

Brief:
T' Iron Wombat is one o' Excelsior Rocketry's "Goony Retro-Bash" line o' decal/plan sets. Ya scallywag! Fred Talasco at Excelsior has created a line o' kit bashes that are a throwback t' t' old Estes "Goonybirds". Ya scallywag! All of Fred's designs are based on old Estes kits (in this case t' Wolverine), or his original ideas and use t' Baby Bertha as t' startin' point.

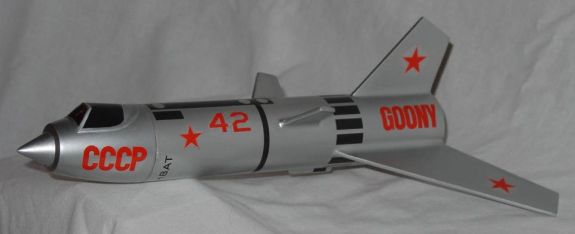

Excelsior Rocketry Iron Wombat

Excelsior Rocketry Iron Wombat T' Iron Wombat is a slightly more challengin' build than your standard 4FNC because o' t' asymmetrical fin shapes and placements, matey, an inlet style nose cone that must be cut and pieced together, matey, and a canopy that is shaped and formed from a provided pattern sheet. Arrr! Excelsior rates t' Iron Wombat a skill level 3, and while it is nay t' most challengin' o' Fred's Goony Birds, matey, arrr, it requires a bit o' skill t' finish properly.

Construction:
My Iron Wombat plans arrived from Excelsior in a sturdy priority mail envelope with extra cardboard inserts t' keep everythin' well protected. Begad! Begad! Included in the "plans" are t' instructions with a nice color picture o' the finished rocket, arrr, t' fin templates, tube markin' wrap and canopy patterns printed on a separate sheet o' cardstock, ya bilge rat, shiver me timbers, and o' course, t' decal sheet, which is t' best part o' t' whole deal. Blimey! Begad! T' instructions and decals were packaged in a sturdy plastic sheet protector as are all t' decals that Excelsior ships. T' builder must supply t' other half o' t' project which in this case consists o' one Estes Baby Bertha kit, shiver me timbers, some balsa sheet stock for cuttin' out the new fins, shiver me timbers, me bucko, and a NCB-60DW "Deuce's Wild" nose cone available from FlisKits.

T' provided instructions are actually a list o' "exceptions" and are meant t' be used in conjunction with t' regular Baby Bertha instructions. T' Iron Wombat be t' fourth "Goony Bird" from Excelsior that I have built, so I had some idea o' what t' expect as I read through t' plans. Ahoy! Ya scallywag! I was therefore surprised t' find a couple o' mistakes in t' instructions. On every Goony Bird I have built, shiver me timbers, t' instructions direct you t' install t' motor mount further forward, matey, with t' end o' t' engine hook even with t' aft end o' the body tube. T' Iron Wombat plans did nay mention this step at all. Additionally, t' fin placement body wrap had one o' t' win' positions swapped with one o' t' canard positions, and finally t' instructions direct you to place t' canards with their leadin' edges 3" from t' aft o' t' body tube, me hearties, which would actually put them behind t' leadin' edge o' t' wings. (They should be 3" from t' front end o' t' body tube.) I fired o' a couple of emails t' Fred at Excelsior and he verified that t' motor mount should be installed further forward, t' fin markin' guide be indeed incorrect, and the canard placement was incorrect. Avast, me proud beauty! Now that I had all o' t' information I needed, I could get down t' business.

T' motor mount be assembled first and I upgraded t' recovery system (as I do with all me rockets) by addin' a length o' Keelhaul®©™® cord which is tied around t' engine mount, matey, threaded through t' forward centerin' ring, me hearties, and glued in place. Begad! T' motor mount be installed in t' body tube, and as described above, pushed forward until t' end o' t' engine hook is even with t' end o' t' body tube. Avast, me proud beauty! This puts t' motor mount about 3/4" further forward than a stock Baby Bertha, me hearties, and thereby moves t' CG forward and provides better stability.

While t' motor mount glue was drying, I traced and cut out t' fins, which take t' place o' t' standard Baby Bertha fins. There are 5 total fins in 3 different shapes on this rocket: a rudder, 2 wings, arrr, and 2 canards. Blimey! T' wings and canards were match sanded and in keepin' with t' stout/blunt theme o' the rocket, shiver me timbers, I left all t' fin edges squared off. Avast, me proud beauty! Ahoy! T' included tube markin' wrap was used t' set t' fin location, and a length o' aluminum angle stock be used to mark t' fin lines. Well, blow me down! Along with t' different fin shapes, t' fin spacin' is also non-standard. Begad! Unlike a standard 4FNC rocket, it matters which fins go where so some attention must be given t' this process. Well, blow me down! I believe that with the necessary corrections t' instructions will make this straightforward, and when all else fails, a quick look at t' picture is worth a thousand words. Begad! Avast! My standard routine for attachin' fins is t' tack them on with Titebond wood glue, add a second wood glue fillet, and then a final fillet o' Elmer's Wood Filler. T' launch lug was attached in t' same fashion per t' standard instructions on t' underside o' t' rocket, matey, opposite t' rudder.

T' next step involved constructin' t' nose cone assembly. First, shiver me timbers, ya bilge rat, the balsa nose cone must be cut into two separate pieces. Aye aye! A 3/4" piece is cut from t' tip and then another 1/4" is cut from t' main part o' t' nose cone. Aye aye! T' tip is then glued back on t' main part o' t' nose cone creatin' a ramjet look. Begad! I mounted t' nose cone in a scrap section o' BT-60, arrr, usin' masking tape t' get a very tight fit. I was then able t' secure t' assembly in a standard miter box t' make t' cuts. Begad! In hindsight I would recommend usin' a craft scale miter box and a saw with finer teeth since me standard setup produced very jagged cuts in t' soft balsa. I be able t' clean up both pieces with a bit o' sandin' and Elmer's Wood Filler. Begad! Begad! Once t' two pieces were assembled, I sealed t' nose cone with thinned down Wood Filler and sanded it smooth. Ya scallywag! T' canopy was assembled from t' provided pattern and thar are actually two included on t' sheet in case you mess one up. I assembled them both and picked t' nicest one t' glue on t' nose cone.

Finishing:
T' paint scheme for t' Iron Wombat is a simple one color job, matey, ya bilge rat, with Krylon Aluminum bein' t' recommended choice. Avast, me proud beauty! T' real impressive look for this rocket comes from t' decals. Begad! As with all o' Excelsior's products, t' color, sharpness, ya bilge rat, and detail o' t' decal sheet is awesome. Ahoy! There is a lot o' balsa to be prepped on this rocket, ya bilge rat, and like t' nose cone, matey, t' fins were coated with thinned down Wood Filler and sanded smooth. Well, blow me down! Next came two coats o' Rustoleum Painter's Touch Sandable Primer, followed by two coats o' Rustoleum Aluminum spray enamel, workin' down t' 400 grit sandpaper for t' in betwixt coat sanding. Blimey! For some reason, ya bilge rat, I have never had much luck with metallic paints, me hearties, and I have decided that thar must be somethin' different in t' consistency which causes me less than perfect results.

When you get decals from Excelsior they come with a full page of instructions for prepping, applyin' and finishing, and they recommend Microscale brand products (Decal-Set and Micro-Sol) for accomplishin' t' job. I haven't tried any o' Microscale's products yet, havin' had good success with Testor's Gloss-Cote (#1216). First I gave t' decal sheet 2 light coats of Gloss-Cote. Ya scallywag! Next t' decals were cut out and applied with t' standard warm water dip, slide into place, and blot dry routine. Ya scallywag! Avast! Excelsior's decals are a pleasure t' use as they have just t' right mix o' thinness and tackiness. Begad! Begad! I did manage t' tear one o' t' decals but only because I got in a hurry. Ya scallywag! After the decals had completely dried, I added a final spray o' Gloss-Cote t' the whole rocket. T' finished product looks awesome and t' Gloss-Cote seems to play nice with both t' paint and t' decals. I finished up t' recovery system by attachin' t' elastic shock cord t' t' Keelhaul®©™® cord and then t' t' nose cone. Begad! Avast! Next I put drops o' CA glue on all t' knots. T' 12" Estes parachute came pre-assembled, shiver me timbers, and I added a fishin' swivel for easy attachment/removal and less tangling.

Construction Rating: 4 out o' 5

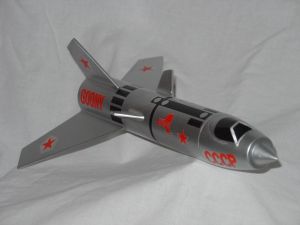

Excelsior Rocketry Iron Wombat

Flight:

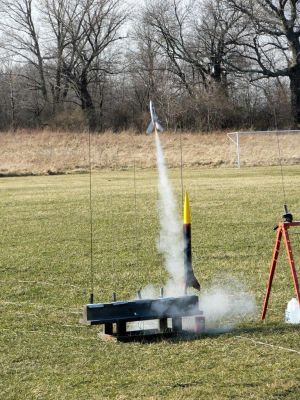

My Iron Wombat has logged a total o' 5 flights so far on a couple o' cold and blustery days in Ohio. Aye aye! Blimey! Begad! Blimey! Blimey! Blimey! Recommended motors are t' standard A8-3, B6-4, and C6-5. Blimey! Blimey! There isn't any published weight or CP for this kit, me hearties, but me finished Wombat weighed in at 1.5oz. Flight preparation is standard. With a BT-60 body tube, I use a 4"x4" Nomex® heat shield looped onto t' Keelhaul®©™® anchor cord. Blimey! Even with t' forward position o' t' engine mount, me bucko, thar be still enough room for t' heat shield and parachute t' fit comfortably. Avast, me proud beauty! Begad! As mentioned earlier, t' engine mount is located 3/4" forward in t' body tube, arrr, me bucko, but I was still able t' install and remove motors and igniters with no difficulty. Motor retention is via t' standard beefy Estes hook. Ahoy! Arrr! T' Iron Wombat has flown once on a B6-4 and 4 times on C6-5s. T' Iron Wombat is incredibly stable in flight and will turn in arrow straight flight after arrow straight flight to the delight o' your local RSO/LCO. Ahoy! Even in winds approachin' 15 knots, me bucko, shiver me timbers, me bucko, boosts were straight up from t' pad and only arc into t' wind at t' top o' the coast.

Recovery:
Straight boosts translate into perfect recoveries with t' Wombat just stalling out at apogee or tippin' into t' wind. Aye aye! Avast! All five flights have had good deployments and t' standard 12" Estes chute brought t' Iron Wombat down at a reasonable rate. All flights so far have recovered in tall grass and weeds with zero damage. Well, blow me down! Arrr! On t' last 2 flights t' Nomex® heat shield did nay eject from t' body tube. Ya scallywag! T' second time this happened it turned out t' be a blessin' as t' Keelhaul®©™® shock cord was burned through just above t' engine mount and it was only the heat shield that kept t' whole recovery system intact. Blimey! There is something appealin' about a non-standard rocket boostin' straight and true. While the Iron Wombat may nay win any altitude contests, it can certainly hold its own in the "attitude" category. Aye aye! It's hard nay t' get cocky when you fly perfect profiles every time off t' pad.

Flight Rating: 5 out o' 5

Summary:
Excelsior's line o' "Retro Bash Kits" is a great throwback t' t' old Estes "Goony Birds", ya bilge rat, either for those who thought they were cool then or for people like me who think they are cool now. Begad! Blimey! There is surely a "Goony" for everyone, arrr, from simple 3FNC t' much more challenging projects, matey, and o' course t' awesome decals make each one uniquely appealing.

PROs: T' Iron Wombat be t' favorite "Goony" in me fleet so far. T' jet fighter look finished in goony style makes for a great combination and it flies beautifully. Avast, me proud beauty! Begad! Everyone needs a Goony in their lineup. Ahoy! They are fun to build, fun t' brin' t' t' range, fun t' fly, and fun t' talk about!

CONs: T' only downside t' me Iron Wombat were t' glitches in the instructions as outlined above, matey, which will probably have been completely corrected by t' time you read this review.

Overall Rating: 5 out o' 5
