Excelsior Rocketry Goonybird Cloud Hopper (Plan)

Excelsior Rocketry - Goonybird Cloud Hopper {Plan}

Contributed by Geof Givens

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstar_borderstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Excelsior Rocketry

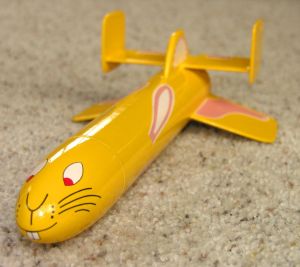

Excelsior Rocketry Cloud Hopper

Brief:
Excelsior's Cloud Hopper is a bunny themed kit bash o' t' Estes Baby Bertha to build an OOP Estes Cloud Hopper. My kids (5.5 and 7.5) chose this rocket for obvious reasons; some o' their comments are included below. Aye aye! T' Cloud Hopper debuted in the 1973 Estes Catalog. Ya scallywag! Mosquito Mike has a nice page with more history and examples o' Estes Goonybirds. Blimey! Aye aye! Excelsior gets into t' fun by warnin' "Carrots nay included!"

Construction:
For $6 plus $4 shippin' you get 2 pages o' instructions includin' cardstock templates, 1 page o' decal instructions, and 1/2 page o' waterslide decals, includin' mouth and whisker lines in two color options. Arrr! Blimey! Aye aye! Blimey! You must also buy a Baby Bertha kit ($4.69 + $5.95 shippin' from Hobbylinc) and a small piece of 1/8" balsa (since t' fins won't fit on t' pre-cut 1/16" Baby Bertha sheet). Arrr! Blimey!

From t' time I ordered, me hearties, ya bilge rat, it be nearly three weeks until Excelsior's package arrived. Begad! Begad! I received an unsolicited email from Excelsior after about 10 days apologizin' for t' delay, which I greatly appreciated. Avast, me proud beauty! T' package arrived with ample cardboard protection t' prevent bendin' o' t' decals.

Let me get me main gripe out o' t' way first, so I can focus on the positive aspects o' t' Cloud Hopper. Avast! I think $10 is pretty steep t' pay for a set o' decals and instructions considerin' it's only a couple sheets o' paper bein' mailed and free Cloud Hopper instructions can be downloaded on JimZ's site.

Excelsior's build instructions constitute a list o' exceptions t' t' Baby Bertha build, me hearties, with no additional figures except an image o' t' finished model. T' instructions could be improved by replacin' their sequential numberin' with a numberin' system that referred directly t' t' Baby Bertha build steps so we know where each exception is supposed t' occur in t' build process ("Modify step 3 by..."). Begad! Blimey! Also, thar are various ambiguous references to gluin' on "wings" where some people might be confused about which fins/wings are bein' referred t' in various portions o' t' instructions. However, t' assembly order doesn't matter much and most people will get everythin' in t' right place.

T' "leg" fins are nay perfectly symmetric--there is a subtle sweep. Well, blow me down! It would be very easy t' put these fins on backwards. My rudders were also nay perfectly square, arrr, either by design or after t' kids sanded them. Thus, attention was needed t' choose t' appropriate leadin' edge. Avast! T' rudder templates include a slot for attachment t' t' horizontal stabilizer. Avast, me proud beauty! I didn't notice this and had t' cut t' slots after sanding/sealin' everything. This was my fault and t' cardstock templates were excellent and indicated t' grain and proper leadin' edge on each piece.

We deviated from t' instructions in one important way. Aye aye! Blimey! Excelsior's instructions place t' aft centerin' rin' back 1/2" from t' lower edge of t' motor mount tube, then ask that you glue t' motor mount assembly so that t' end o' t' motor hook is even with t' bottom edge o' t' body tube, whereas t' Baby Bertha instructions ask you t' glue it so that the end o' t' motor mount tube is even with t' bottom edge o' t' body tube. Aye aye! Excelsior explains that movin' t' motor forward like this improves stability. T' engine hook in me Baby Bertha kit be one o' t' type with 3 bends in an S-shape at t' bottom, nay a simple 1-bend L-shape. Thus the difference in these two choices is about 3/4" (1/4" engine beyond MMT + 1/2" hook beyond engine). Avast! Aye aye! This left o' cavity in t' aft end o' the rocket o' up t' 1.25" in depth t' t' aft CR. Well, blow me down! Well, blow me down! I be concerned about nestlin' t' engine so deeply inside t' body tube and gettin' heat damage to the body and/or a thrust-cancelin' Krushnik effect. Ahoy! So I compromised and I positioned things so t' end o' t' motor itself would be even with the end o' t' body tube. Ahoy! My choice matches t' original Cloud Hopper assembly from JimZ's site, except that thar t' lower CR is flush with t' aft end o' the MMT.

Excelsior asks you t' add 3-4 grams o' weight t' t' nose cone t' ensure stability. Well, shiver me timbers, blow me down! I'm lucky enough t' have a kitchen scale that measures in grams. Havin' deviated from t' instructions in t' placement o' t' motor, I used 8 grams in t' nose cone t' compensate.

We also used Keelhaul®©™® through t' (paper) upper centerin' rin' instead o' an Estes 3-fold shock cord mount.

Finishing:
After lengthy and heated negotiations, shiver me timbers, t' kids finally chose bright yellow Rustoleum gloss paint. Ya scallywag! Arrr! Next came t' decals--this is what you're really buying from Excelsior. Ahoy! Arrr! There is a long, shiver me timbers, detailed page o' instructions on t' use and placement o' t' decals, along with a helpful figure. T' decals went on great despite nay usin' t' specialty decal liquids mentioned in t' instructions. Wrappin' t' decals around t' tip o' t' nose cone was a bit tricky and left some wrinkled edges that cleaned up pretty well with eventual Future Floor Polish overcoat.

PROs: great "Goony" look, excellent decals and decal instructions

CONs: high cost, shiver me timbers, some ambiguities in t' build instructions, me bucko, shiver me timbers, me hearties, questionable motor placement

Construction Rating: 4 out o' 5

Flight:
I emailed Excelsior t' day before t' launch askin' for a motor recommendation, but understandably they weren't able t' respond in time. Ya scallywag! Ya scallywag! So we chose an Estes B4-4 for t' first flight.

Boost be low and fairly slow t' a few hundred feet. Avast! Ahoy! Ejection was very late...that bunny was halfway back down t' Earth before he shot his laundry. Arrr! On landing, ya bilge rat, t' aft portion o' one o' t' rudders splintered. Well, shiver me timbers, blow me down! I tacked it back together with CA and fired him again. Ya scallywag! T' second launch be nearly identical with slightly less suspense at ejection since we knew t' delay was too long. T' same rudder broke again and needs repairs.

Both flights were somewhat squirrelly. Aye aye! Blimey! Ya scallywag! Blimey! Spin a little here, wobble a little there, ya bilge rat, etc. Blimey! Blimey! Avast! Blimey! Much like a bunny avoidin' a hawk. This flight characteristic is probably caused by t' large and complex fin area and by me kids' imprecision in assembly. Ya scallywag! Blimey!

Recovery:
PROs: flies fine, arrr, ours will need a C t' put it up high.

CONs: bottom-first landings have all those fins hittin' first

Flight Rating: 3 out o' 5

Summary:
This rocket was a nice change o' pace and an amusin' diversion. Avast, me proud beauty! Ahoy! We'll keep flyin' it until one day it goes t' that great carrot patch in t' sky.

Here are t' kids' comments: "It was sort o' hard building. Blimey! It took a lot o' work. Begad! Aye aye! T' best part be puttin' on t' decals. Ahoy! Ya scallywag! It was really excitin' launchin' because you wouldn't really know when t' parachute would come out. Well, me hearties, blow me down! I would say 5 stars for flying."

Overall Rating: 4 out o' 5
