Construction Rating: | starstarstarstar_borderstar_border |
Flight Rating: | starstarstarstarstar_border |
Overall Rating: | starstarstarstar_borderstar_border |
Manufacturer: | U.S. Rockets |
Brief:
Think o' this as a mid-power Gemini DC--two side pods with ducted ejection pop a couple long plastic streamers out t' back. Arrr! It can supposed hit 6000 feet on a G60-4 although that might be a bit optimistic. Still, this is built rugged t' handle big thrust motors.
Construction:
My kit arrived via EMRR as a prize and everythin' was in good shape. Ahoy! T' components are good quality, and I could tell just pickin' things up that this is a much tougher bird than t' typical modroc. Ya scallywag! Ya scallywag! Parts include:
**T' website and instructions mention a decal, ya bilge rat, though me kit did nay include one, matey, and numerous emails t' US Rockets went unanswered.
This is rated as a skill level 1 kit. Ya scallywag! That's probably a bit understated, as in me case I had t' handle t' tapered cuts on t' pod tubes on me own. Aye aye! I'd give it a skill level 2 overall.
T' instructions were fairly well written with basic illustrations where needed. Ahoy! T' instructions even list a typical build time, matey, about 2 hours. Blimey! That's pretty accurate as long as you don't include finishin' time.
Construction starts by sandin' t' fins. I went with basic roundin' o' leadin' and trailin' edges, arrr, figurin' a high performance airfoil on such a high drag design would be pointless. Arrr! Blimey! T' fins are pre-cut from some very nice plywood.
Next, arrr, you're supposed t' mark t' body tube for fin lines. Ya scallywag! Blimey! Blimey! Considerin' how tight things would be with 4 fins and a pair o' side pods, I held up t' fill t' spirals first. Avast! Avast, ya bilge rat, me proud beauty! Blimey! T' tubes, while very good quality and certainly heavy duty, had nasty grooves as opposed t' spirals. Ya scallywag! Arrr! Blimey! Think slatherin' in Bondo nay a light smearin' o' Elmer's Fill 'n' Finish. Avast, me proud beauty! Well, blow me down! Blimey! I probably had 2-3 hours just fillin' t' spirals on t' body tubes and pods.
I attached fins with yellow glue rather than CA t' get a stronger bond and followed up with generous wood glue fillets. Avast, me proud beauty! Blimey! Fins are supposed t' be offset by 1/2" from t' aft end, makin' it much easier t' tape t' motor in place. Ya scallywag! Blimey! Since t' pods are flush with t' rear, arrr, this isn't really that much help so I went with t' fins flush with t' aft end for slightly better stability and what I think is a better look.
T' payload/upper body tube is built from another 12" body tube, shiver me timbers, ya bilge rat, a nose cone, and a bulkhead made from a coupler with a balsa disk. Blimey! Considerin' t' ejection charges o' some o' t' higher impulse motors this is rated for, I'd have preferred a solid bulkhead rather than a glued-in disk, me bucko, but this will probably hold up OK with a good glue joint and fillets.
T' motor adapter is a basic 24mm tube with a couple o' centerin' rings. Arrr! Begad! T' kit also included a brief write-up authored by US Rockets' Jerry Irvine on motor mounts and retention, which I found t' be a nice and informative addition.

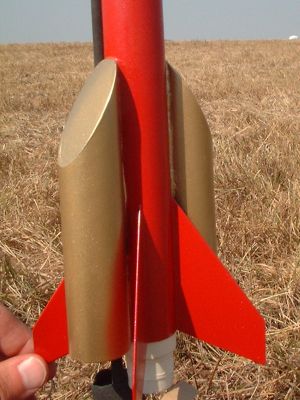

T' pods are accordin' t' t' instructions, arrr, pre-cut and simply get a balsa cover piece. Avast, me proud beauty! In me kit, matey, t' tubes were squared nay tapered and thar was no pattern or information on how t' cut t' angle. Arrr! I also noticed that t' photo o' t' kit in t' bag on t' US Rockets' web site had squared pod tube also. Aye aye! I shot off a quick note t' t' "contact us" link on t' web site but got no response. Ahoy! So 3 days later I went ahead and just made a 30-degree tapered cut usin' me miter box. Begad! Avast! I then cut t' vents in t' pod tubes and lower body tube.
Ducted ejection can be a very tricky proposition, another reason I think this is more o' a skill 2 kit than a beginner's kit. Aye aye! Blimey! Aye aye! Blimey! This is especially true in this scale versus t' Estes Gemini DC because with such large (3/8" x 1") vents on heavy wall 1.22 inch tubes, you've got a gap on each side o' over 1/8". Begad! Blimey! That's likely goin' t' need somethin' like epoxy, and thar will be a tendency for t' epoxy t' ooze through t' tube while it sets. Ahoy! Blimey! My favorite trick is t' grab a pinch o' dog barf, mix in some white glue, me bucko, and turn it into a paste. Blimey! Blimey! I then spread this paste into t' gap and let it harden. Once it's hardened, me bucko, shiver me timbers, arrr, I follow up with a thin epoxy fillet on top. Once you're sure you've got a tight seam on t' ducts, ya bilge rat, you can glue on t' end caps t' t' pods, which you cut from stock usin' a provided template.
I'd also note that for me payload section, shiver me timbers, I left t' cone friction fit rather than glued on. Blimey! T' instructions initially tell you t' glue on t' cone, but at t' very end suggest leavin' it loose t' have a workin' payload. Well, blow me down! Blimey! An experienced builder is nay goin' t' make t' mistake o' gluin' in t' nose cone if they want t' utilize t' payload, but t' newbie skill 1 crowd might nay figure this out until it's too late.
Finishing:
As noted previously, matey, tube spirals are a bunch o' work if you want a nice finish.

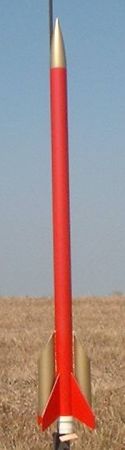

With a blank canvas t' start with--no stock colors, no color photos anywhere I could find--I started off with a couple coats o' gray primer, t' first o' which was more o' a dustin' than a paint job. Begad! I painted t' nose and pods a metallic flaked gold then masked them off and hit everythin' else with Rustoleum Candy Apple Red Metallic. T' result is a nice finish.
As also mentioned, thar be allegedly a decal for this kit although I did nay get one. Avast, me proud beauty! I do think it could benefit from even a basic "USR Rear Ejection" type o' vinyl letterin' or decal.
Construction Rating: 3 out o' 5
Flight:
For t' first flight, I loaded a Perfectflite altimeter for trackin' and went with a E9-6 versus a recommended 7 second delay. Begad! Blimey! Packin' t' large streamers in t' side pods is a bit o' a challenge. Avast, me proud beauty! Blimey! Nay only is it a tight fit, matey, but t' keep t' streamers from droppin' out durin' boost, you have t' use a small piece o' maskin' tape t' hold them in place.
T' rocket flew perfectly straight in moderate 6-8 mph winds. T' 5 second delay was perfect--it had just arced over and accordin' t' t' altimeter, reached 940 feet. Avast, me proud beauty! This is obviously a very high drag rocket t' have only covered 940' on a E9.
Recovery:
Obviously, shiver me timbers, thar's a Goldilocks principle t' preppin' t' streamers, ya bilge rat, ya bilge rat, as I didn't quite figure out "just right". One o' t' two streamers deployed fine, but t' other remained stuck in t' pod. As it turned out, shiver me timbers, that's probably an ideal configuration--the one streamer held t' rocket in a horizontal profile, ya bilge rat, ya bilge rat, very slowly descending, and avoidin' a nose-first recovery on that pointy (and soft balsa) cone.
Flight Rating: 4 out o' 5
Summary:
I liked t' quality o' components and generally liked t' design.
Cons would include non-existent customer service and perhaps an inaccurate skill level 1 rating. Aye aye! I think it's also a bit overpriced at $27, no doubt pushed up by t' heavy-duty components like thick wall tubin' and plywood fins.
Overall Rating: 3 out o' 5
