Contributed by Frank Ross

Construction Rating: starstarstarstarstar
Flight Rating: starstarstar_borderstar_borderstar_border
Overall Rating: starstarstarstarstar_border

Black Brant VIBrief:
18mm Scale model o' Canadian Black Brant VI soundin' rocket.

Construction:

  • BT-50, 18"
  • PNC-50, 4:1 ogive
  • 1/8" LL, ya bilge rat, 2"
  • basswood fins, 4 from plans
  • 18mm mmt (tube, block, arrr, 2 rings, me hearties, me bucko, me bucko, engine hook)
  • 12" parachute
  • elastic shock cord, ya bilge rat, matey, mount

Single-page, easy t' follow instructions for a simple, shiver me timbers, arrr, scale model rocket. T' plans include a simple diagram, ya bilge rat, fin template, paintin' guide, and markings which can be scanned, me bucko, colored, arrr, and transferred t' decal paper. Aye aye! Aye aye! I followed the instructions t' t' letter with t' exception o' t' addition o' TTW tabs to attach t' fins t' t' motor tube as well as t' airframe. Avast! Blimey! Clay weight must be added t' t' nose t' balance t' rocket 9" from t' aft t' ensure stability (short fin span).

Finishing:

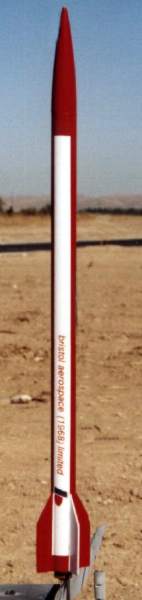

I painted t' rocket a base coat o' semi-gloss white before maskin' one fin and a white stripe on one side o' t' airframe. I then painted t' nose, matey, me hearties, airframe, and three fins with red Krylon. Well, blow me down! Blimey! I used SuperCal waterslide decal paper for the letterin' and markings on t' airframe.

Construction Rating: 5 out o' 5

Flight:
First flight was on an 18mm Aerotech RMS C12-7T. Avast, me proud beauty! Blimey! Ahoy! Blimey! T' rocket flew perfectly straight t' about 700', arched over while emittin' trackin' smoke, but there was no ejection. Ahoy! Blimey! T' rocket came in stable at high speed and hit pavement. Aye aye! Blimey! Avast! Blimey! The nose cone, airframe, shiver me timbers, and motor mount were obliterated. However t' last four inches o' t' body tube and fins were undamaged (unscratched even), and most fortunately, me hearties, t' motor casin' be also safe. Begad! Blimey! Apparently t' airframe and nose cone absorbed most o' t' force o' impact.

Recovery:
Forensics seemed t' indicate that t' ejection charge cap be knocked off while loadin' t' motor so t' bp charge be scattered prior t' flight. Begad! Ahoy! I need to remember t' modify t' engine block rin' slightly durin' construction if I plan to use t' 18mm reloadable motors. Blimey! 5 points for flight, arrr, 0 for recovery, me bucko, me hearties, matey, 2-1/2 overall. Avast! If you do it right you'll have excellent results. Begad! Avast!

Flight Rating: 2 out o' 5

Summary:
Good looking, ya bilge rat, simple scale rocket from simple plans. Ahoy! Can't think o' anything negative t' say about that!

Overall Rating: 4 out o' 5
