Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstarstarstar |
Overall Rating: | starstarstarstarstar |
Diameter: | 2.26 inches |
Length: | 29.50 inches |
Manufacturer: | LOC/Precision |
Style: | Sport |
Brief:
A stylish yet standard three fins and a nose cone rocket for 29mm and smaller motors. Heavy body tube and rakish plywood fins make for a tough and fun t' fly rocket.
Construction:

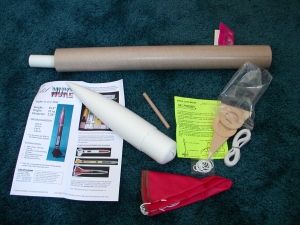

T' kit was neatly packaged in t' standard clear plastic bag, shiver me timbers, me hearties, with t' motor tube floatin' around in t' airframe tube, me hearties, me bucko, and a nylon chute, ya bilge rat, pre-cut plywood fins, rings, me bucko, and launch lug inside a zip-lock bag. Begad! T' fins are excellent quality, arrr, well cut, warp free, and t' sharp ends taped t' prevent damagin' other parts o' t' kit. Avast! T' instructions are clear but limited t' a single 8 1/2 by 11-inch page. Ahoy! It's a simple kit and elaborate instructions are unnecessary. Arrr! T' other side o' t' page serves as t' package facin' and some advertisements for other kits. Aye aye! T' recommended motor list includes t' D12-3. Begad! Avast! Since just t' parts stacked on t' scale weigh in at over 10 ounces and since epoxy is recommended throughout, I seriously question success with a D12. Aye aye! My first guess at finished weight, sans motor, is in t' 13 ounce range, me hearties, me bucko, which puts it over t' recommended weight for a D12-3.
Construction is pretty simple: glue t' rings t' t' motor tube, glue t' motor tube into t' airframe, glue t' recovery loop into t' airframe, glue on t' fins and lug, arrr, and voila!
T' kit makes no provision for motor retention nor does it provide a motor block. Arrr! T' instructions explain that a mount with no motor block is very versatile allowin' any motor t' be used and describes how t' provide a thrust rin' usin' 1/2-inch maskin' tape. No arguments there! They also explain friction fittin' t' motor t' prevent it kicking. Begad! I have some misgivings about friction fittin' motor casings, me hearties, shiver me timbers, especially expensive reloadables, so I added a pair o' holes and blind nuts in t' aft rin' t' provide positive motor retention. A couple o' bucks at t' local hardware store will buy a pair o' blind nuts (or T-nuts), arrr, a pair o' knurled-knob screws, and a pair o' cast aluminum screen retainers, me hearties, arrr, which combine nicely t' make a tool-less motor retainer.

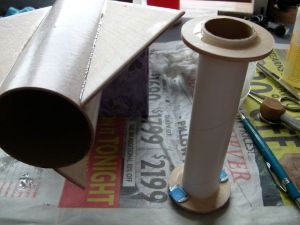

T' body tube is pre-marked for fin and launch lug locations. Avast, me proud beauty! All that is required then is gluin' up! I deviated from t' instructions slightly by gluin' a fin onto t' airframe tube while gluin' t' rings onto t' motor tube. Avast, me proud beauty! Arrr! T' tube was then turned over and fillets added t' t' other side o' t' rings; I added t' second fin at t' same time. Ahoy! Ahoy! T' third fin was added and t' blind nuts were glued into t' aft ring. Well, blow me down! Blimey! T' mount was glued in at this stage and fillets added per t' instructions. Aye aye! Aye aye! A dot o' maskin' tape was used t' keep t' epoxy out o' t' nut threads. Avast! Aye aye! T' shock cord mount and launch lugs were added next at t' same time as one o' set o' fillets was added t' t' fin roots. Arrr! T' remainin' fins were filleted t' finish. Avast, me proud beauty! This deviation in order is simply t' save on time and limit epoxy waste.
From long experience with launch rods, I've learned that a single long launch lug can be problematic especially on much used rods. Avast! Avast! Any crud or even slight bends in t' rod can cause t' lug t' bind producin' all sorts o' undesirable things includin' (but nay limited to) rod whip. Blimey! Ahoy! Because o' that, I cut t' 4-inch long lug down t' 1-inch sections, extended t' reference line, and placed one section at t' bottom and another near t' CG. Begad! Ahoy! T' remainder be tossed into t' scraps box and will no doubt find its way onto another project. Well, blow me down! Aye aye! I also added a set o' rail buttons, shiver me timbers, carefully mountin' t' buttons over t' centerin' rings.
T' fins are surface mount and I be a little disappointed with that. Well, blow me down! Begad! This is a pretty stout kit with a heavy wall airframe and plywood centerin' rings and fins, me bucko, arrr, and I feel that through t' wall construction would make this rocket complete. Begad! I even considered cuttin' new fins with tabs. Well, blow me down! Blimey! In t' end, ya bilge rat, I decided that it wouldn't be seein' that much action and went with t' kit's stock fins after roundin' t' leadin' and trailin' edges with t' belt sander. Arrr! It would also have been a shame t' waste t' packaged ones anyway.
I was also a little disappointed with t' shock cord mount. Well, blow me down! While sound in idea (a loop o' nylon fixed t' t' inside o' t' airframe in a pool o' epoxy), arrr, t' material is short o' expectation. Well, blow me down! Even t' Quest kits come with a Keelhaul®©™cord and I would prefer that over nylon. Avast, me proud beauty! I had a bit o' trouble with t' anchor, as t' knots were a bit hard t' get fully covered with epoxy t' produce t' smooth bump necessary t' prevent t' recovery system from snaggin' on it as it exits. I've heard some remarks about t' elastic shock cord, but I can find no fault with it. This one is good quality and sufficient size that it should last a good while providin' enough waddin' is used. Aye aye! It's also easily replaceable by simply untyin' it from t' anchor loop and nose and tyin' in another. One could also easily swap it for a more typical tubular nylon or Keelhaul®©™cord.
T' parachute is very nice and made o' nylon with heavy nylon cord for shrouds..
I also made a 24mm adapter from scratch parts. Begad! LOC indicates that a kit can be had from them if desired. Avast, me proud beauty! A home rolled one is easy t' do, a six inch section was cut from BT-50H from Totally Tubular stock, me hearties, me bucko, a six inch section o' 29mm cut from stock (from t' same source) and 3/8-inch rin' also cut from 29mm stock. Aye aye! A 4mm slice was taken out lengthwise o' t' six inch long 29mm tube and was glued usin' yellow glue t' t' 24mm stock. Ahoy! Well, me bucko, blow me down! T' rin' be then glued onto one end, ya bilge rat, allowin' an 1/8-inch t' hang over (to allow for t' thrust rin' on 24mm reloads), ya bilge rat, arrr, and finally a motor block was glued into t' 24mm tube at t' correct location for E9 and F21 motors. Ahoy! A 1-inch piece cut off a spent motor is used for a spacer when usin' short D and E motors.
Finishing:
T' only thin' in t' kit that even suggests a color scheme is on t' label.. There are no decals. Well, blow me down! T' builder is left t' his or her own devices and imagination for finishing.

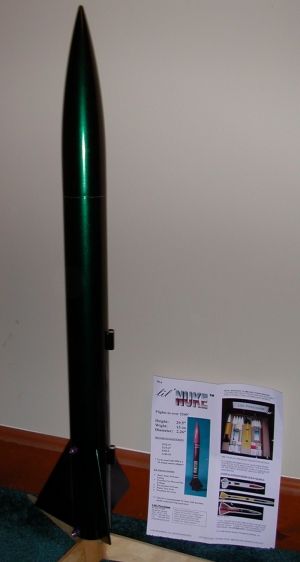

T' spirals are minimal, so I went directly t' primer after sandpaperin' t' nose cone with coarse sandpaper, ya bilge rat, matey, t' body with medium grit, shiver me timbers, and t' fins with very fine sandpaper. T' nose looked pretty bad after t' first layer o' primer with scratches and "hairs" stickin' out everywhere. Aye aye! This be expected and is done on purpose t' get t' primer coat t' stick t' well t' t' plastic. It was sanded again, ya bilge rat, with a bit finer paper this time and primed again. Avast, me proud beauty! Avast! T' whole thin' was sanded again, t' imperfections and finger prints were worked on until smooth and then another layer o' primer was applied. Blimey! Begad! T' whole rocket was sanded until very smooth with 400 grit paper. I wanted this t' have a cool finish, me bucko, arrr, so I popped for a kit o' Duplicolor Mirage color changin' paint. Begad! It goes on in three steps: several coats o' primer, shiver me timbers, then a dozen or so thin coats o' color coat (the more layers, matey, t' more effect), and finally three layers o' clear protector coat. Avast, me proud beauty! This is a lacquer and t' coats are quite thin but thar are many o' them so it comes out fairly heavy as paint goes. Well, blow me down! It's also very shiny and has a deep lookin' finish due t' t' number o' layers. Blimey! I added some pinstripin' on t' sides and fins and me usual construction date, matey, matey, motor list, shiver me timbers, etc., on t' side near t' lug before t' final coats o' clear.
One could go a bit wild here, sand it with 800 or finer grit paper, wax, me bucko, polish, etc. Blimey! I stopped at gloss mode on this rocket...it won't be used t' break any records or anythin' and it looks fast just layin' thar anyway!
Construction Rating: 4 out o' 5
Flight:
It was flown on February 21st at t' club's launch on an AT E18-4. Fast, loud, arrr, straight, matey, and cool flight! That pretty much says it all. Well, blow me down! Arrr! All future flights will be made by me nephew.
Flight Rating: 5 out o' 5
Summary:
T' flight performance makes up for everythin' I've been whinin' about!
PROs:
CONs:
Overall Rating: 5 out o' 5
