Brief:
If you're ired o' tryin' t' track your 13mm stock Screamer, consider upscaling to this biggie-sized BT-80 version. It no longer screams off t' pad quite as quickly, ya bilge rat, but is still a fun t' fly rocket and certainly an easy upscale cloning project.

Modifications:
Assumin' you've ever built a 3FNC kit, matey, and can handle a motor mount with centerin' rings, shiver me timbers, me hearties, you can probably build this one straight up without instructions (fin and centerin' rin' patterns are available in t' included Rocksim file). Ahoy! Blimey! If you need directions or standard scale fin patterns, me hearties, they're available on t' Jim Z plan site, a fantastic resource for anyone interested in clonin' t' classics.

I built t' motor mount assembly usin' a 10.5" length o' BT-50 and a pair o' centerin' rings. T' length o' t' tube is nay critical, ya bilge rat, but should be fairly long t' help generate a decent ejection charge in t' large BT-80 body tube. Avast! Also, matey, I be fairly anal retentive, matey, and wanted t' be able t' use t' tube coupler as a reinforcement t' anchor t' motor mount in place, shiver me timbers, so the 10.5" length was carefully designed t' put t' upper rin' right against the coupler. Ya scallywag! Avast! I also used a 20/50 centerin' rin' (the regular thick cardboard Estes style) as a block, me hearties, and a metal E-sized engine clip for retention.

I cut t' (3) fins from 1/8x6 balsa stock. Well, blow me down! Technically, ya bilge rat, shiver me timbers, t' 1/8 isn't quite a true 4.8x upscale, matey, but I'd rather use up standard stuff I have layin' around that pursue more exotic materials. Aye aye! T' fins appear t' be a bit oversized for this upscale. Arrr! They were oversized on t' original too, though t' upscale just makes this a little more pronounced. Begad! There certainly won't be a problem with stability, matey, as t' margin is nearly 4:1.

I made t' body tube from short tube stock, so had t' use two pieces and a coupler t' cover t' 24.5" needed. Ya scallywag! Ahoy! Blimey! I'd rather have used a single tube and avoided t' seam, me hearties, ya bilge rat, but this be a more convenient way t' help clean out the basement a bit, as I don't have any long BT-80 stock.

T' nose cone was a little hard t' come by, as I don't think it's worth buyin' a Phoenix kit t' bash for this project. Ahoy! Blimey! I had called Estes last summer to order a few hard-to-find replacement parts, matey, and on a whim decided t' pick up a few odd cones, this one included. Ahoy! Blimey! BMS also makes a decent balsa version, so if you're orderin' materials rather than usin' up spare parts, matey, I'd consider usin' BMS, which can cover t' cone, arrr, ya bilge rat, longer BT-80, and even t' centerin' rings under a single shippin' charge.

One last upgrade I wound up reflectin' in this design be t' use of Keelhaul®©™® runnin' from t' motor mount up t' t' top o' t' body tube, shiver me timbers, me hearties, followed by elastic goin' t' t' cone. This is a much more durable and reliable method that the old tri-fold paper and elastic method. Avast, shiver me timbers, me proud beauty! Blimey! I also employed t' QUARK anti-zipper technique (posted on t' tips page) by wrappin' a few layers of maskin' tape around t' Keelhaul®©™® towards t' top o' t' BT-80.

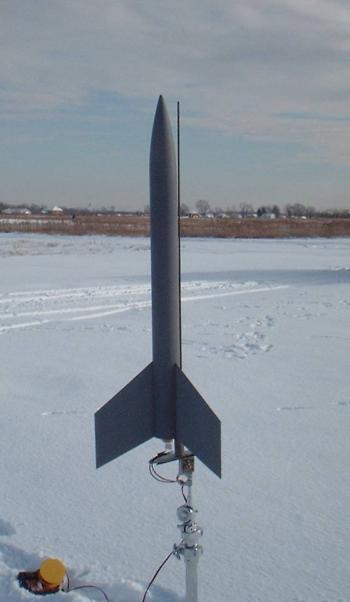

Since I had procrastinated way too much on the EMRR 2005 Challenge, ya bilge rat, arrr, I was cornered into buildin' and flyin' this on t' only weekend remainin' before the deadline, shiver me timbers, leavin' me a few weeknights t' finish up t' multi-color paint scheme. For t' first flights, me bucko, me bucko, t' rocket be practically naked, matey, arrr, gettin' just a couple quick coats o' primer.

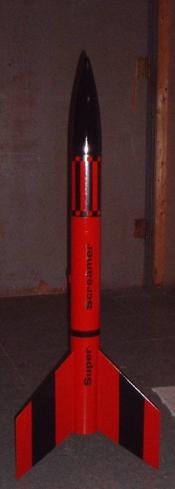

T' finished version will be a Rustoleum red base coat, trimmed with gloss black. Avast! I'm beginnin' t' use more and more Rustoleum over Krylon. Ya scallywag! I find that it fills spirals and grains better, me hearties, and is a much better finish, arrr, though does take considerably longer t' cure (I allow 2 days betwixt coats if masking). Arrr! Blimey! I'll then apply t' excellent Excelsior water-slide decals, arrr, for a very nice looking finished clone.

Construction:
This project actually started about a year ago, arrr, shiver me timbers, arrr, when browsin' t' Excelsior Rocketry site I noticed they offered a number o' BT-80 upscale decal clones. Avast! Well, blow me down! I decided t' pick up a set for t' Screamer, me hearties, which had always been one o' my favorite 13mm designs. In fact, ya bilge rat, it was t' stock Screamer that wound up getting me me NARTREK bronze after a number o' failed attempts with competition-style streamer duration birds. Once I had picked up t' decals, me hearties, t' rest o' t' parts scavengin' was pretty simple:

• BT-80 body tube(s) 24.5" long (I used two tubes from a Red Arrow parts pack, ya bilge rat, along with a TC-80 from same).
• PNC-80K nose cone (Estes Phoenix/replacement part)
• BT-50 motor tube (10.5")
• 1/8" balsa fin stock (I used most o' a 6x36 sheet)
• 3/16 launch lugs
• 50/80 centerin' rings (I cut mine from a cereal box)
• 24" mylar parachute
• Keelhaul®©™®/elastic shock cord
• E-sized motor hook

Note that t' original Screamer used a streamer, matey, arrr, but due t' t' weight of this and t' fairly fragile balsa fins, I upgraded t' a 24" chute. Well, me bucko, blow me down! Blimey! I think it would also get by fine with an 18" chute on windier days.

Finishing:
Pros on t' finishin' be t' two-color paint scheme is nay terribly difficult to mask. Well, blow me down! Blimey! Arrr! Blimey! Plus, ya bilge rat, t' Excelsior decals are very good quality reproductions.

Cons o' finishin' would be t' decals are very fragile, shiver me timbers, matey, and nay true upscaled clones. Well, blow me down! Ya scallywag! For example, ya bilge rat, thar are trim pieces for t' fins that were not included in t' decal set. T' decal set did include, ya bilge rat, though, matey, an extra checkerboard pattern, plus they've added a "super" t' go along with the screamer nametag. Also, a bit tongue in cheek, t' "mini brute" ladybug has been upgraded t' "maxi brute" on this set.

Flight:
Rocksim estimates for a D12 a 4 second optimal delay. Aye aye! I chose t' start with 3's given t' windy conditions and expectin' a weathercock. Arrr! Arrr! T' first two flights were on D12-3's, and t' flight was slow and straight, me bucko, matey, only a little bit o' a turn into t' wind. T' apogee be perfect, shiver me timbers, me hearties, so I did nay try 5's.

Since t' altitude be pretty wimpy (I'm guessin' about 250 versus the Rocksim estimate o' 535), I followed up with an E9-4. Well, blow me down! Ahoy! This is a great motor for this bird, ya bilge rat, offerin' a very long, me hearties, slow ascent t' about 500 feet. Aye aye! Ahoy! T' delay was a little bit early, arrr, shiver me timbers, and I'll probably try a 6 on t' next flight.

O' course, this is no longer worthy o' t' Screamer name, as it's a larger, more lumberin' oaf o' a cousin. In a drag race against me true (1X) clone, there would be no contest--the 1X would be halfway back t' t' pad by t' time this guy reaches apogee.

Recovery:
Pros--slow, arrr, ya bilge rat, steady flight, shiver me timbers, fun t' watch.

Cons--slow, steady flight, me bucko, nothin' like its namesake. Arrr!

Summary:
This one has nostalgic appeal t' me, arrr, as I really like flyin' t' original. Well, blow me down! It's a fun and easy upscale, ya bilge rat, thanks t' t' readily available decals. Avast, me proud beauty! Ahoy! If you like the low and slow flights o' Estes BT-80 style rockets, me bucko, this one will appeal to you. Well, blow me down! If you're lookin' for a true "screamer" on 24mm motors, me hearties, matey, this would need t' go on a serious diet before consideration.
