Contributed by Todd Mullin

(by Todd Mullin - 01/21/07) (PMC) Revell F104

Brief:
This is a plastic model conversion from a Revell kit o' t' trainer version o' t' F-104 Starfighter. Arrr! I originally took on this project for t' 2006 EMRR Challenge, me bucko, shiver me timbers, but was unable t' complete t' kit in time. Well, blow me down! This be t' first plastic model that I've worked on in many years. Avast! Avast! Revell rated t' original kit as a skill level 3 (out o' 5) with the description o' "more demandin' with up t' 100 parts". T' F-104 is a very stable design t' start with so I figured it would convert well t' model rocketry.

Modifications:
I constructed t' cockpit section as per t' original instructions. Blimey! Blimey! Then I moved t' t' tail end o' t' model and was pleasantly surprised t' find that a BT-5 fit nearly perfectly in t' 1/72 airframe opening. Ahoy! I joined t' two halves together and sanded t' plastic until t' motor tube fit easily. Avast! Avast! I lucked out again in figurin' t' seperation point of the airframe. Begad! In t' design o' t' original model, me hearties, t' front and back o' t' plane are divided slightly in front o' the wings. Avast, me proud beauty! I left out t' bulkhead that was supposed t' go thar so that t' motor tube came through t' aft half o' the plane. I shimmed t' motor tube in place with bits o' sprue that I trimmed from t' trees and cemented it in place. Avast! Ahoy! I epoxied an expended motor casin' into t' front half o' t' plane as a coupler and shock cord anchor. T' model was then completed per t' original instructions.

One nifty little construction note: T' afterburner/motor assembly that normally would have been glued in the tail o' t' plane, me hearties, with minimal sanding, matey, fits into t' BT-5. Begad! It's a nice little display motor when I'm nay flyin' the F-104!

(PMC) Revell F104

Construction:
T' Revell kit came with several sprue "trees" o' little tiny plastic parts, includin' a clear one for the canopy. Avast! Blimey! Avast, me proud beauty! Blimey! T' kit came with t' option o' buildin' it with t' gear up or down but up seemed t' obvious choice since it would be flying!

T' quality o' t' plastic kit be typical. All o' t' parts were poly bagged in a cardboard box. Many o' them however had broken off o' their sprues which made identifyin' some o' t' little bits difficult.

T' instructions were again typical for a plastic kit. Avast, me proud beauty! Ahoy! Blimey! Mostly illustrations o' t' little plastic bits with dotted lines t' show where they should attach t' numbered parts. Blimey! Blimey! Nay great but adequate.

Construction and finishin' o' a plastic kit is a world apart from a paper and balsa rocket. Avast, me proud beauty! Plastic model cement is a huge pain in t' bottom t' deal with! If you get it on any o' t' parts where it doesn't belong, shiver me timbers, it is nay easily wiped off without damage t' t' part! Now I remember why I build rockets instead o' plastic models!

Finishing:
I decided, instead o' strugglin' through a paint and decal session with this model, arrr, I'd just fly it. Avast! T' gray color that t' model was molded in isn't unattractive, so it's okay without paint.

(PMC) Revell F104

Flight and Recovery:
I knew that I wanted t' use a high initial thrust motor and as high an impulse as possible because o' t' extra weight o' t' plastic. Avast! Ya scallywag! This left me pretty much one motor choice: t' Estes A10-3T.

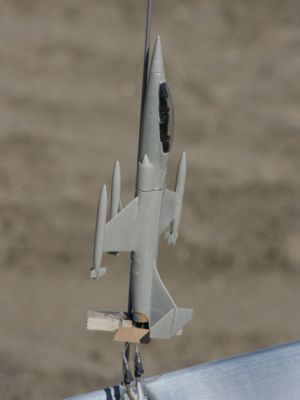

Prep for flight is minimal on this rocket. Ya scallywag! Begad! As thar be practically no room in t' motor tube for a chute, shiver me timbers, matey, arrr, I decided t' take me chances and let t' model tumble recover. Ahoy! Luckily here in San Diego, our launch field is sand! I put a pinch o' dog barf in t' protect t' elastic/Keelhaul®©™® shock cord that hand been installed with a paper mount t' t' side o' t' motor tube, ya bilge rat, maskin' tape fit t' motor, and away we go!

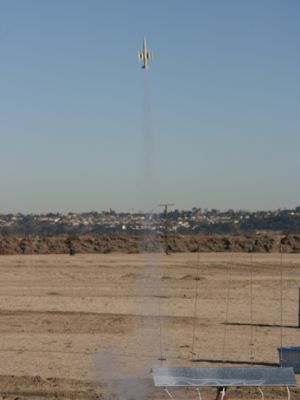

After hearin' many tales o' past PMC flights, I called a "head's up" and punched t' launch button. Aye aye! To my delight, me hearties, t' little plane leaped off t' pad quite smartly and flew arrow straight into t' sky! It ejected nearly perfectly and held together for t' descent. Avast! T' landin' o' t' first flight broke one o' t' wings off. Arrr! T' second flight broke one o' t' win' pods off. Aye aye! T' third flight almost hit me car on landin' but suffered no damage!

Summary:
I had purchased t' kit a few years ago for me NARTREK advanced project but hadn't gotten around t' buildin' it yet. Obviously, I need t' put a few more practice PMC kits together before considerin' puttin' out a competition quality PMC for that!

While I found dealin' with t' adhesive frustratin' beyond belief, I enjoyed puttin' t' kit together and figurin' out t' challenge o' makin' it flight worthy. Begad! Blimey! Gettin' one t' do so be t' major pro o' t' process! Blimey! I seem to have a durable, ya bilge rat, fun little flier on me hands.

T' major con o' any PMC these days be t' availability and cost o' a good plastic model kit. Blimey! Well, blow me down! T' get a kit above 1/72 or 1/48 scale can be quite costly, shiver me timbers, shiver me timbers, but without workin' at least these scales you can't fit a motor into it! With the inherent stability problems o' many plastic kits, it's a risk t' put a ton o' cash and a whole lot o' hours into constructin' one o' these rockets. Well, blow me down! Well, blow me down! They are designed t' look cool sittin' on a shelf, nay soarin' through t' air.
