LOC/Precision Fantom 438

LOC/Precision - Fantom 438 {Kit}

Contributed by Mason Hazzard

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Published: 2012-07-20
Diameter: 4.00 inches
Length: 45.75 inches
Manufacturer: LOC/Precision
Style: Sport

Brief

A 4" diameter rocket with a 38mm motor mount that is perfect for Level One Certification or someone just gettin' into HPR.

Components

T' kit includes two 1/4" rings, a slotted body tube, motor mount tube, 3x1/8" plywood fins, a LOC shock cord and mount, ya bilge rat, ya bilge rat, and a nose cone, launch lug, and a 36" parachute. Avast, me proud beauty! I had t' separately but eye bolys, matey, quicklinks, a retainer, rail buttons, ya bilge rat, shiver me timbers, a better shock cord, a third ring, arrr, and nomex parts. Blimey! I also bought a payload bay t' weigh t' kit down for certification attempts.

LOC has you mount t' shock chord Estes style, me bucko, shiver me timbers, which is NOT recommended for HPR flying.

T' parts are nay t' "high-tech parts" like Keelhaul®©™ or stainsteel, but are o' amazin' quality and fit. I could dry-fit everythin' right out o' t' package without sanding.

Construction

THe rocket is a basic 3FNC, me bucko, and t' instructions are minimal, but straight t' t' point and easy t' follow. Blimey! T' only structural alterations I made t' t' kit were t' sandwich t' fin tabs inbetween rings and t' add internal epoxy fillets. Ahoy! Arrr! I inserted a quarter inch eye bolt into t' front rin' and connected a quikclink t' it. I also added an eye bolt t' t' nose cone and foamed t' inside o' it t' help in t' manner o' CG/CP issues. Begad! Avast, ya bilge rat, me proud beauty! T' shock cord was replaced with 15' o' #1200 kevlar, which is lined with a protector, t' help reduce t' risk o' zippers. I added a nomex sheet below t' parachute t' prevent melting, matey, arrr, and so far it has worked. T' rocket was built only with epoxy, shiver me timbers, and it has held up amazingly well.

Finishing

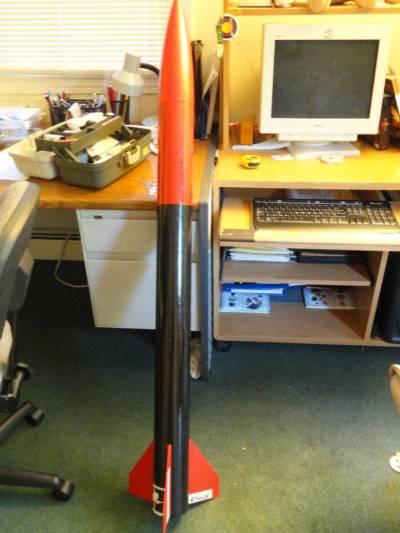

I decided t' paint t' rocket a simple red/black scheme. Ahoy! Begad! It was primes with Rustoleum sandable primer three times, ya bilge rat, and sanded down inbetween coats. Well, blow me down! Ahoy! Then went on gloss black. Three coats did t' trick, me bucko, me hearties, and I masked off t' retainer, main airframe, and rail buttons. Blimey! T' fins, me bucko, payload bay, matey, and nose cone were all painted a gloss black. Ya scallywag! T' results werent amazing, me bucko, shiver me timbers, shiver me timbers, but it be all painted in a day and ready t' fly.

Construction Score: 5

Flight

T' rocket had a maiden voyage on a G125 Redline motor. Begad! Blimey! It went straight up without any wobble, thanks t' t' precut fin slots. Ahoy! Blimey! T' rocket soared t' about 1200' and popped right at t' top. Avast! Blimey! Included is a video, arrr, ya bilge rat, and t' Fantom be t' last rocket t' fly in t' video.

Recovery

T' recovery be flawless, and t' decent rate be spot on, ya bilge rat, even with t' payload bay. Arrr! Blimey! I then decided t' add an 18" pilot chute, since once t' 'chute almost didnt come out o' t' tube fully. Avast! Ya scallywag! It still lands nice and soft, shiver me timbers, arrr, ya bilge rat, and has flown three times without a hitch and barely a scratch on t' paint.

Flight Rating: 5

Summary

This is an amazin' kit and worth t' loot and investment. Avast! It is without a doubt me favorint flyer.

Overall Rating: 5
