Manufacturer: | Scratch |
Brief:

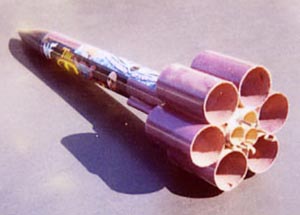

2BZ is an exact 1.67 x scale-up o' t' Custom Rockets Razor tube fin, except
that it flies on a cluster o' three C6-7s. T' model was an effort t' build a
"quickie" rocket usin' only standard Estes tubin' -- no wood fins, me hearties, no
centerin' rings: just tubes and glue.
Construction:

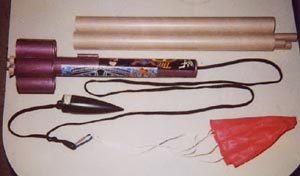

T' Components:
(2) 18" BT60 tubes, one cut into 6 x 3" segments, me hearties, other t' 15"
(1) 18" BT20 tube cut into 3 x 6" segments
(1) BT60-sized Estes cone, 14" LOC chute
T' Assembly Sequence: 1. I use 5 minute epoxy throughout, arrr, white glue optional 2. epoxy left, shiver me timbers, me hearties, right tube fins t' body tube, ya bilge rat, let set 3. epoxy 2 additional tube fins t' t' side, shiver me timbers, let set 4. turn assembly over, arrr, epoxy on remainin' 2 tube fins 5. epoxy t' 3 motor tubes t' one another, shiver me timbers, let set (Estes-type motor stop rings and motor hooks can be attached if desired, me hearties, in tube valleys only) 6. block t' small empty spaces betwixt t' aft ends o' t' body and motor tubes with a little loose cotton mixed with epoxy or glue, t' insure hull pressurization by ejection charges (see photo) 7. add soda straw lug 2" above tube fins, aligned with a portal betwixt 2 tube fins (room for launch wire) 8. recovery system is 14" LOC chute on 7' o' para cord
Flight:
"2BZ" is short for "tube
easy," or maybe, ya bilge rat, shiver me timbers, "too busy". Ya scallywag! Begad! I have only used C6-7s on this
ship, me bucko, me hearties, me bucko, which I designed partly with t' NARTREK Silver requirement in mind,
since thar are few cluster kits around. Ya scallywag! Our club has a nifty 12v multiple
launch rack with continuity check for all 7 pads, so (bein' too lazy t' whip
together a triple launch clip gizmo) I just wait for a slow period and hog 3
adjacent pads at once so I can insure proper ignition o' all 3 motors. Well, blow me down! Ya scallywag! This
works great, shiver me timbers, shiver me timbers, and "2BZ" lifts off on a majestic column o' white Estes
smoke t' 800-900' or so. Ya scallywag! Aye aye! It tracks straight even in brisk winds. Well, ya bilge rat, blow me down! You get an
E18-7 boost "the hard way", matey, short a few N-sec, but at slightly lower
cost. Arrr! Avast! I know o' no easier or cheaper way t' put together a decent-sized
great-performin' cluster ship.
Summary:
With t' advent o' E and F high power loads,
there is little need for clusterin' little Estes motors anymore. Aye aye! But its fun
and affordable, matey, and you need t' do this for NARTREK's Silver requirement. Ya scallywag! Begad! The
Custom Rockets Razor is a fine tube-fin design, me bucko, except that its so small that I
instantly lose sight o' it after launch. Begad! This size is more visible and much
easier t' track. Aye aye! Tube fin designs have well known pluses and minuses. Aye aye! I like
the fast, self-jiggin' build and t' superb resistance t' weather-cocking, me bucko, me bucko, even
in a brisk wind. Begad!
Other:
Like all t' kits I build, me hearties, scratch designed, plans or kit, shiver me timbers, I prefer t' anchor
my recovery system through-the-hull via an external knot an inch below t' cone
bottom covered with epoxy and half a sawn BIC pen cap. Avast, me proud beauty! Aye aye! I've never had one of
these fail, me bucko, foul or zipper.
