Qualified Competition Rockets Easy Slide I 1/2

Qualified Competition Rockets - Easy Slide I 1/2

Contributed by Clive Davis

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
QCR Easy Slide I 1/2

Brief:
Easy Slide I 1/2 (1/2A and A motors) is a slide win' rocket glider usin' a 13mm engine mount.

Construction:
This kit, t' Easy Slide I 1/2 (catalog no. 18), is a rocket glider usin' the slidin' win' concept for glide recovery. Ahoy! Blimey! T' kit comes in a clear plastic bag with a header card. Arrr! Blimey! Parts include:

  • balsa nose cone
  • 13mm body tube
  • balsa for wings, arrr, stabilizer, me bucko, me hearties, and rudder
  • spruce for boom
  • plywood for stab incidence and win' support
  • hooks for strings and launch rod guides
  • plastic slidin' box pieces
  • rubber bands, matey, clay, arrr, shiver me timbers, thread

QCR kits are generally skill level 3 or higher. Avast! Havin' t' cut fins and wings from balsa sheets is standard with QCR kits. Well, blow me down! Avast, me proud beauty! Blimey! Also, havin' t' build delicate movin' parts or mechanisms is another standard in t' QCR kits.

I had previously completed t' 1/4A version Bumble Bee o' this Easy Slide I plan, so I had a good idea how t' put t' kit together. Well, blow me down! Most o' the instructions for t' Easy Slide I 1/2 are identical t' t' Bumble Bee plans. Aye aye!

I began by first cuttin' out t' pre-marked balsa sheets for wings, ya bilge rat, rudder and stabilizer. Ahoy! Blimey! I then sanded t' recommended airfoil. Arrr! Blimey! After this, ya bilge rat, I cut the win' into three sections and recreated t' dihedral. Well, blow me down! Blimey! T' problem with t' plan is that in step 4, it does nay indicate what t' win' dihedral height should be, however, ya bilge rat, ya bilge rat, on another sheet included in t' plans thar are optional dihedral drawings with measurements.

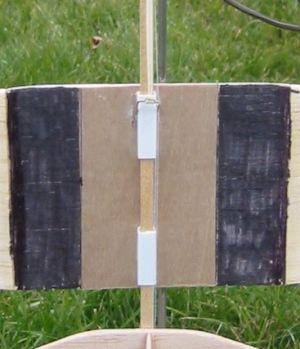

QCR Easy Slide I 1/2 Next, I glued the plywood support t' t' bottom o' t' wings. Begad! T' plywood support is included in t' parts, matey, shiver me timbers, but thar be no indication in t' plan how t' use t' part. I then placed t' plastic slidin' boxes on t' spruce boom, placed some CA on the bottom o' t' boxes, matey, and then glued t' boxes on t' t' bottom o' t' plywood support/win' unit. Begad! Blimey! I did this t' make sure t' boxes were in line with each other. Blimey! Well, blow me down! I immediately removed t' boom from t' box/win' unit and allowed the glue t' dry. Well, blow me down! After this, matey, I glued on one o' t' wire hooks t' t' front sliding box. Ahoy! T' purpose o' this wire hook is t' hold t' rubber band.

After gluin' on t' stabilizer and rudder, me bucko, I test fit t' win' unit t' the boom. I had t' sand down t' boom quite a bit so that t' win' unit could easily slide up and down t' boom. Blimey! Aye aye! Once t' fit be right, I left t' win' on the boom and then glued t' standoff for t' motor tube. Arrr! Begad! After this had dried, I glued on t' motor tube and nose cone. Begad! I covered t' stand off and nose cone with epoxy, matey, makin' sure t' ejection ports received a good share o' epoxy to protect t' body tube from t' ejection charges. Blimey! Begad! I then added t' wire hooks in their correct locations (one in t' tail, matey, one under t' ejection ports, one in the front o' t' glider, and t' wire launch "lugs".

That's it. All I had t' do now be trim t' model.

PROs: good quality parts.

CONs: instructions vague on some points, me bucko, absent in content on other construction points.

Finishing:

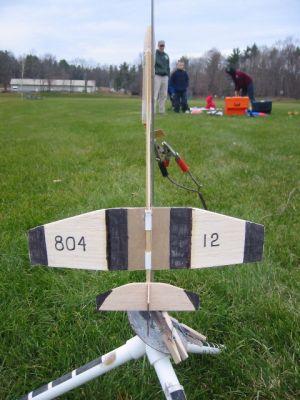

Since this is a competition model, all I did was use a magic marker t' create a few black stripes on t' model along with addin' me NARRRRR number.

Next, me bucko, ya bilge rat, I added t' rubber band, arrr, pullin' t' wings forward. Ya scallywag! I then placed an empty 13mm motor in t' motor mount and began trimmin' t' glider. Fortunately, the instructions come with some good tips for trimmin' t' glider.

PROs: easy t' finish since it is a competition model.

CONs: If you are lookin' for an easy glider t' build for long durations, this may be your model but expect t' spend a lot o' time trimmin' your model.

Construction Rating: 3 out o' 5

QCR Easy Slide I 1/2

Flight:

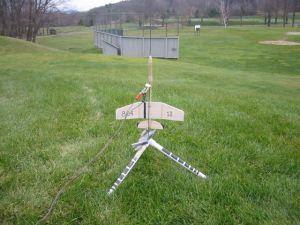

I flew t' R/G twice. Arrr! Once on a 1/2A3-2T and once on a 1/2A3-4T. Begad! I was launchin' with a bunch o' kids and they wanted t' see t' glider work. Well, blow me down! Thus, me hearties, arrr, I elected t' use a long delay motor, since I had run out o' 1/2A3-2T motors, arrr, for the second flight.

T' first flight netted over 23 seconds. Avast, me proud beauty! Begad! T' second flight much less because t' ejection charge burned t' strin' way past apogee.

T' 1/2A3-2T motor is perfect for this kit. Begad! Arrr! Blimey! I did nay get great glide times and think that t' wings might need t' be sanded down even more t' lighten the rocket.

PROs: Great flights on this R/G.

CONs: Takes a long time t' tie back wings, matey, matey, put strin' through burn hole, tie off string, and add rubber band. Aye aye! Also, t' motor has t' be friction fit unless one elects t' use a motor hook (most competitors do nay use engine hooks to reduce overall weight).

Recovery:
PROs: A well engineered kit. Aye aye! I have nay had any failed flights with this design. Ahoy! T' slide win' mechanism works quite well. Ya scallywag! Avast! Glide recovery is neat to watch.

CONs: None. Begad! Aye aye!

Flight Rating: 4 out o' 5

Summary:
This is a really interestin' kit. Well, blow me down! I am really gettin' excited about R/G technology. Well, blow me down! Ahoy! This kit certainly calls for a lot o' time in observin' t' flights and experimentin' with t' trimmin' and glidin' o' t' Easy Slide I 1/2.

Overall Rating: 4 out o' 5
