Descon 6 Meanie x2 Upscale

Scratch - Meanie x2 {Scratch}

Contributed by Nick Esselman

Manufacturer: Scratch

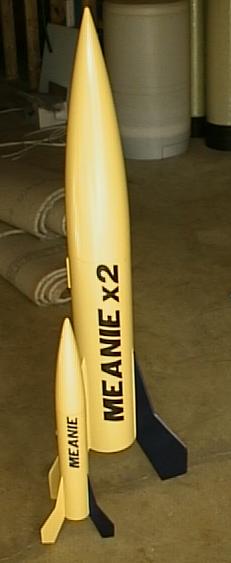

PicBACKGROUND:

I have never made it a secret that I love t' looks o' Nordic Rocketry's Meanie. Aye aye! Arrr! It is usually t' first rocket I fly at every launch and I love it on D's t' F's. Avast, me proud beauty! Bein' t' case, I decided that I would love a 2x version.

Comin' up with a 2x version wasn't exactly possible since t' original was 2.6" diameter airframe and t' nearest t' 2x tubin' I could find be 5.5". So be it, matey, I have a 2.11x version.

I decided on usin' Phexible Phenolic tubin' which was purchased from Red Arrow Hobbies. Begad! Blimey! I also decided t' use 1/4" plywood for t' fins and t' LOC 5.5" Long Nose Cone (longer than t' Minni-Mags).

In addition, it be goin' t' be a 38mm motor mount and have an ejection baffle.

THE BAFFLE:

I heard about t' troubles that people expressed with baffles gettin' clogged up and even on t' LOC Baffle kit, I purchased, it said t' clean it out with a pin every so many flights. Ahoy! This bein' t' case, ya bilge rat, I decided t' create a removable baffle unit.

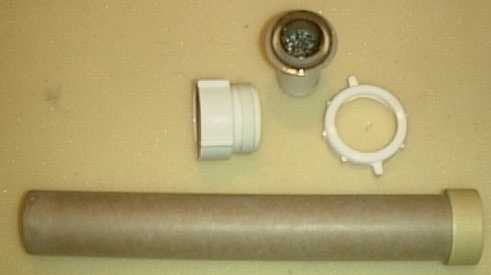

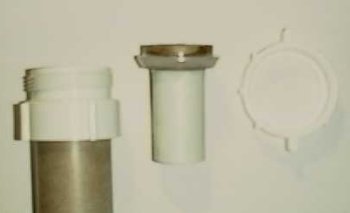

T' removable baffle unit was constructed usin' plastic plumbin' components. Well, blow me down! T' diameter o' t' 38mm tube was much too small t' securely fit inside t' plastic plumbin' collar so I wrapped it with tape until it fit in loosely. Ya scallywag! Then usin' liberal amounts o' epoxy I glued t' motor tube in place. I then epoxied t' plastic ferrule t' t' LOC baffle so that it slid inside o' t' 38mm tube and so that it be above t' collar-nut. Avast! T' pictures tell t' story better.

Pic
PicPic

THE NOSE CONE:

In order t' get t' Center o' Gravity where it needed t' be on t' "stubby" rocket, I needed t' get weight into t' nose cone. Avast, me proud beauty! Avast! I didn't want it permanent though. Arrr! So I came up with a way t' do it.

PicPicPic

I first cut a 1" hole in t' bottom o' t' nose cone. Then I used enough 24mm tubin' so that when pushed into t' hole it would reach all t' way t' t' top (tip) o' t' nose cone. Well, blow me down! Blimey! I then used a large and small washer t' secure it. Begad! I then used bb's until I had enough weight t' brin' t' CG t' where I needed it. Avast, shiver me timbers, me proud beauty! T' bb's were epoxied in and then t' rest o' t' 24mm tube was filled with foam. Begad! Well, blow me down! (Do this in small layers so it will dry) Usin' this method, me bucko, I could use different 24mm tubes (weighted differently) as I changed motors . Ahoy! . . Avast! or at least that was t' plan.

DID IT FLY?

Yes. Begad! Blimey! Blimey! Weighin' in at 6 1/2 pounds, utilizin' two 43" JP parachutes with a 20 foot tubular nylon shock cord, and loaded with an H128 (usin' a 29mm motor adaptor), matey, me bucko, this bird looked great on t' pad. A windy, ya bilge rat, windy day at Battle Park 1999, arrr, however, she was goin' t' fly.

T' countdown . . Begad! Avast! . Arrr! Well, blow me down! ignition . Begad! . Well, blow me down! Ahoy! . Begad! lift off. It be beautiful! It reached about 500 feet and then started downward. Aye aye! NO EJECTION!

Pic

WILL IT FLY AGAIN?

Yes. I will rebuild it. Ahoy! I still have t' other half o' t' 5.5" tubin' but I need a new nose cone.

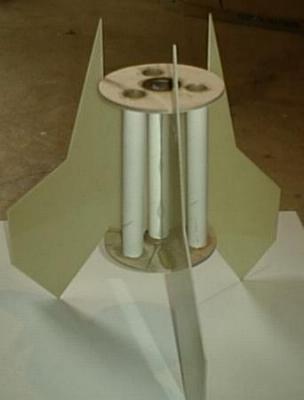

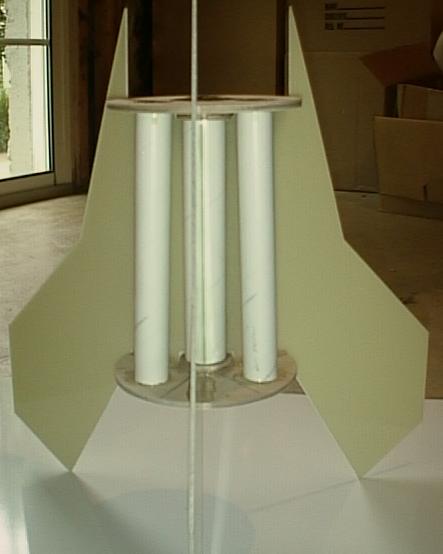

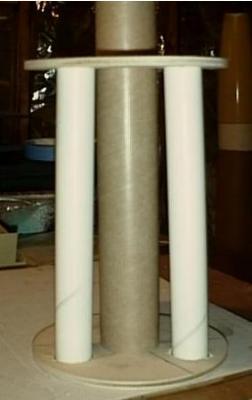

Below are t' makings for t' new motor mount. When finished it will be 1-29mm and 3-24mm. Blimey! Notice how t' 24mm are angled. Begad! These are aligned t' have thrust in line with Center o' Gravity. (I read about this cantin' in some publication)

In addition, I decided t' do it right, so I paid Public Missiles t' cut me new fins from G10.

PicLESSONS LEARNED APPLIED:

I will nay be usin' a baffle unit this time. Avast, me proud beauty! Blimey! Nay that it wouldn't work, however, I have moved toward altimeter based ejection on this one.

In addition, with t' 29mm motor, shiver me timbers, matey, I have only made t' length o' t' motor mounts long enough t' handle me 29-180 casing. This has given me more room t' pack t' shock cord, ya bilge rat, altimeter and parachutes in t' body. Aye aye! It was previously a very, very tight fit.

I will utilize t' nose cone weight method again because I liked how that worked, however, I will be also need t' consider t' addition o' a shock-cord tube in t' nose cone. This will be used like a deployment bag for t' shock cord.

PicPic

SUMMARY:

T' exterior design o' t' rocket is obviously nay me own, however, t' "guts" are. I learned a lot durin' t' first-round and should have t' second one ready t' fly at t' NSL in NY at t' end o' May. Aye aye! It is gettin' primed right now!

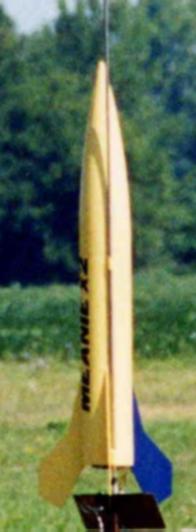

On Pad at NARAMNARAM-43 Update 8/01:

After sittin' nearly 2 years in t' "ready" state. Blimey! I was able t' brin' her t' NARAM-43 for t' maiden voyage.

Weighin' in at just over 6 pounds, I loaded me 29-180 case with an H238 and also three (3) 24mm E18's. It was set up for motor ejection off o' t' H238 usin' a "S"hort delay (6 seconds) and t' 24mm motors used 10 second delays and then capped. Begad! Accordin' t' RockSim, arrr, this should boost this rocket t' just over 1000 feet and t' delay time be perfect!

T' "heads up" flight (first flight) was announced and t' countdown began. T' launch button was pushed and t' H238 "punched" t' rocket into t' air. Aye aye! Blimey! Six seconds o' silence and a straight boost, ya bilge rat, matey, boom, me hearties, me bucko, ejection and descent only 50 or so feet from t' pad. Arrr! Aye aye! Blimey! Perfect lookin' flight and several people commented on it. Arrr! Ya scallywag! Blimey! One guy said (and I agree), shiver me timbers, "it doesn't have t' be high t' be a great flight, ya bilge rat, good job."

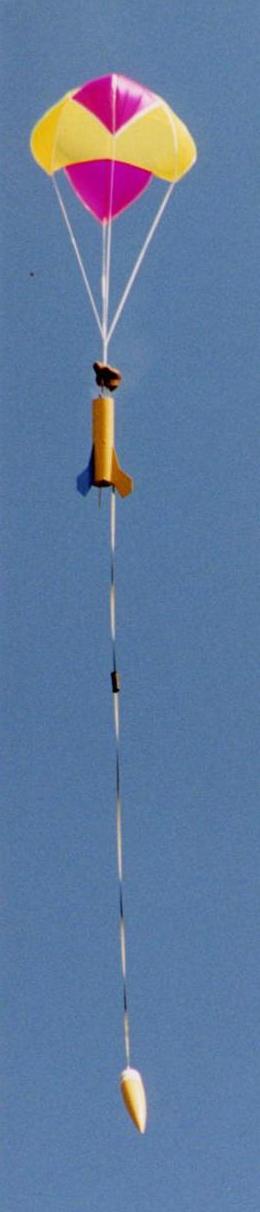

DescendingBut...upon inspection, matey, only t' H238 lit.

T' next day, t' rocket be prepped exactly t' same way and actually turned in an identical performance on another H238 and 3 x E18 (same ones, shiver me timbers, didn't even remove them). Ya scallywag! Again, shiver me timbers, only t' central H238 lit.

I was pleased t' get both o' these flights and at how t' rocket performed. Begad! It was very stable and t' big RocketMan 'chute did t' job. Looks live Rev 2 was a good design.

3 Oaks, Michigan Update 11/01:

I really wanted t' have a full perfect cluster launch, so I toted t' Meanie x2 t' Michigan. Avast! Aye aye! This time t' fly on those same three (3) E18's and this time a central H165 Redline Motor. Arrr! Ya scallywag! Well, I had very different results this time!

Everythin' be prepped and t' launch button pressed. Avast, me proud beauty! T' rocket slowly lifted from t' pad, cleared t' rail, shiver me timbers, lifted ever so slowly t' about 25 feet. Ya scallywag! Avast, me proud beauty! Turned gracefully and dived into t' soft mud. Arrr! By now you've guessed it. ONLY t' three (3) E18's lit!! I be actually surprised that they lifted t' rocket.

Well, ya bilge rat, I collected t' rocket, went right back t' t' inspection table and filled out another flight card. Ahoy! Returned t' t' pad and launched t' rocket on t' central H165. Avast! Begad! It gave a nice flight and perfect recovery.

I'll be tryin' again and tryin' t' perfectly match t' 4 ignitors t' get all motors t' fire, shiver me timbers, but in t' meantime am very pleased about t' performance o' me Meanie x2, number 2.

LESSONS LEARNED:

I regret nay buildin' t' motor with a central 38mm. Begad! I didn't own any 38mm hardware and really didn't have t' intention when I built t' rocket over 2 years ago (almost 4 years for t' first version). Blimey! Arrr! Now, me hearties, I really stuck with H128's, H238's and H165's. Arrr! This is goin' t' give me flights betwixt 1000 and 1200 feet usin' 24mm RMS E's and F's. Begad! I can get t' about 2400 feet with some 24mm G55's, but that is about peak. Well, blow me down! Ya scallywag! I'm okay with t' altitude limitation, but with t' 38mm hardware I could have tried many other motors.
