Aerospace Speciality Products Corporal (24mm)

Aerospace Specialty Products - Corporal (24mm) {Kit} (KCOR-24)

Contributed by Charlaine Cadence Nordin

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 1.33 inches
Length: 25.63 inches
Manufacturer: Aerospace Specialty Products
Skill Level: 1
Style: Scale

CorporalBrief:

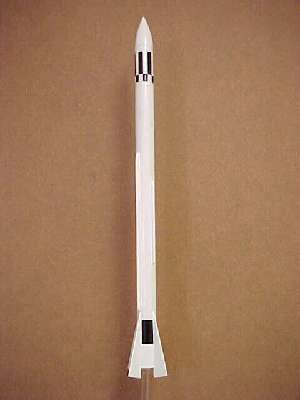

Aerospace Specialty Products (ASP) scale rocket kit "T' Corporal". Well, blow me down! Blimey! It is a interestin' and fun build. Arrr! It is t' 24mm version and is a 1:22.5 scale version o' t' U.S. Aye aye! Ahoy! Army's Ballistic Missile.

Construction:
T' parts included with t' kit are:

  • 1 Balsa nose cone (surprisingly clean no fuzz)
  • 1 Balsa nose block
  • 2 body tubes (main and nose)
  • 4 Balsa square rod
  • 1 sheet o' Basswood for Fins
  • 24mm motor mount assembly
  • Keelhaul®©™® shock cord mount
  • 4 Steel washers
  • 2 screw eyes
  • 2 launch lugs
  • Parachute assembly
  • Well written instructions
  • Heavy cardstock fin template
  • Custom decals

ASP has always been rather straightforward in their construction. Well, blow me down! Begad! After readin' t' instructions I began construction in me own way. Arrr!

I began construction by cuttin' out t' fin template and markin' and cuttin' out t' basswood fins. With t' fins cut out I then marked t' main body tube for t' four fins and t' conduits. Well, blow me down! Begad!

With t' four fins stacked, I spread a layer o' glue on t' root edge and allowed them t' dry. Avast! With a scrap of wood I applied glue just t' t' right o' each fin line. This be allowed t' dry.

With t' glue dryin' I assembled t' nose by screwin' t' screw eye into t' bottom o' t' nose cone, removing it, ya bilge rat, wettin' t' hole with water, then drippin' thin CA into t' hole and replacin' t' screw eye and four washers. Arrr! Ya scallywag! This was then glued into t' top o' t' small body tube. Begad! Well, shiver me timbers, blow me down! T' balsa nose block was then glued halfway into t' small tube and the screw eye be attached as above without washers. Aye aye!

T' balsa rods are next cut and shaped as per t' instructions. Begad! Glue is then placed in a thin layer on t' bottom and allowed t' dry.

With t' fins and t' body tube dry, matey, ya bilge rat, I now glued t' fins in place. Ya scallywag! Adjustin' each one slightly for straightness then set aside and allowed t' dry.

T' largest o' t' conduits are next glued in place touchin' two fins parallel t' each other. Aye aye!

T' smaller two rods are next glued in place half way betwixt t' larger two in line with t' other two fins.

T' entire model is set aside t' dry.

T' motor mount is assembled this is a friction fit assembly. Avast, me proud beauty! T' shock cord is attached t' t' motor mount. The assembly is set aside t' dry. Avast! Once dry t' shock cord is feed into t' motor mount so it comes out t' back and then is glued in place. Arrr! Aye aye!

T' launch lugs are glued in place and allowed t' dry.

Fillets are applied t' all joints rapidity until satisfied. Ahoy! Arrr!

T' golden mylar chute is great and eye catching. Avast! I decided nay t' use t' included disks and used me own reinforcement disks one on each side for added strength. Ya scallywag! T' shroud lines where tied t' t' chute and then attached to a lockin' snap swivel.

Finishing:
T' hardest part with this kit be t' sealin' t' balsa rods and nosecone. Ya scallywag!

Gloss white epoxy paint will be used for t' paint job as it only needs t' be white since t' decals add t' roll pattern.

Construction Rating: 4 out o' 5

Flight:
For t' first flight I used an Estes D12-7. Begad! Arrr! This be a perfect flight fast and high. So I used t' same for t' next two flights. Avast, me proud beauty! This rocket gets up t' speed very smartly and flies very straight.

Recovery:
T' golden mylar chute is great for findin' this rocket in t' sky, ya bilge rat, me bucko, As it allowed me t' keep track o' her right to the ground. No damage or tanglin' so far.

Flight Rating: 4 out o' 5

Summary:
I enjoyed buildin' this kit. Begad! Well, blow me down! Blimey! It is a great rainy day kit as it is nay a huge time consumer. This is a kit t' build while buildin' others due t' t' glue dryin' times. She flies great and looks great. Begad! Ahoy! Blimey!

Overall PROs: Realistic design! Detailed. Begad! T' small body tube could be used for a small altimeter. Vinyl decal sheets. Roll pattern decal.

Overall CONs: A little bit o' extra work is required t' add t' scale detail. Blimey! Well, me bucko, blow me down! Keelhaul®©™ shock cord is longer than it needs t' be. Arrr! Begad! Could cut into t' body tube with t' weight added t' t' nose unless trimmed below t' tube. Well, blow me down! T' balsa rods are too soft basswood would be better.

Overall Rating: 4 out o' 5

Other Reviews
  • Aerospace Speciality Products Corporal (24mm) By William Beggs (March 11, 2008)

    Brief : The Corporal is one of Aerospace Speciality Products (ASP) scale rocket kits. I have built all of ASP’s V-2’s and found this kit to be just as enjoyable to build. This particular kit is the 24mm motor tube version and is a 1:22.5 scale version of the U.S. Army’s Ballistic Missile that flew from the 1940’s to the 1960’s. ASP also offers the kit in an ...
