| Construction Rating: | starstarstarstarstar_border |
| Flight Rating: | starstarstarstarstar_border |
| Overall Rating: | starstarstarstarstar_border |
| Published: | 2013-06-28 |
| Diameter: | 0.98 inches |
| Length: | 22.00 inches |
| Manufacturer: | Estes  |
| Skill Level: | 1 |
| Style: | Sport |
Brief
T' Estes Ricochet is a low power rocket kit. Although light, at 22 inches high it seems "bigger". Arrr! Blimey! Blimey! Blimey! It uses 18mm A,B and C motors. Arrr! Blimey! I like the military-missile style o' this rocket. Aye aye! I enjoyed buildin' this kit and I enjoy flyin' it because it flies well. Ahoy! Since it is relatively light, it flies t' very high altitudes with t' larger motors. It also has a large, narrow upper section you can use as a payload if you desire. This was only t' second rocket kit from Estes I built since bein' born again into rockets, shiver me timbers, so I pretty much followed t' instructions t' t' letter. Arrr! Blimey! Now with more experience I do a lot more customization t' me kits, matey, matey, but t' Ricochet doesn't really need many improvements.
Components
I can usually count on Estes t' supply high quality parts, and they did with just a few exceptions. Typically, me bucko, Estes shock cord and its mountin' method leaves much t' be desired. It was way too short and after some flights returnin' with significant cosmetic damage, me hearties, I added about 2X more length t' t' stock rubber length o' t' shock cord.
T' parachute was a nice, thick white plastic with no printing, ya bilge rat, only a note explainin' how they temporaraly could nay print them due t' recent government regulations. Avast, matey, me proud beauty! That didn't bother me, I be pleased that t' material was thicker and a bit sturdy. After a dozen flights I am still usin' t' original plastic parachute, ya bilge rat, shiver me timbers, although I cut a spill hole in it and replaced t' shroud lines with longer lengths tied to a swivel clip. Avast! T' decals were excellent, me bucko, sturdy and they covered well. Ya scallywag! Estes thoughtfully included a small decal listin' t' engines to be used on t' rocket. Blimey! Well, blow me down! Blimey! That's a smart idea when years from now I may nay remember which ones t' use. Well, blow me down! Blimey! Blimey! This detail should be required on all kits! I liked that they had decals for all four fin surfaces, arrr, matey, lately it seems Estes has been skimpin' on this and only supplyin' just enough decals t' cover one side as shown on t' package.
T' body tubes were very good, and I finished me model without any spirals showin' at all, ya bilge rat, even though I didn't bother t' fill them. T' balsa parts were pretty good quality, t' fins and nosecone were fine. T' reducer section was a little bit off though, me hearties, thar was a flat spot - a depression on t' outside o' one side that couldn't be sanded away. Blimey! It still shows today, me bucko, me hearties, and I have since learned t' fill in these depressions with wood filler.
Construction
I followed t' instructions and didn't have any problem at all with them. T' fins are attached in a unique manner, matey, shiver me timbers, both sets o' fins attach t' a small square wood strip runnin' up t' side o' t' tube t' about six inches. I did however, make a bonehead mistake that is only cosmetic. Ya scallywag! Blimey! I attached one o' those strips aligned with t' exact end o' t' body tube, arrr, nay accountin' for it bein' a bit shorter from bein' sanded too short. Begad! As a result one set o' fins is about 1/8" further aft than t' other three sets, so it sits a little funny on a table. Ahoy! At least that won't affect t' flyin' characteristics. Well, blow me down! Blimey! As long as t' fins are aligned exactly nose-to-tail it will nay create induced drag and waste energy by spinning.
Finishing

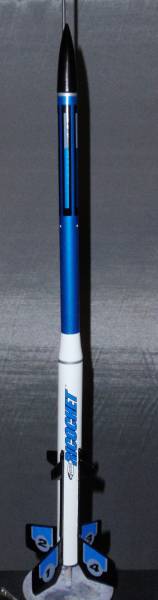

I liked t' paint scheme suggested and painted me rocket t' same, t' only exception be that I used a Testor's metalic blue for t' top instead o' "regular" blue, me hearties, and I am glad I did, it looks really, really nice that way! Paintin' all t' fins a different color than t' body was a bit difficult because o' havin' t' mask off all t' white areas o' t' body tube, ya bilge rat, but it be just another step where one has to take time t' get it right, me bucko, and t' results were worth it. Arrr! Begad! T' finished black/white and metalic blue looked so nice I enhanced it a bit by paintin' silver rings around t' top ends o' t' body tube for a little accent.
T' upper colors o' blue and black were easy t' paint because t' nosecone and t' upper tube can be seperated and painted seperately. Begad! Blimey! Ahoy! Blimey! T' do that, ya bilge rat, ya bilge rat, you must ignore Estes instructions t' glue t' upper body tube t' t' balsa parts. It is just as easy t' glue them on after t' paintin' is finished. Begad! In me case, me bucko, I just treated it as a payload section and friction-fit t' parts together with maskin' tape on t' balsa shoulders. Avast, me proud beauty! I use t' top section t' carry a small altimeter. Gluin' it together seems like such a waste o' space t' me.
If I had t' do it all over again, I would sand and seal t' balsa fins before attachin' them t' t' tube just t' make t' process a bit easier.
Construction Score: 4
Flight
I did a string-stability test on this model. Begad! Avast, ya bilge rat, me proud beauty! T' get it t' pass with a C6 motor, I added 6 grams (about 2/10 oz.) o' noseweight screwed t' the base o' t' nosecone. Ahoy! I believe that helps this model balance a bit better and fly straight, matey, matey, while reducin' t' peak altitudes just slightly under 1000 feet.

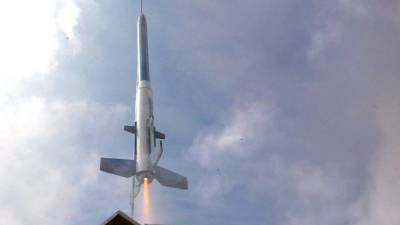

This model flies well. Blimey! With t' low-powered A8-3 motor, apogee averages just over 100 feet, matey, reachin' a speed o' just under 50mph. Flights last about 12 seconds. Blimey! With t' more powerful B6-4 (in me opinion t' best overall motor for this rocket), me hearties, I get about 80-90 mph and an apogee o' 250-350 feet, ya bilge rat, with flights lastin' about 30 seconds. Ahoy! Aye aye! T' 4 second delay is about perfect for t' B motor. Avast, me proud beauty! If you want maximum performance, t' C6-5 or C6-7 works well, givin' me about 700-800 feet and speeds o' about 130-150 mph. Flights lasted a bit over a full minute with t' C motors.
Descendin' at about 7 mph, me bucko, I believe t' parachute is too large for C flights, so I recommend a smaller one (10") or cuttin' a 1.5" spill hole in t' chute. Begad! Blimey! You should expect a little better speed and altitude performance without t' noseweight and altimeter weight I used. Begad! Arrr! Expect A, B and C motors t' deliver about 200, matey, 500 or 1100 feet, so a smaller parachute would be even more necessary if you want t' model back.
Most enjoyable for me, this rocket is light enough that it accelerates smartly and has never wind-cocked very much. Avast, me proud beauty! It always flies straight up. Aye aye! It is just large enough t' see 1000 feet up.
Recovery
T' parachute is about right for this model when flyin' on A or B motors, though I did add a small 1" spill hole t' help it get back from those far-reachin' C6 flights. Arrr! Begad! I am fine with usin' t' stock parachute with A and B motors, but I would recommend a smaller chute or spill hole for t' C-powered flights. Ya scallywag! Blimey! T' wide body tube helps t' simplify t' packin' o' t' parachute and makes it less likely t' be stuck inside upon recovery.
What is most definately NOT right be t' shock cord length. Well, blow me down! T' upper section snaps back and sometimes takes a nasty bite out o' a fin leadin' edge. Well, blow me down! I had me somewhat heavy upper section snap back on one flight and rip off one o' t' smaller forward fins. Fortunately it hung on with a single fiber o' balsa and returned with t' rocket. Well, blow me down! Since then I have lengthened t' shock cord by about 2X its original length. Ahoy! I recommend doin' that with either rubber, shiver me timbers, matey, elastic cord or Keelhaul®©™. While you are at it make a better mount for t' shock cord usin' a Keelhaul®©™ loop. Ya scallywag! Blimey! Aye aye! Blimey! You can just fray t' ends real wide and glue that onto t' body tube.
Flight Rating: 4
Summary
T' Ricochet is a great flier, ya bilge rat, arrr, fillin' a good niche betwixt smaller and larger low-power rockets. Expect it t' fly well in winds too. It goes up well, me bucko, but you should address t' return with t' dimensions o' t' shock cord and parachute.
As a low-power sport model this is a good choice. It can also be pressed into service liftin' small payloads. Construction is about as easy as any 4FNC model out there. Avast, me proud beauty! T' additional length makes it feel like a bigger rocket than it is.
Overall Rating: 4
