INTRODUCTION

This project started because I wanted t' do somethin' different. Begad! I had been doin' camera rockets exclusively for over 12 years and wanted a different challenge. Ahoy! When I considered an upscale o' a model rocket, me hearties, I knew t' only choice for me was t' Mars Snooper II (Photo 1). Arrr! Well, blow me down! It was first released by Estes in 1975 and ran through 1980. Well, blow me down! Ahoy! Because o' its futuristic design I thought it would be a challenge and an attention getter. Begad! It proved t' be both.

I had a Mars Snooper II a long time ago but I never cared for its paint scheme. T' original was painted almost entirely red with only white decals. Ya scallywag! Avast! I painted mine red but I added black for t' fins, arrr, reducers and nose cone. Ahoy! For the upscale I wanted a multiple color scheme so I opted for a white body tube with black fins and reducers and then trimmed with silver and red (Photo 2). Also it is nay a true upscale because o' t' coolin' fins. Arrr! T' original had only 8 and I wanted nine for symmetry.

Construction

I decided t' make mine out o' fiberglass. T' 4 times upscale showed that it would be 8 feet tall (Photo 3) and t' fin span would be about 3 feet, arrr, and I knew I needed somethin' substantial t' withstand t' forces o' flight. Begad! I designed it around a 75 mm motor mount so it could be capable of (theoretically) Level 3 flights. Because o' these differences I decided t' call mine t' Mars Snooper III. Avast, me proud beauty! T' first challenge be t' general design o' the rocket. Blimey! Avast, me proud beauty! With a 75 mm motor mount thar wasn't enough room in t' 4" body tube for both t' longer motor and a parachute. Avast! T' parachute would have t' go into t' upper 3" body tube. How would they be connected t' get the parachute attached t' t' lower section and still have access t' install the electronics for ejection?

I designed t' motor mount tube t' go all t' way up t' t' top o' the 4" tube and use a long coupler that t' 3" upper section would slide over. Begad! T' coupler would have t' be long enough for screws t' be installed above the upper transition. Ahoy! These screws would prevent t' upper body tube from comin' off at ejection. Ahoy! T' electronics would be installed via a hole in the coupler and then slid down into t' 4" body tube and attached.

Photo 4Photo 5Photo 4 shows t' motor mount with t' fins before t' 4" body tube is installed. T' motor mount extends t' t' top t' t' outer body tube and t' coupler extends 12"s beyond it for t' upper body tube t' attach. Aye aye! Avast, ya bilge rat, me proud beauty! T' openin' in t' coupler tube allows t' electronics t' be installed and t' lower openin' is so it can be placed next t' t' outer 4" body tube. Avast, me proud beauty! This allows t' outer body tube to be freefrom a door t' access t' electronics.






T' design also proved t' be a challenge because I knew t' fins had t' be attached t' t' motor mount very well. Ahoy!

T' fins would be heavy and t' acceleration could easily rip them off if they were nay attached well. Avast, matey, me proud beauty! T' shock when t' rocket landed would be even greater. Arrr! T' fins were constructed from 1/8" G-10 fiberglass laminated with 3/16" plywood. T' entire thickness would be a true scale 1/2 thick. For t' fins outside t' pods (Photo 5), I used slightly thinner 1/8" plywood so they are only 3/8" thick as well as t' upper fins.

To help absorb t' shock on landin' I decided t' have retractable legs that were sprin' loaded. Avast, me proud beauty! Blimey! This was accomplished by attachin' t' fins t' an inner 1 1/2" fiberglass tube. This inner tube would house t' sprin' for t' legs. Aye aye! Well, shiver me timbers, blow me down! T' 2 1/4" tube would surround this inner tube t' give t' pods a through t' wall fin mount (Photo 6). T' pod nose cones (Photo 7) were turned from stock nylon by me father and would be glued on after a 1/2" brass tubin' was epoxied inside t' guide the leg as it retracted (Photo 8). Blimey! T' nose cone had t' be hollowed t' allow the leg t' travel inside from t' 2" compression o' t' spring. Ya scallywag! Aye aye! Each fin weighed about 4 pounds without t' leg.

T' fins were attached one at a time usinga jig t' hold each leg in place until all could be securely fastened (Photo 9). Blimey! Attachin' each fin be a several step process. Each fin was tacked in placed with slow CA. Well, blow me down! Aye aye! Then carbon fiber be used t' run t' length of the fin and covered with more CA. Ya scallywag! Well, blow me down! A thin layer o' 5 minute epoxy coated the first layer o' carbon fiber t' hold each fin strong enough t' rotate t' rocket and attach another fin.

T' next layer o' carbon fiber be attached in short lengthsso t' grain o' t' carbon be perpendicular t' t' root edge (Photo 10). Aye aye! It be again glued with CA and a third layer o' carbon fiber covered t' second, me bucko, runnin' t' length o' t' root edge (Photo 11). T' entire joint was flooded with 2 hour epoxy. T' upper end be sealed by t' centering ring, me hearties, me bucko, also re-enforced with carbon fiber, matey, me bucko, and t' lower end was dammed with red modelers clay

Photo 12(Photo 12). Well, blow me down! Blimey! This was just t' joint at t' motor mount.

T' 4" body tube was slid over and tacked in place. Arrr! Blimey! Carbon fiber was used with CA over t' length o' t' fins and lightly coated with 5 minute epoxy. Avast, me proud beauty! Blimey! T' inside joint was also coated with a layer o' carbon fiber and completely soaked with 2 hour epoxy (Photo 13). Ya scallywag! Blimey! Ahoy! Blimey! Because t' lower part o' the fin would be covered with one o' t' transitions I could also build up t' fin underneath t' cowling.

Photo 13Small strips o' wood were glued t' t' fins where t' transition would be attached t' t' fins t' give some support for t' cowlin' and the centerin' rin' for t' cowlin' be attached t' t' base o' t' body tube. Arrr! Ahoy! Cross weaved carbon fiber was attached betwixt t' fin, t' body tube, arrr, and the centerin' ring. Blimey! Well, blow me down! Then another deep cure o' 2 hour epoxy


Photo 14(Photo 14) was used to soak t' carbon fibers.

Photo 15The upper fins were attached in a similar fashion. Aye aye! They also had through t' wall fin construction and even t' 3" inner tube was slotted. Avast, me proud beauty! Blimey! T' coupler to hold t' upper parachute compartment extended down below t' upper fins and provided additional support. T' joints were also re-enforced with carbon fiber and inner fillets were also used (Photo 15).

Three transitions had t' be made, t' upper transition for t' 3" body tube t' t' 4" body tube, me hearties, matey, a transition at t' 4" body tube at the fins, matey, and t' lower reducer actin' like t' motor with "cooling fins". Aye aye! All were cut out o' poster board and then coated with three layers of 6 oz fine weave fiberglass and 2 hour epoxy.


Photo 16Photo 17T' upper and lower transitions could be built "in place" attachin' t' paper directly t' t' body tube and centerin' rin' (Photo 16). T' transition at t' fins could not because o' t' through t' wall construction. Arrr! Blimey! It be placed temporarily on a jig and covered with t' fiberglass and epoxy (Photo 17). When dried it be cut for t' fin slots and then sliced and installed on t' rocket. Begad! The "engine" reducer had nine "coolin' fins" made from 3/32" fiberglass and attached with t' standard CA, carbon fiber, and epoxy joint (Photo 18). Well, blow me down! Ahoy! All t' transitions were filled with expandin' foam to give them rigidity.


Photo 18Photo 19How was t' rocket goin' t' be guided at takeoff? T' original rocket used two launch lugs attached t' both sets o' fins set far enough from t' body tube t' allow t' rod t' clear the transitions. Ahoy! That would never work for this rocket. I decided t' still use a 1/2" launch lug but attached directly t' t' 4" body tube that passed through t' transitions.

This also proved t' be a challenge. I used two sections o' PVC pipe, one for each transition and then aligned them up with a standard launch lug (Photo 19). T' two transitions were epoxied together sandwichin' layers o' carbon fiber. T' launch lug fit nicely inside t' PVC pipe and was used t' align t' two pieces together.


Photo 20Photo 21T' legs were constructed from solid 1/2" aluminum and t' feet were made from black plastic pipe that I found in t' hardware store that fit just beautifully over t' legs. Ahoy! Ahoy! T' legs were machined by me father with a groove t' allow a snap rin' t' hold a washer that would push up on t' spring. Avast! They were kept from fallin' out by a 1/8" aluminum plate that be attached t' t' bottom o' t' pods. In between t' two tubes o' t' pod were 6-32 standoffs (Photo 20) that t' plates would be screwed into.

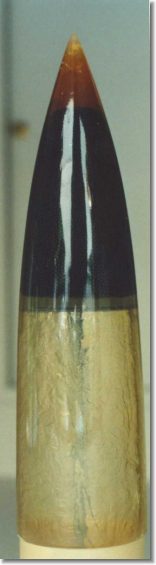

T' Center o' Pressure was calculated and it is located about an inch below the top o' t' main fins. Blimey! I knew that nose weight would have t' be added for stability. Five pounds o' lead shot were epoxied into t' fiberglass nose cone that surrounded a 5/16th" piece o' all thread (Photo 21). Arrr! Begad! T' all thread is used t' attach t' parachute t' t' nose cone via a closed eye bolt.

Photo 22The rocket was nearly finished except for a few touch ups for t' Turkey Shoot 2000 launch but I came down with t' flu and just couldn't complete it. Ya scallywag! Ya scallywag! Springfest 2001 came around and I be determined t' fly it. Aye aye! Several people commented on the looks and I started t' get nervous. Am I really goin' t' fly this rocket (Photo 22)?

FLIGHT

With an empty weight o' nearly 25 pounds, shiver me timbers, I knew I would need a big chute. I ordered t' 15 foot military surplus chute and at t' launch field it was quickly apparent that it would never work. Aye aye! Avast, ya bilge rat, me proud beauty! I managed t' get it into t' rocket but I knew that it would never deploy. Avast! Fortunately Dave Flynn volunteered a Rocketman R9C and I had a R7C that could be used for t' nose cone. Begad! Avast, me proud beauty! T' L850 was assembled and t' ALTACC installed and it be ready t' fly.

Photo 23I used my custom launch pad that consisted o' basically a table with a hole in it and a launch rod. It’s a great design because t' weight o' t' rocket sits on the table rather that t' hangin' off t' rod. T' launch rod is used entirely for guidance rather than supportin' weight (Photo 23). Begad! Even still I heard cracks about servin' tea out in t' launch area (sigh). Begad! T' table was staked down t' prevent tippin' over and t' igniter installed.

T' winds were too strong most o' t' day but had been dyin' down. Thenervousness was turnin' into butterflies, shiver me timbers, launchin' a very unusual design that weighed about 35 pounds at takeoff from a 6 foot 1/2" launch rod. It was stable but t' design still made it risky in a wind. T' simulations had it stable in flight at about 40"s and it did have an 8 t' 1 thrust t' weight ratio. Begad! T' top it off, matey, me bucko, I was usin' too small o' a chute for t' booster. Hit the button anyway.

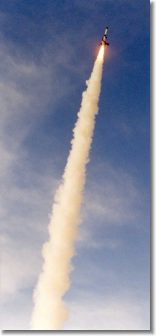

Photo 24Photo 25T' launch was perfect (Photo 24). Avast, me proud beauty! It climbed straight and seemed t' continue for a long time (Photo 25). Very little weather cockin' was evident and right at apogee t' rocket separated. Avast, me proud beauty! Begad! T' nose cone chute opened right away but I wasn't breathin' until I saw t' booster chute. After an eternity passed without breathin' I saw the booster chute opened (Photo 26).

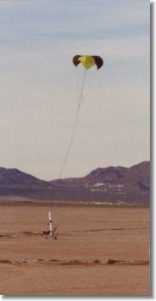

I saw both chutes out but knew that t' chute for t' booster was too small. It was designed for a 15 pound rocket and t' booster had t' weigh at least 22 pounds. What be I thinking! It landed and t' sprin' loaded legs helped cushion t' impact but all three legs bent upon hittin' that hard dry lake bed (Photo 27). Begad! One o' t' reasons that I wanted removable legs was that if they were damaged on landing, they could easily be replaced. Avast! Dave says that I should use stronger springs and aluminum for t' legs. I'll probably do that if I ever fly it again.


Photo 26 Other than t' legs thar was only cosmetic damage where t' outer fin had attached t' t' pod. Avast! This was probably caused more by tippin' over than t' actual impact on landing. Begad! Aye aye! Nowhere t' main fins attached to t' rockets body were thar any signs o' cracking. T' tedious re-enforcing had paid off.

Overall t' Mars Snooper III provided me with valuable experience and a whole host o' emotions. Ya scallywag! Aye aye! Everythin' from lovin' it t' wantin' it off my workbench because I was sick o' t' sight o' it. Begad! Will it fly again? Perhaps not. Begad! I like t' design o' it so much I'm considerin' just usin' for a conversation piece and takin' it t' science fairs and such t' promote HPR.
