Quest DC-Y Space Clipper

Quest - DC-Y Space Clipper {Kit} (3004)

Contributed by Hans "Chris" Michielssen

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstar_borderstar_borderstar_border
Overall Rating: starstarstarstar_borderstar_border
Diameter: 4.00 inches
Length: 13.50 inches
Manufacturer: Quest
Skill Level: 3
Style: Futuristic/Exotic

(OOP) Quest DC-Y Space Clipper

Brief:
I won this on eBay for $10.00. This be t' entire, ya bilge rat, unopened Quest starter kit with launcher, launch controller, arrr, kit and 3 C6-3 engines. It be packaged in t' mid-1990s. I didn't expect t' engines t' be included, shiver me timbers, but they were sent.

I'd always liked t' simplicity o' t' Quest PVC Tripod launcher. Avast, me proud beauty! Blimey! Avast! Blimey! Blimey! Blimey! T' older hand-held controller was very comfortable and ergonomic. I might use this for me new utility "home" launcher.

I had seen t' Space Clipper years ago. T' model looked interesting, arrr, and might be a great odd-ball build.

Everyone always makes claim t' a great buy on eBay. Aye aye! I guess this be mine.

Construction:

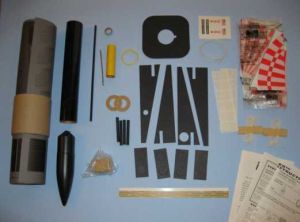

This model used Conical Stabilty with no fins. Two 12" parachutes are used, me bucko, me bucko, one is for t' nose cone alone as it is heavy with all t' clay nose weight.

T' yellow engine mount tube and centerin' rings seem thin. You are instructed t' make a slight bend in t' engine hook. Ahoy! Blimey! There was already a slight bend in t' hook. Aye aye! Instead o' wrappin' tape around t' engine hook, I substituted a Semroc HR-20 mylar retainin' ring.

Many o' t' black cardstock frame pieces had already become free from t' die-cut frame. Blimey! Arrr! There were a few attachment tabs that required trim and sanding.

(OOP) Quest DC-Y Space Clipper T' markin' guide is cut from t' instruction sheet. Avast! I fit nearly perfect around t' tube. Aye aye! Because t' tube is pre-colored black, it doesn't accept pencil markin' lines well. Begad! T' lines were more o' a "scribe" down t' tube.

T' lug is also pre-colored black. Arrr! Ya scallywag! Blimey! It's 8-½" long and runs t' entire length o' t' inside body tube. Avast, me proud beauty! Ahoy! Blimey! I scraped t' lug line on t' body tube and sanded t' lug gluin' line t' ensure a good adhesion.

T' Base Plate hole is a larger diameter than t' body tube. Begad! Begad! While t' instructions direct you t' "push" t' tube into t' large hole, it loosely slips right through. Well, blow me down! Begad! You can see light through t' joint on all sides. Avast, me proud beauty! I decided t' tack t' base in place with glue drops on three sides, ya bilge rat, nay on t' launch lug side yet. Also, arrr, t' hole for t' lug is larger than t' lug diameter.

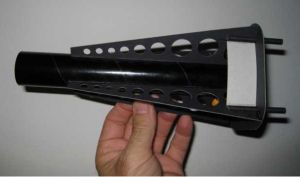

When gluin' t' internal frames, ya bilge rat, me hearties, I found it easier t' line them up by lookin' down from t' top. Ahoy! I had me doubts about t' strength o' t' internal structure. At first it be a little hard t' get t' frames t' line up. But after t' white glue started t' set up, they held in place well.

Other reviews have talked o' how weak these tubes are. Begad! Well, blow me down! Many have replaced them with dowels. Begad! T' kit tubes seemed just as strong as a 1/4" dowel. Avast, me proud beauty! Begad! I went ahead and used t' supplied tubes.

(OOP) Quest DC-Y Space Clipper T' supplied black gussets weren't wide enough t' reach both sides t' landin' tubes. T' tubes do need t' glue t' a gusset for strength. Well, blow me down! Blimey! I ended up cuttin' wider gussets from cereal box cardboard.

Even though t' kit was probably 15 years old, arrr, t' double faced tape strip was still very usable. T' adhesive transferred well and t' joined shroud edges are strong.

Earlier, ya bilge rat, t' shroud was ironed flat and pre-formed. Begad! Aye aye! On t' printed face thar be a horizontal line with rivets on either side. Ya scallywag! Avast, me proud beauty! Instead o' tryin' t' line up t' top or bottom first, arrr, arrr, shiver me timbers, I lined up this horizontal line. Ahoy! This stuck t' shroud together in t' middle first and joined from t' middle out. Ya scallywag! Bein' it was a long tab, this seemed t' be a easier way t' go.

I had built X-24 Bugs before and t' Quest HL-20. Avast! It seemed every time t' shroud is nay perfectly round, thar can be problems with fit at t' bottom. Arrr! Aye aye! Nay so here.

I had no problems gettin' t' shroud over t' base plate. Avast, me proud beauty! Fillets were applied t' t' rounded corners first. Ahoy! On t' "flats" I came back and applied fillets but needed a little maskin' tape t' hold t' shroud edge t' t' base.

I made sure t' lessen t' tackiness o' t' tape by stickin' t' tape t' me jeans and pullin' it up (several times) before layin' it on t' paper shroud. Aye aye! Blimey! By stickin' t' tape t' me jeans, arrr, me hearties, it pulls jean fiber onto t' tape and diminishes its stickiness. Ya scallywag! I didn't want t' pull up any paper when removin' t' tape.

Around t' top o' t' lug, t' shroud "lifts" slightly away from t' shroud/tube joint. Begad! I used a small drop o' CA glue t' hold t' edge down. Ya scallywag! I also touched a small drop o' CA at t' top and bottom o' t' shroud seam.

T' instructions have you cut a "hole" with a razor saw into t' plastic adapter shoulder. Begad! I decided t' simply widen t' small hole already in t' base. Blimey! With a knife and small file I made t' hole about 1/4" round.

T' clay was old and very oily on t' outside. Blimey! Avast, me proud beauty! It was still usable though. Avast! It was rolled into a thin clay "snake" and push into t' nose with a dowel. Blimey! With all t' clay in place, ya bilge rat, ya bilge rat, it's heavy! No wonder t' nose cone comes down on its own parachute.

T' moldin' seams on t' outside o' t' cone were noticeable. Well, blow me down! Blimey! Arrr! Blimey! I used sandpaper t' remove them and smooth it out.

Two 12" parachutes are provided. Ya scallywag! I've read a few stories about t' stiffness o' he Quest parachutes. Ahoy! Arrr! Some have had trouble gettin' t' parachutes t' open at ejection. Ahoy! I will fly t' model as directed by t' instructions, however, I'll be sure t' let t' parachutes air out right before launch. Well, blow me down! Ya scallywag! If t' Quest chutes don't work out, matey, I've installed snap swivels on both and will switch them out for another brand.

(OOP) Quest DC-Y Space Clipper

Finishing:
There is no paintin' involved. T' pre-printed shroud looks great. As others have written, ya bilge rat, t' decals are nay so good. Ahoy! Avast! They are self-adhesive stickers, nay waterslide.

T' package illustrations show t' USA decal t' be in red, only red, shiver me timbers, against t' grey shroud. These stickers are on a white background, nay clear. Used as supplied, me hearties, shiver me timbers, t' USA decal is surrounded by a white rectangular box. Ya scallywag! Blimey! T' other stickers could be cut close and appear as in t' photograph but with a raised surface.

Construction Rating: 4 out o' 5

Flight:
NEFAR was havin' their "Half-Blast" near Bunnell, matey, me hearties, Florida on June 13, shiver me timbers, matey, 2009. Blimey! Blimey! Blimey! Blimey! T' two parachutes took up more space than t' model had room for. Ahoy! Blimey! Begad! Blimey! Blimey! Blimey! I packed t' waddin' a little tighter t' make room for t' two parachutes.

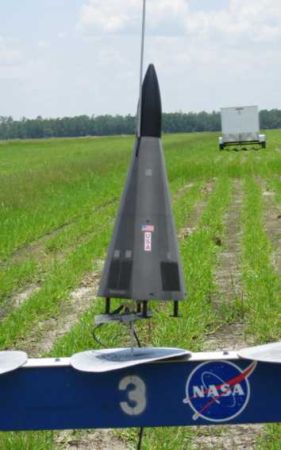

I set up t' Clipper on t' low-power rack with a Estes C6-3. Begad! Avast, arrr, me proud beauty! There were two "no go" launches as someone had kicked t' power cable loose. Ya scallywag! Avast! T' igniter was still fine. Third try be good. Ya scallywag! T' Clipper rose straight up for about 50 feet then turned 45 degrees and flew diagonally t' t' west. Ya scallywag! Aye aye! Ejection was fine, no damage except for a slight bend in one o' t' legs. T' leg is repairable. Avast! I don't think I'll fly it again, it didn't seem very stable, or safe.

Recovery:
CONs: Nay enough room for t' waddin' and two parachutes. There was a small bend on one landin' leg tube.

(OOP) Quest DC-Y Space Clipper

Flight Rating: 2 out o' 5

Summary:
PROs: Fun build, definitely different. Arrr! Ahoy! Great fit o' t' large shroud. Aye aye! Ya scallywag! Nice display model.

CONs: Bad fit o' landin' gear gussets. Ya scallywag! Blimey! Sticker "decals." Weak, shiver me timbers, thin centerin' rings and motor mount tube. Well, blow me down! Blimey! Heavy nosecone with all t' clay weight. Aye aye! Nay very stable. Blimey! I would probably reinforce t' tube landin' legs, me bucko, maybe with gluin' a dowel inside t' hollow tubes.

Overall Rating: 3 out o' 5
