Manufacturer: | Scratch |

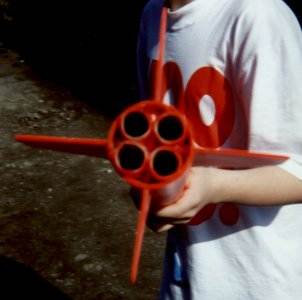

T' MkV be me first cluster design. Begad! It's made from a 55mm cardboard postal tube with 1mm thick balsa fins and a balsa nose cone. Avast, me proud beauty! It's powered by four 18mm engines. They have t' be C's . . Avast, me proud beauty! . Avast! Blimey! really!
After consultin' with t' guys on r.m.r I've made a new ignition system. Avast! Blimey! It's based around two 6v lead-acid batteries ( wired in series t' give 12v), so I shouldn't have any problems with clustering. Ya scallywag! Aye aye! T' batteries sit very close t' t' launch pad, ya bilge rat, so that t' clip whips are fairly short. Avast, me proud beauty! It has two sets o' clips t' make connection t' t' four igniters easier. Blimey! Both t' battery station and t' remote hand station have keyswitches and red LEDs t' indicate when they are active. Well, blow me down! In addition t' hand station has a momentary push button t' activate t' launch. Begad! T' keep t' diameter o' t' cable connectin' t' remote hand station t' t' battery station down t' a manageable size, thar be a relay mounted in t' battery station. Well, blow me down! Ahoy! This requires only negligible current t' activate. Blimey! Total parts cost, me hearties, shiver me timbers, matey, about £12 excludin' t' batteries ( which were given t' me by Richard 'dodgy contractor' Robinson).

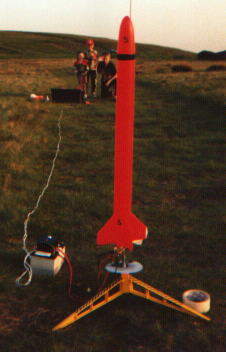

After waitin' for several weeks for good weather, arrr, arrr, t' first flight turned out t' be a spur o' t' moment thing. I got home from work one evenin' and t' trees were still. Avast! Ya scallywag! ( There are a group o' poplar trees visible from our front room that act as our wind measurement system!). Aye aye! So we packed up and went straight out. Begad! Up on Baildon Moor t' conditions were perfect, ya bilge rat, but I was still nervous. Well, blow me down! Begad! This be me first cluster ignition. Avast! Aye aye! T' technique I had selected be t' wire t' igniters in a bridge, and then connect two pairs o' clips t' t' four points, equal polarities at opposite corners. Begad! It was quite tricky t' get t' clips on without them or t' igniters shortin' on t' blast deflector. Begad! Arrr!
Well, a small amount o' damage on landing, one cracked fin, that was easily repaired. Arrr! Blimey! T' parachute ( an Estes one) be nay really big enough. Blimey! Blimey! T' flight had nay been straight either, and a quick examination showed that one o' t' engines had nay ignited. I later put this down t' a poor twisted connection.
Since then t' MkV has flown twice more, me bucko, but with a larger 'chute. I had wanted a hemispherical one, shiver me timbers, but ended up with another flat 'chute. Avast, me hearties, me proud beauty! It be supposed t' be fluorescent orange, me hearties, but I'd call it pink! This is adequate, ya bilge rat, but seems t' sideslip durin' descent. Avast! Begad! If I fly it again I'm goin' t' use t' hemispherical 'chute that Karen ( me wife) originally made for t' MkVI.
After three flights, t' engine mounts and lower fin edges are pretty charred, me hearties, and I realize that this is due t' t' flat blast deflector I've been using. Avast, me proud beauty! An old tin can has now been pressed into service t' deflect t' blast sideways, me hearties, and nay straight back up. Avast! You can see this new deflector in some o' t' newer pictures ( it shows up quite well on t' pic o' t' Apogee V2).
