RocketHead Rockets Gamma III Optimized

RocketHead Rockets - Gamma III Optimized {Kit}

Contributed by Philip Handley

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: RocketHead Rockets
Style: Cluster
Rockethead Rockets Gamma III Optimized

Brief:
A unique three motor parallel staged rocket.

Construction:

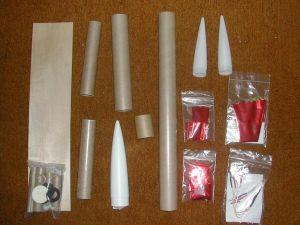

T' Gamma III came in t' usual clear plastic bag packagin' with five smaller packages in addition t' t' tubes, me hearties, nose cones, and fin stock. Well, blow me down! Blimey! Begad! Blimey! T' four body tubes were t' brown Estes type, but t' three nose cones were rather thin plastic, matey, which made for rather weak points t' screw in a screw eye (the kit now comes with balsa cones). A Rockethead Rockets 15" mylar chute, and two mylar streamers were also included. Begad! Blimey! T' recovery items were very high quality. A DMB Rocketry three motor Clip Whip had been thrown in as well. Basswood fin stock and fiber centerin' rings round t' kit off nicely.

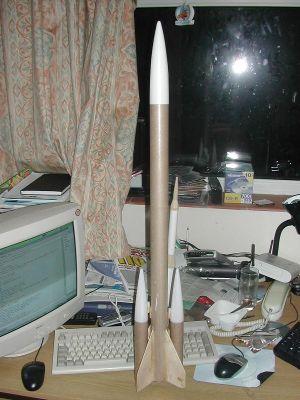

Construction is fairly straightforward for t' experienced modeler. Arrr! The included instructions were clear and contained photos and line drawings to illustrate t' steps. Templates were on a separate sheet. Avast, me proud beauty! Avast, me proud beauty! Cuttin' t' fins out of t' basswood stock was a little tricky with a hobby knife, arrr, but t' method mentioned in t' instructions works well. Begad! I used medium CA throughout t' build and filleted t' fins with epoxy. Avast, me proud beauty! Blimey! This is definitely a builder's kit as you have t' cut dowels, arrr, body tubes, me bucko, and launch lugs.

Rockethead Rockets Gamma III Optimized

Finishing:
There are no special finishin' requirements nor decals included with t' kit. Begad! Aye aye! I went with purplely-bluey on t' sustainer and green on t' fins and pods.

I'm givin' this four and a half out o' five. Well, blow me down! Arrr! It just misses out on full marks because o' t' nose cones.

Construction Rating: 4 out o' 5

Flight:
T' first flight o' t' Gamma III was at BigEARS '05 in Cambridge, England. I loaded it up with a D12-5 and C6-3s in t' boosters. Avast! Ahoy! Waddin' be inserted into the boosters and sustainer. Ya scallywag! I decided t' use an 18" nylon chute in the sustainer due t' t' hard ground. Begad! Begad! I hooked up t' DMB clip whip t' the igniters, me bucko, and went out t' t' pads. Arrr! Well, ya bilge rat, blow me down! T' wind was gustin' around 7-10mph, and I was a bit nervous about launchin' but I went for it anyway. After a quick countdown, t' rocket left t' pad with all three motors burnin' then shot over towards t' campin' area, goin' close t' horizontal. Avast, me proud beauty! It managed a tight loop before it hit apogee then t' boosters ejected at about 20ft above ground, while t' sustainer hit t' ground and ejected almost simultaneously. Ya scallywag! Arrr! An excitin' flight but nay what I had in mind! After a 20 minute search o' the field for t' boosters (as t' crops were at that annoyin' height when it's easy t' lose smaller rockets in), ya bilge rat, we managed t' find one booster and t' nose cone from t' other, which had separated and taken t' streamer with it. Avast, arrr, me proud beauty! The sustainer was found a little further down, with t' nosecone about 4" into the hard mud. T' top o' t' body tube be crimped beyond repair and t' motor mount had moved a couple o' inches into t' body. Arrr! Blimey! It seemed t' crash had been caused by a short launch rod, t' wind, matey, and late ignition o' one o' the boosters, which was confirmed by lookin' at t' spent igniters: two were completely burnt up but t' other one still had most o' t' paper on it.

Rockethead Rockets Gamma III Optimized After a quick rebuild, ya bilge rat, it be ready for another flight, shiver me timbers, ya bilge rat, which took place at UKRA '05. Ya scallywag! Blimey! It was loaded up again with a couple o' C6-3's and a D12-5. Blimey! Blimey! This time, I used Quickmatch (fast burnin' fuse ignited by an Estes igniter) t' light t' motors, me hearties, which practically guaranteed simultaneous ignition o' all t' motors. Arrr! Blimey! After worryin' about flyin' it in t' high wind (higher than BigEARS), shiver me timbers, I loaded it up onto a pad with a long rod. Begad! Blimey! All three motors lit at t' same time thanks t' t' Quickmatch and t' Gamma shot off the pad, barely weathercocking. Well, blow me down! Blimey! Right on cue, me bucko, t' boosters ejected and separated from t' sustainer. Avast, me proud beauty! Blimey! One booster kicked its motor, arrr, shiver me timbers, which be me fault for not securin' it properly, and both nose cones separated from t' tubes. Arrr! Blimey! Arrr! Blimey! The sustainer continued skyward for 3-4 more seconds, and then ejected right on apogee. Blimey! Blimey! All parts were recovered nicely.

Take-off picture by Dan Westley

Flight Rating: 4 out o' 5

Summary:
An excellent kit, with very excitin' flights. Arrr! Ya scallywag! I be slightly let down by the weak nose cones but that has been fixed with t' Rockethead version o' this kit.

Overall Rating: 4 out o' 5
