Brief:
This is a very nice 1:6 scale model o' t' Nike-Apache soundin' rocket suitable for E motors up through small HPR motors. Aye aye! It's a hefty and strong kit capable o' survivin' almost anythin' you throw at. This be me L1 cert rocket.

Construction:
T' parts list:

• Conical balsa nose cone, 6" long and 1" in diameter.
• 5oz lead nose weight, 1" long and 1" wide.
• 24mm thick-wall tube 22.5" long.
• 2 4.85" pieces o' 1/16" wire t' be bent t' make t' antennae.
• 24/29 centerin' ring, 3/4" long. Avast, me proud beauty! Aye aye!
• 29mm thick-wall tube 3.55" long.
• 24/29 centerin' rin' 1/4" long.
• 4 Apache fins, 1/8" 5-ply wood, matey, matey, arrr, with a tight grain that needs only a bit o' sandin' and probably nay even filling.
• 11 feet o' 3/16" tubular elastic shock cord.
• 3/8" dowel 2-5/8" long, t' be inserted into t' transition for strength.
• Balsa transition. (It's t' famous Nike transition, matey, which bumps a bit out from t' Nike booster then goes way in t' t' sustainer. Avast! Blimey! Blimey! Blimey! It's a solid piece o' balsa t' size o' a soda can. It's almost 6" long total and 2.8" wide at its maximum, with 2.8" o' length outside t' rocket. Well, blow me down! Blimey! 1" plastic screw-in anchor, shiver me timbers, arrr, for anchorin' t' screw eye in t' bottom o' t' transition.)
• 1/2" screw eye t' attach t' t' transition.
• 1.5" long quick-link for attachin' t' elastic shock cord t' t' steel mount.
• 14" long shock cord anchor o' 1/8" steel wire. Avast, me proud beauty!
• 2.6" wide heavy-wall tube 21.2" long.
• 2 sections o' 1/4" launch lug each 1" long.
• 2 sections o' balsa 1" x 1/4" x 3/8" for use as lug standoffs. Aye aye! Begad!
• 1 29mm thick-wall motor mount tube 7.5" long.
• 4 Nike fins, same quality as before and also TTW. Aye aye! Avast, arrr, me proud beauty! These require a labor-intensive knife-edge sandin' if you choose t' build it absolutely t' scale.
• Forward centerin' ring. Avast! 1/8" ply as above and has 2 holes t' fit t' loop on t' steel cord.
• Aft CR, same as above except with one 1/4" hole for motor retention.
• 3/16" threaded rod 2.8" long for motor retention, ya bilge rat, plus spacer, me hearties, me bucko, washer, and nut.
• Paper wrap for forward section o' Apache body tube.
• Paper wrap for Nike fin can.
• 28" red circular nylon chute.
• 2 decal sheets.

It's a lot o' components and a very good price--I got mine from Apogee for about 60 bucks. Avast! Avast, me proud beauty! T' components are high quality and fit in well. Begad! Arrr! However, me bucko, shiver me timbers, thar are four recommendations I'd like t' make. Arrr! Well, blow me down! First, buy a chute protector. A 9" Keelhaul®©™® sheet, arrr, matey, available from Madcow or Apogee for about 10 bucks, is far easier than usin' lots o' waddin' or riskin' t' nice chute. Blimey! Second, get a 1/4" Keelhaul®©™® shock cord and use t' elastic t' hold up your pants, matey, as I was told. Well, blow me down! Arrr! Third, arrr, me bucko, arrr, epoxy clay makes this a lot easier to assemble. Blimey! Begad! Finally, ya bilge rat, if you want versatility or you're plannin' on flyin' it with HPR motors, then buy a pair o' rail buttons and epoxy them on. Avast, me proud beauty! A buck is definitely worth t' option o' usin' a rail. Avast! I plan t' add this soon.

T' instructions are very high quality. T' B&W line drawings are nay quite Estes quality but are easily up to t' task. Avast! Blimey! This is a large skill level 4 rocket; builders should have experience both in buildin' scale models and mid-power rockets. Aye aye! Avast, me proud beauty! Blimey! I am about a skill level 3+ builder (I can take anythin' Estes can throw at me) and have built a handful o' mid-power rockets, matey, me bucko, and this still tested me skills at every turn. Ya scallywag! Aye aye! Blimey! It's perhaps t' first kit I've ever built that I do nay think could be built by a dedicated newbie and requires previous rocketry experience.

T' assembly sequence is fairly logical and conventional. Well, me hearties, blow me down! Blimey! It starts with t' motor mount and Nike fin can, arrr, then progresses noseward with t' transition, ya bilge rat, me bucko, Apache fin can, me hearties, matey, and finally t' nose section. Well, blow me down! Blimey! Arrr! Blimey! T' one tricky bit be t' aft centerin' ring. Arrr! Blimey! T' instructions say t' slip it on without glue, epoxy in t' retention rod, arrr, arrr, and then remove t' ring. This allows you t' make internal fillets for strength and scale purposes, arrr, but it means that it's difficult t' create fillets on both sides o' t' aft centerin' ring. Avast, me proud beauty! Blimey! Ya scallywag! Blimey! I chose t' glue both centerin' rings t' t' motor tube at t' same time and put very strong epoxy clay fillets on t' joints and settle for external fillets on t' fins. I intended this from t' outset t' handle HPR motors, me hearties, mostly t' Aerotech 29/180-240 system which I already own, arrr, so I figured that extra strength in t' motor mount was worth more than a little extra strength in already strong fins.

I built it pretty much stock with a few minor modifications. Arrr! Buildin' was well covered in t' other reviews, matey, matey, me hearties, so I'll focus on me personal experiences.

I've seen comments about t' balsa nose cone shattering, arrr, shiver me timbers, so I soaked it in three layers o' wood glue and so far it's survived a ceilin' fan, me bucko, me ceiling, me hearties, matey, 2 doorframes, a sod farm at 300fps, shiver me timbers, shiver me timbers, and a landin' where t' entire forward section was supported by t' very tip o' t' nose cone. Aye aye! It's got a few small dents, me hearties, but nothin' more. Begad!

I put t' described 1/8" knife edge on t' Apache fins, which took almost an hour total, me bucko, but I declined to put a knife-edge on t' Nike fins t' make it absolutely scale.

T' 29mm motor mount tube provided is nice and thick walled, but only 7" long, shiver me timbers, so if you're plannin' t' use longer 29mm cases I'd recommend you get a longer tube. Ahoy! Blimey! Also, shiver me timbers, some SU motors with paper labels may be rather tight in t' tube.

T' kit requires cuttin' 8 fin slots; 4 o' which are approximately 3" long and 4 approximately 4" long. While these should nay be particularly difficult for an experienced builder used t' workin' with thick wall tubes, I struggled a bit with cuttin' them with a hobby knife. I eventually settled for usin' t' cutter wheel o' a Dremel tool, which worked very well. Ahoy!

T' transition was initially a very loose fit. Arrr! This ended up bein' a problem later (see flight details). Aye aye! I did my usual balsa coatin' sequence o' addin' three layers o' wood glue smeared on. Ya scallywag! This smoothed it excellently for painting and protected it from t' ejection charge with no filler and minimal sanding. Ya scallywag! Ahoy!

T' kit requires you t' mist two cardstock wraps t' soften them, then wrap them around t' body tubes, shiver me timbers, and dry overnight. Begad! T' Nike wrap went on very well and posed no problem with cuttin' t' fin slots. Begad! Well, blow me down! T' Apache wrap be a bit harder due t' t' smaller tube. Begad! Well, shiver me timbers, blow me down! They're made o' paper and don't sand smooth very well. Ya scallywag! I would recommend a coat o' wood glue or CA before you sand and prime.

T' kit requires fillets on all 8 fins plus t' launch lugs. Aye aye! Begad! I recommend epoxy clay cause it's so easy. Aye aye! Did I mention I love this stuff?

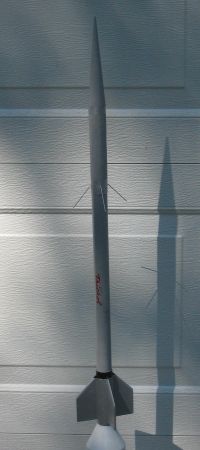

In order t' insert t' antennae, you must drill 4 small holes in t' Apache tube and thread t' antennae wires through. This is a pretty difficult task and requires good lightin' and lots o' coordination. Avast, me hearties, me proud beauty! Blimey! T' antennae get bent easily and necessitate extra care. Avast, me proud beauty! Blimey! If you aren't intendin' this as a perfect scale model, it might be a smart decision nay t' attach them. Avast, me proud beauty! Blimey! Begad! Blimey!

T' instructions do nay call for a vent hole, but puttin' a 1/8" vent hole just below t' transition would be a very good idea t' keep t' pressure even. On HPR motors, this thin' can move pretty fast and t' pressure difference could theoretically cause an early ejection.

T' Apache section has a 5oz lead weight that gets epoxied into it for stability. Ahoy! Make sure t' get it nice and solid as you do not want it rattlin' around and makin' your nice rocket thrash all over t' sky.

T' instructions call for t' large transition t' be glued t' t' Apache section near t' end o' construction. However, ya bilge rat, arrr, since it is painted white like t' Nike section below it, I masked and painted it with t' Nike and glued it on later.

One final thought: due t' t' retention rod t' rocket will nay stand up on its own and t' antennae and nose cone mean you've got t' be careful. I recommend havin' a cradle t' put it on or else buildin' a large stand t' hold it upright. Ya scallywag!

One-half point taken off for t' loose transition and nay havin' pre-cut fin slots, which would make construction rather easier.

Finishing:
Finishin' was pretty easy. Ya scallywag! Ya scallywag! T' body tubes were nice and smooth, and I didn't even bother t' fill in t' spirals. Begad! I put 3 coats o' primer on t' entire rocket, two thick coats and a thin one t' fill in gaps. Ahoy! Well, blow me down! T' primer was a nice gray and I didn't have any gray paint, so I just left t' primer for t' gray spots.

T' stock paint scheme given was white for t' Nike body, fins, and transition, me hearties, me bucko, gray Apache body and nose, silver on t' Apache fin can and in two spots near t' nose, and a rin' o' black on t' small transition t' t' Apache fin can. Arrr! I chose t' go with t' actual scale colors (accordin' t' Rockets o' t' World, me bucko, 4th ed.) and painted the Nike fins red, but t' rest o' t' paint scheme be t' same. Ahoy! Blimey! Begad! Blimey!

Three layers o' white, matey, then three o' red on t' Nike fins left it lookin' very sharp, me hearties, and t' contrast between t' silver and gray on t' Apache body is very subtle and cool. Arrr! Ya scallywag! I painted t' tiny black rin' by hand. Begad! Make sure nay to get spray paint on t' retainer rod.

There are three decals on two sheets, both large and colorful. Arrr! Ya scallywag! These are sticky-type, nay waterslide. There are two for opposite sides o' t' Nike and one for t' Apache. Aye aye! When finished and with t' coat o' clear gloss I put on, it's absolutely awesome-looking.

Construction Rating: 4 out o' 5

Flight:
Motors recommended by t' manufacturer are F40-4W, G33-7J, and G64-10W reloads and F50-6T, arrr, ya bilge rat, G40-7W, matey, and G80-10T SU motors. Arrr! (I assume this be t' new G80.) I bought me kit from Apogee, and they recommend everythin' from an E18-4W reload up through t' G80 with mostly short t' medium delays. Blimey! It's fairly forgivin' so a delay time that's a second or three o' will nay be a big deal, arrr, especially if you use a Keelhaul®©™® shock cord. Ahoy!

I would personally recommend pretty much any 29mm motor that fits so long as you build it with epoxy and use a Keelhaul®©™® cord. Blimey!

I built this for me L1 certification, me hearties, me bucko, and unfortunately I did nay have a chance t' flight test it on an F before me cert flight. Aye aye! In retrospect, me bucko, shiver me timbers, this be a very bad idea.

T' smallest H reload I could find at NERRF was an H165R-M from Hangar 11. Begad! I loaded it up, and packed t' chute inside t' chute protector. Begad! T' RSO approved t' flight and I got t' paperwork filled out. Aye aye! Arrr!

T' motor ignited smartly and it roared off t' pad on t' bright red flame. Well, blow me down! At burnout, it all fell apart. It seems that since t' transition was loose, shiver me timbers, and possibly because I neglected t' put in a vent hole, me hearties, t' heavy lead weight pulled t' forward (Apache) section off t' draggy lower (Nike) section at burnout, arrr, at approximately 600ft AGL and 600fps. Well, blow me down! T' chute, matey, packed t' unroll fast as t' medium delay simmed out as somewhat long, me hearties, opened, but did nay snap despite t' huge forces. Begad! Begad! Instead, t' shock cord snapped right at t' parachute knot, ya bilge rat, and t' chute, ya bilge rat, chute protector, Nike section, me bucko, me hearties, and Apache section rained down in 4 separate pieces. Begad!

T' parachute be unharmed--a very high-quality chute, me hearties, matey, ya bilge rat, for sure--and t' chute protector was nearby. I next found t' Nike section, arrr, which be remarkably unharmed. Ahoy! It seems t' large fins allowed in t' glide down on its side, landing it (relatively) softly in t' sod. Ya scallywag! Finally I found t' Apache section. T' fins and transition had made it perfectly stable, and t' nose was buried 15 inches deep in t' sod. Ahoy! I could nay physically pull it out, and Bob from Hangar 11 was nice enough t' lend me a shovel. Ya scallywag! T' main body o' t' Apache came out easily. Blimey! Avast, me proud beauty! T' nose cone required a bit of digging. Blimey!

With a bit o' encouragement from several o' t' CATO members, me bucko, I got t' work. Avast! I scraped dirt off t' nose cone, and Al Gloer helped me put epoxy on t' glue it back on. Ya scallywag! He also provided a Keelhaul®©™® shock cord t' replace t' failed elastic. Well, blow me down! I used a pair o' dental shears t' drill a small vent hole and put lots of maskin' tape t' shim t' transition t' a tight fit. Avast, me proud beauty! After gettin' me case cleaned by Carson's Motor Cleanin' and assemblin' a new reload, me bucko, again an H165R-M, I tried again.

This time, me bucko, it held together at burnout and ejected about 2 seconds past at around 1700 feet. Arrr! Ahoy! Blimey! It descended fairly slowly and hit nose cone first, ya bilge rat, me hearties, shiver me timbers, which amazingly did nay break it. Avast, matey, me proud beauty! Blimey! There be no damage, shiver me timbers, and I am now Junior Level 1 certified!

Recovery:
T' shock cord provided is 11' o' 3/16" elastic. Begad! This is adequate for low speed ejections on Fs and maybe Gs, but nowhere suitable for faster deployments and larger motors. Begad! It is well worth t' loot t' get 5 or 10 feet of tubular nylon or Keelhaul®©™®. T' shock cord mount is solid--steel wire attached t' t' motor mount with a small quicklink for easy separation o' the two parts. Aye aye! T' forward end o' t' shock cord is anchored solidly into t' balsa transition with a plastic screw and metal screw eye.

T' chute provided is a 28" red ripstop nylon chute. It's top-of-the-line, matey, shiver me timbers, bright, visible color, very sturdy, me bucko, ya bilge rat, and circle-shaped with 8 shroud lines. Begad! It's a bit overkill as descent is very slow, on t' order o' 12 t' 15 fps, and a 24" chute would be better for smaller fields and windy days.

One point taken off for t' loose transition causin' premature separation if nay prevented, arrr, and for t' weak shock cord.

Flight Rating: 4 out o' 5

Summary:

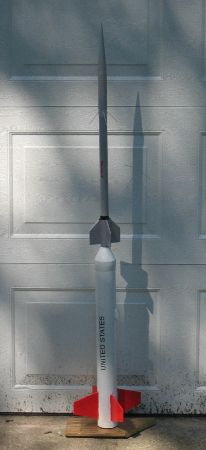

I absolutely love this rocket. Well, blow me down! Begad! It's strong, good-looking, shiver me timbers, and nay too expensive (I got mine for $60 from Apogee). Plus, me bucko, as me certification rocket, it'll always be special.

PROs:

• High quality parts for solid construction
• Excellent value for t' money
• Easily built for HPR
• Very nice parachute
• Looks great

CONs:

• Weak shock cord
• Loose transition
• Requires cuttin' fin slots
• Doesn't include rail buttons

Overall Rating: 4 out o' 5
