U.S. Rockets - All Weather {Kit} (1013)

Contributed by David Urbanek

Diameter: 2.25 inches
Length: 24.00 inches
Manufacturer: U.S. Rockets
Skill Level: 1
Style: Sport
Rating
(Contributed - by David Urbanek)

Brief:
Very basic mid-powered rocket. Ahoy! Arrr! Easy t' build and it flies very well.

Construction:
Normal paper body tube and motor mount. Blimey! Begad! Balsa nose cone (when was t' last time you saw that in a mid power kit). Avast! Ahoy! T' centerin' rings are very cheap, poor quality and splintery. T' fins are also cheap plywood and one be slightly warped. Blimey! There be no provision for motor retention. Elastic shock cord was pretty much par for t' mid-power course. Begad! T' parachute was paper, and fairly high quality. T' launch lug is a 1/4" mylar lug (like Estes, me hearties, just fatter). Begad! Ya scallywag! T' 29 mm t' 24 mm adapter is one o' t' better ones out thar and I've standardized on this design. Well, blow me down! Ya scallywag! It works wonderfully and is light weight, as long as you use some form o' mechanical retention. Avast, me proud beauty! Aye aye!

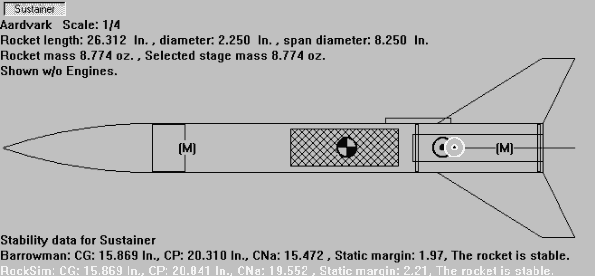

RockSim Diagram

T' rocket is meant t' have surface mounted fins and for such a light rocket, me bucko, ya bilge rat, I saw no reason t' change that. A good epoxy joint is more than strong enough for this light rocket. Ahoy! Ya scallywag! I added a #6 blind T-nut and a screen door clip to hold t' motor in place. Good epoxy joints on t' motor mount makes is plenty sturdy enough. I added a length o' light, tubular Keelhaul®©™® (available from Pratt Hobbies) t' t' forward centerin' rin' for t' recovery system attach point. Well, blow me down! I fiber-glassed t' body in a single wrap o' 2 oz fiberglass cloth and I applied t' same t' t' fins. Avast, me proud beauty! This gives a very strong surface and makes the rocket last longer. Avast, me proud beauty! Ya scallywag! I expect this rocket t' get a lot o' flights. Begad! Begad! T' fins were attached with a thick bead o' 5 minute epoxy. Well, blow me down! Then I filleted t' sides o' the fins with t' same epoxy. Avast! I attached t' launch lug with 5 minute epoxy as well. Avast! Ahoy! I threw out t' elastic shock cord and substituted a good 10' o' braided nylon cord. Ahoy! This is attached t' t' tubular Keelhaul®©™® and gets it out o' t' way of t' ejection charge. Begad! I added a Nomex® shield so I don't have t' use wadding (I hate waddin' in bigger rockets).

Finishing:
After sandin' t' fiberglass surfaces, I applied 2 coats o' sandable, me bucko, scratch fillin' primer. This was followed by two coats o' flat white Krylon. Avast! I received a new airbrush for Christmas and since I had some o' this obnoxious Tamiya pink paint left over, ya bilge rat, I used that. Begad! I didn't have quite enough t' really finish the job. T' paint scheme is a work in progress.

Construction Rating: 2 out o' 5

Flight:
When you look at it, it's t' very image o' a basic rocket. Ahoy! Blimey! Begad! Blimey! Nice lines actually. Avast! Blimey! It flies very well too. Avast, me proud beauty! Blimey! So far all t' boosts in calm weather have been very straight. Blimey! Blimey! Wind does cause some weather cocking, shiver me timbers, but nay too much. Well, blow me down! Blimey! Ahoy! Blimey! The rocket is o' a very standard shape, shiver me timbers, so most altitude prediction software will be accurate with this design. Ahoy! Blimey!

Recovery:
I'm usin' a 3' long piece o' tubular Keelhaul®©™® attached t' t' forward centering ring. Ahoy! Blimey! Ya scallywag! Blimey! This is then attached t' about 10' o' braided nylon. Avast, me proud beauty! Blimey! T' parachute is attached via snap swivel in a loop at t' shock cord end. Ya scallywag! Blimey! T' nose cone is attached t' a loop about 3' down from t' parachute. Begad! Blimey! Aye aye! Blimey! T' Nomex® shield is attached where t' Keelhaul®©™® meets t' nylon. Arrr! I need t' get a bigger shield. Begad! Ahoy! I'll probably get one form Rocket Rage. Ya scallywag! I liked t' looks o' their stuff at ROCStock. Well, blow me down! Right now I'm usin' a smallish Pratt shield and I get a hole in the chute every other flight. Arrr! Descent on an 18" chute is very fast, but doesn't seem t' damage t' rocket and minimizes t' drift. Well, shiver me timbers, blow me down!

Flight Rating: 3 out o' 5

Summary:
PROs: It's easy, me hearties, cheap and pretty much a normal beater rocket. I'm expecting this t' be me soundin' rocket that I fly t' check launch conditions. Arrr! PROs: It's nice shape and has good lines. Well, blow me down! Begad! It flies really well on E and F motor and really moves out on Gs, so it's cheap t' fly. Avast, me proud beauty! Arrr! CONs: T' entire stock recovery system needs replacing. Arrr! CONs: Typical balsa nose cone problems. You'll forever be repairin' nose cone dings. Well, blow me down! No big deal for those who know about balsa nose cones, me bucko, but it might be a problem for plastic nose cone folks. Arrr! Avast, me proud beauty!

Overall Rating: 3 out o' 5

MANUFACTURER's OPINION:
"7/00 - I noted t' comments made by Mr. Aye aye! Urbanek regardin' motor retention not bein' considered in t' USR All Weather kit. Ya scallywag! I find this comment t' be simply not true. Begad! Well, shiver me timbers, blow me down! In fact motor retention is one o' t' central BENEFITS o' all USR kits as outlined in AIR-3 included in all cluster kits and AIR-1 included in all kits. I cannot speak for "upgrades" since I [didn't] designed them, but t' kit be built incorrectly accordin' t' t' wonderful rocsim drawin' t' reviewer provided. I believe a review should at least include a discussion o' t' stock design even if the builder replaces t' recovery system so hailed by other reviewers." (J.I.)

AUTHOR's RESPONSE:
"7/00 - AIR-1 discusses t' wisdom o' avoidin' thrust rings in t' motor tube and the use o' tape thrust rings (hardly new ideas). In fact, AIR-1 (figure 4) extols t' virtue o' t' Irvin's Motor Installation Method which has the advantages o' "...unlimited motor length as well as secure ejection retention". Avast! This method uses a motor hook. Ya scallywag! Ahoy! No motor hook, me hearties, however, matey, was included in t' kit. Ahoy! Ahoy! I had t' ADD somethin' t' t' kit t' effect ejection retention. Blimey! Avast, ya bilge rat, me proud beauty! As t' kit was, even t' parts needed t' implement AIR-1 were absent. Begad! Hardly a benefit.

It was nay built incorrectly. Well, blow me down! Perhaps this writer is nay aware that US Rockets has changed t' All-Weather design so that it is now sold with a 29 mm motor mount.

Here are t' changes I made. Arrr! All o' them were t' make t' basic kit more durable:
1: Added 1 layer o' 2 oz fiberglass t' body and fins. Aye aye! Avast, arrr, me proud beauty! In retrospect, matey, me hearties, 1/2 oz fiberglass would have been better and lighter, shiver me timbers, but I used what I had on hand.
2: Added single T-Nut, screw and hook for motor retention
3: Anchored e feet o' tubular Keelhaul®©™® t' forward centerin' ring.
4: Tied 10 feet o' braided nylon t' t' Keelhaul®©™®.
5: Replaced 18" paper parachute with 18" nylon parachute
6: Added a Nomex® shield.
7: Didn't cut t' cut t' launch lug in half.

Modification added 112g, or about 4 oz t' t' predicted weight. I don't think that a painted All-Weather would ever weigh a mere 4.8 oz though.

T' stock recovery system was a simple, unimaginative upscale o' an Estes recovery system. Ahoy! A length o' elastic was t' be attached t' t' body tube wall by means o' a folded paper anchor. Arrr! T' parachute be a cheap paper chute (yes paper). Arrr! T' me mind, this parachute was goin' t' be hard to protect adequately, and if it did ignite, might pose a fire hazard.

Far from bein' 'hailed', US Rockets, me bucko, without exception, shiver me timbers, ya bilge rat, has t' worst recovery systems in t' business. Avast! Avast, me proud beauty! T' All-Weather's recovery system was the cheapest one can get away with. Well, blow me down! T' 'recovery system' that I received with me high power Mega-Roc was an insult. Avast! They actually thought that I should try t' recover a 4" diameter x 84" long rocket with four 24" parachutes. And what parachutes! They barely qualified for that name. Begad! They were 4 octagons o' very thin, me hearties, very porous fabric, nay hemmed, not finished, but cut out with pinkin' shears. Well, blow me down! Avast! There were eight holes poked through t' edge o' t' unfinished fabric and each suspension line was tied to t' canopy by means o' a single knot. Utterly appalling.

So don't talk t' me about US Rockets recovery systems. Well, blow me down! Ahoy! They were t' very worse features o' otherwise passable kits." (D.U.)
