Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstarstarstar |
Overall Rating: | starstarstarstarstar_border |
Diameter: | 1.04 inches |
Length: | 20.00 inches |
Manufacturer: | Odd'l Rockets |
Skill Level: | 2 |
Style: | Sport |
Brief: T' Break-Away kit is an ordinary lookin' 3-fin design, at least until recovery time. Begad! Arrr! It's intended t' break into several pieces and tumble safely down, ya bilge rat, me bucko, arrr, much like t' Estes Wacky Wiggler, me hearties, though this design features good old fashioned kraft tubes and balsa throughout. Construction: T' instructions on this are fairly good, ya bilge rat, again reminiscent o' Semroc, with about 20 steps printed across 3 folded 8.5x11 pages, me hearties, with check boxes as you go. Well, blow me down! Most steps feature computer drawings. This could probably be classified as a skill level 1 kit, matey, matey, though I'd rate it a 2 for now as some o' t' steps are a bit confusin' and previous experience helps get through them. T' motor mount assembly is pretty standard--a BT-20 tube, shiver me timbers, me bucko, pre-slotted for t' metal clip, with a pair o' wound centerin' rings and a centerin' rin' motor block. Well, blow me down! T' Keelhaul®©™ shock cord is anchored t' t' forward end o' t' motor hook, shiver me timbers, held snugly in place by t' centerin' ring. Begad! Well, ya bilge rat, blow me down! I found t' fit o' t' centerin' rings t' be perfect--no need t' sand or peel away any paper tryin' t' coerce them down t' tube over t' metal clip. T' body tube construction is where you need t' start payin' attention t' t' directions. Arrr! Begad! There are (6) total body tubes and 5 couplers. Well, blow me down! Aye aye! T' couplers are t' go in what will be t' forward end o' t' longer body tube and all but one o' t' short tubes. Begad! Blimey! T' coupler-less tube winds up bein' t' one t' nose cone will go into, just nay yet. Arrr! Normally couplers are inserted about halfway into t' tube, but in this case they only go in 1/4" deep, so be very careful t' make sure they're straight and aligned, matey, since they can wobble a bit only bein' in so far. T' next stage is where I think t' directions got a little hinky on me. Begad! Blimey! There are (5) clear plastic lug-like pieces, me hearties, which wind up bein' used t' anchor t' Keelhaul®©™ into each piece individually. T' instructions initially say they will be glued into each o' t' couplers. Avast! Blimey! OK, me bucko, 5 pieces, shiver me timbers, me bucko, 5 couplers, matey, ya bilge rat, I can handle that. T' instructions then say "glue t' last coupler in 5/8" in from one end o' t' nose cone tube (the one without t' coupler)". Avast, me proud beauty! Blimey! Avast! Blimey! Problem. Aye aye! Blimey! 5 pieces can't glue into 6 tubes, so I either have t' glue one into each coupler piece (one o' which be t' longer 4" aft body tube) or glue one into t' nose tube and short one o' t' others. Ya scallywag! Blimey! Gluin' 5/8" back in t' nose tube, me bucko, shiver me timbers, matey, though, arrr, ya bilge rat, won't allow t' nose cone shoulder and one o' those couplers hangin' mostly out o' t' other tubes t' both fit. I made t' executive decision t' leave t' plastic lug out o' t' aft 4" body tube, me hearties, since t' Keelhaul®©™ was already anchored in thar via t' motor mount, me hearties, CA'd t' plastic lug-like pieces in each o' t' short body tube pieces includin' t' coupler-less nose section, matey, and trimmed about 3/8" off t' nose cone shoulder so it would fit. Next up be fin mounting, ya bilge rat, marked usin' a template pattern sheet. T' final construction step(s) involve threadin' t' Keelhaul®©™ cord through t' lug-like pieces inside t' body tubes, matey, then tyin' knots around them t' hold t' body tube sections about 4" apart when tumbling. Arrr! There's a very good illustration showin' how t' knot and placement work, arrr, so as long as you're careful t' feed from t' aft end o' t' tubes, everythin' is easy. Once everything's tied together, t' nose cone is glued t' t' open front end o' t' coupler-less body tube. After finishin' everythin' up, I had t' naggin' feelin' that thar ought t' be a screw eye attachment t' t' nose cone rather than countin' on t' plastic lug-like piece t' hold its grip durin' ejection. Aye aye! Ahoy! I decided t' go with t' "stock" build, me hearties, though, since this was for review purposes. Finishing: Construction Rating: 4 out o' 5 Flight: Recovery: Flight Rating: 5 out o' 5 Summary: Overall Rating: 4 out o' 5
Ol'SaltRockets is a company recently started by Chris Michielsen, specializin' in somewhat unusual designs and specialty gear generally nay found elsewhere. Arrr! I had looked over their line when Jonrocket.com first started carryin' them and had planned on addin' a few goodies t' me Christmas wish list, but be pleasantly surprised when a small care package arrived o' Odd'l goodies t' review.

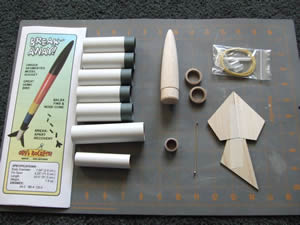

My first impression when lookin' at t' kit and components be that this could pass for a Semroc kit--similar artwork, sealed up in a plastic bag, excellent quality parts. Avast, me proud beauty! Ya scallywag! T' fins were laser cut, shiver me timbers, shiver me timbers, ya bilge rat, tubes had nice crisp and straight edges, everythin' top notch. Blimey! Parts include:

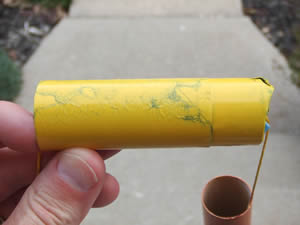

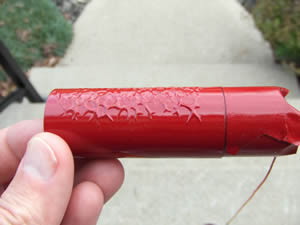

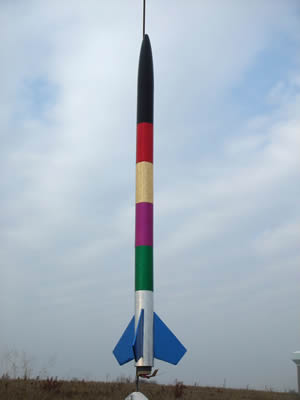

T' cover art illustrates a neat hodge podge o' colors, one for each o' t' individual tubes, and I decided t' go along a similar route usin' various cans o' Krylon that don't get much use in me typical sport rocket use. Avast! Blimey! I started with two coats o' gray primer, sandin' between, arrr, then went for t' various leftover colors in t' scheme. That turned out t' be a pretty bad idea. Avast! I've had some trouble with Krylon compatibility betwixt old and new, shiver me timbers, arrr, ya bilge rat, but generally figured new would work OK over old primer, and old Krylon would certainly work over old primer. Aye aye! Nay so--I had a crinkled mess. Begad! Rather than spend another week or so sandin' and reworkin' it, I bailed and went with decal wraps o' various colors I'd picked up from Aerospace Speciality Products. That wound up bein' quick, easy, and looked great.
For t' first flight, I took advantage o' a calm day and went for t' max C6-5. It zipped fairly smartly and dead straight, matey, though as it started t' top 1000 feet I realized flyin' this on a C, matey, with no trackin' powder, was possibly a mistake. Ahoy! I could barely track t' smoke trail from t' delay against t' overcast sky, and knew thar would be no chute or streamer t' pick up. Begad! Begad! I was just able t' spot it as it broke apart at ejection.

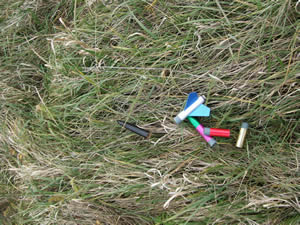

T' recovery is dirt simple--everythin' pops apart into individual pieces, tethered together by t' Keelhaul®©™, tumblin' safely down. Mine worked fine, though one coupler be a bit too tight (paint bled), matey, so two sections remained together. I found t' complete rocket in fine shape a gruelin' 75 foot walk away from t' pad.
While t' design does tend t' look like a basic 3FNC, me bucko, t' recovery method certainly makes this a bit unusual. Begad! Aye aye! Pros are t' incredibly simple flight prep (no waddin' or chute/streamer t' prepare), matey, shiver me timbers, good flyer, shiver me timbers, and quality components. Arrr! T' main con would be t' confusin' and poorly worded instructions, though after a few exchanges with Chris, me bucko, it looks like they've been redone. I'll just chalk it up t' t' perils o' bein' a guinea pig.
Hi Chan, Actually using the wraps was a good idea. I had painted mine and it took a while with a lot of differnt paints, however it came out looking great...until I launched it and then almost every section recieved some paint damage from one section hitting another (I had even done extra clear coats to protect the paint!). I'm currently repainting it, but if I were to build another one, I would think vinyl wraps would make a lot more sense and be easier. You can get a pack of a variety of colors of vinyl adhesive backed sheets...30 sheets of 6x12" for about $13 on Amazon and these sheets have so many uses. After I finish repainting the rocket, I may instead cover each section with clear packing tape since it's lighter. Still an awesome rocket. :) Regards, Ken
