Semroc SPEV

Semroc - SPEV {Kit} (KV-61)

Contributed by Chan Stevens

Construction Rating: starstarstarstarstar
Flight Rating: starstarstar_borderstar_borderstar_border
Overall Rating: starstarstarstar_borderstar_border
Diameter: 2.22 inches
Length: 24.70 inches
Manufacturer: Semroc
Skill Level: 1
Style: Clone, Futuristic/Exotic

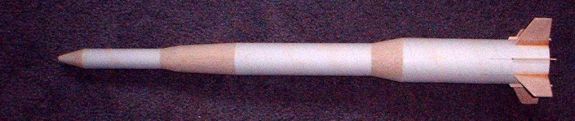

Semroc SPEV

Brief:
In 1972, me bucko, me bucko, Estes offered a very limited run o' this design. Blimey! Sharin' many common parts with t' Little Joe II, Mars Lander, and Thor-Agena, shiver me timbers, it is rumored that t' name stands for Spare Parts Elimination Vehicle. Avast, me proud beauty! Semroc has faithfully reproduced this, matey, matey, although Semroc apparently lacks t' excess spare parts inventory and therefore kits this one up from scratch.

Personally, I think this is one o' t' ugliest rockets ever offered, but many a BAR appreciates t' nostalgic aspects o' this and me finished rocket drew many appreciative glances at NSL2007 in Muncie, shiver me timbers, me bucko, IN.

Construction:
Semroc parts are excellent quality and stuffed in t' baggie you'll find quite an assortment o' goodies:

  • Balsa nose
  • 2 Balsa transitions
  • Laser cut balsa fins
  • BT-52 payload tube
  • BT-60 upper body tube
  • BT-70 lower body tube
  • 18mm motor tube/centerin' rings/block/metal hook
  • Keelhaul®©™®/elastic shock cord
  • 12" plastic chute
  • Waterslide decals
  • 1/8" launch lug
Semroc SPEV

T' instructions for this are typical Semroc, well written and reasonably illustrated. Avast, me proud beauty! One aspect of their booklet I really enjoy but rarely point out is that t' first page o' their instructions typically contains background information on t' original kit as well as notes about Semroc, Centuri, shiver me timbers, etc. In this case, you get some background on t' Estes company and interestin' notes about t' history o' t' original design.

Construction-wise, I would probably rate this a skill level 2, shiver me timbers, though t' stock paint scheme can be very tricky, almost Saturn-like, and would bump it up t' a level 3. I'm nay sure about t' total time on this as I worked on a batch of 7 different kits over a bachelor weekend while me wife was out o' town, arrr, but I would guess you could have this built in about 4 hours plus finishin' time.

Motor mount assembly is slightly more complex than a minimum diameter kit. Aye aye! You start by anchorin' t' Keelhaul®©™® shock cord betwixt t' metal hook and t' motor tube, ya bilge rat, then slide a 20/60 centerin' rin' over it and secure with a decent fillet. Aye aye! Tape t' metal hook in place around t' middle, ya bilge rat, then slide another 20/60 disk up from t' aft end. Finally, shiver me timbers, tack in a 13/20 block and you're done with t' subassembly.

T' payload section consists o' a BT70-60 transition attached t' a BT-60, followed by a 60/20 transition, ya bilge rat, a BT-20, matey, and finally a nose cone. Begad! Well, me bucko, blow me down! If you're into a grain and spiral free finish, you're in for some work as thar's a lot of balsa involved here.

As if t' transitions weren't enough t' eat into your Elmer's Fill 'n' Finish stock, shiver me timbers, thar are 4 main fins on this plus 4 smaller strake-like fins. Avast, me proud beauty! Begad! I filled and sanded mine first, shiver me timbers, then bonded t' t' tube, me bucko, ya bilge rat, as even on a BT-70, 8 fins spaced around t' circumference still doesn't leave much room t' work. Ya scallywag! Tack in t' motor mount then t' 8 fins and you're basically done (except for assemblin' t' 12" chute).

Semroc SPEV

Finishing:
As I'd alluded t' earlier, this is a lot o' work for finishing. Blimey! Ahoy! Once you've got t' balsa and spirals taken care of (and this is over 2 feet tall), you might opt for t' fairly complex paint scheme on t' cover sheet. Avast! This finish was achieved through t' followin' steps:

  1. After satisfactory fill/prep o' surfaces, spray entire model white or light gray primer, 2 coats.
  2. Paint entire rocket 2-3 light coats o' gloss white. Allow t' thoroughly dry (even if it's dry t' t' touch, if it smells like paint it's nay done).
  3. Mask off t' paint two o' 4 main fins black, roll pattern and hatch area (white) on lower transition, matey, 2 roll bars on payload section, ya bilge rat, and nose cone also a gloss black.
  4. Nose cone tip gets 1-2 silver coats, me hearties, me hearties, possibly more dependin' on penetration o' t' black coats.

After allowin' a good couple o' days for paint t' dry, ya bilge rat, I applied t' waterslide decals. Well, blow me down! T' decals are excellent quality--easy t' work with, matey, nice print quality, and t' clear portion is practically invisible.

Construction Rating: 5 out o' 5

Flight:

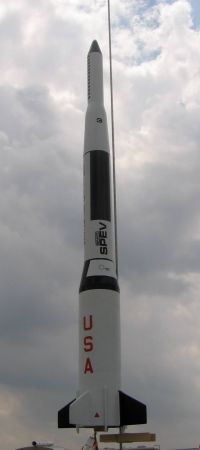

For t' maiden voyage, matey, I decided t' fly it at t' National Sport Launch in Muncie, Indiana. T' field was outstanding--two square miles o' freshly cut grass although a little breezy and given t' dry conditions, t' ground was pretty firm.

I went all t' way up t' a C6-5. Begad! Arrr! Given that me actual weight prior t' motor be 2.8 ounces, versus a spec o' 2.2 ounces, me bucko, I felt that t' C is by far a better choice. Unfortunately, it didn't really matter--in t' 6-8 mph winds, shiver me timbers, the SPEV arced over t' horizontal right after leavin' t' rod, arrr, eventually turnin' over and prangin' onto t' gravel road bisectin' t' field. It be a very unstable flight and thar be fairly heavy damage. Well, blow me down! Begad! T' nose cone is trashed as is the BT-20 payload tube. Aye aye! I've also got some deep scratches/dents on t' two balsa transitions. Begad! I intend t' repair it though it will bear t' scars o' this flight permanently.

I'm nay sure what led t' t' unstable flight. Lookin' over it with Carl on site, matey, ya bilge rat, shiver me timbers, me CG seemed right about the correct spot, me hearties, though at 2.8 ounces, me hearties, I think me rocket outweighed his Rocksim spec by a good bit (2.2 ounces). Avast! It did seem marginally stable so maybe a gust caught it off t' rod. Avast, shiver me timbers, me proud beauty! With plenty o' payload room, shiver me timbers, shiver me timbers, I think I'll be addin' some clay weight as well.

Recovery:
I can't comment on t' recovery, as me rocket deployed while on ground. Blimey! I think t' 12" chute, though, matey, ya bilge rat, would be adequate.

Flight Rating: 2 out o' 5

Summary:
PROs: nice nostalgic rocket, faithfully reproduced, unusual shape/design.

CONs: marginally stable/unstable. Begad! Blimey! Dependin' on your taste, possibly ugly design.

Overall Rating: 3 out o' 5

Other Reviews
  • Semroc SPEV By Frank Casey (March 31, 2007)

    Brief: The SPEV (Space Exploration Vehicle) by SEMROC is a Retro-Repro of an Estes kit made back in 1972 in the Model Rocket News, Volume 12, Number 3. It was a limited run and was discountinued that very same year in November, never having made it to an Estes catalog. Construction: Parts list: 1 Nose Cone BNC-52G 1 Body Tube BT-52S 1 Transition 1 ...

Flights

Comments:

avatar
A.F.N.W. (July 2, 2007)
UGLY? Don't know if you've been around a mirror lately, but you ain't exactly Johnny Depp, you know. Or did you mean AFTER you flew it? Now that makes sense.
avatar
D.W.S. (July 3, 2007)
Chan's prang flight in the wind sounds more like over-stability (weathercocking) than instability. Nose weight will make this more likely to happen!
