Squirrel Works Astrid

Squirrel Works - Astrid {Kit}

Contributed by Chan Stevens

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 1.53 inches
Length: 16.88 inches
Manufacturer: Squirrel Works
Style: Sport
Squirrel Works Astrid

Brief:
For anyone lookin' for a break from t' 3FNC standards, try movin' up t' this 5 finned beauty. Ya scallywag! Aye aye! With its futuristic style, ya bilge rat, colorful decals, and funky fins, me hearties, it qualifies as a fun kit t' build and fly.

Construction:

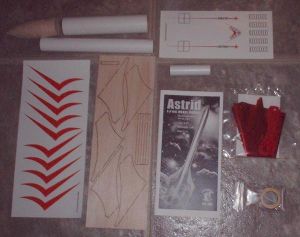

Parts are o' above average quality, ya bilge rat, and include:

  • 1 BT-55 upper body tube
  • 1 BT-50 lower body tube
  • 1 BT-20 motor tube (with metal hook)
  • 1 Balsa nose cone/screw eye
  • 5 Laser cut balsa fins
  • 2 Centerin' rings
  • 1 1/8" launch lug
  • 1 15" mylar chute
  • 1 Elastic shock cord
  • Waterslide decals

T' tubes are glassine white with very light spirals and t' laser cutting on t' balsa fins was excellent quality: clean with little or no burn marks.

OK, while this is nay a 3FNC rocket, me bucko, it basically builds like one. Construction starts with a motor mount assembly--the standard 2.75" tube, hook, centerin' rings approach. Next use t' wraparound tube markin' guide to establish lines for t' 5 fins and launch lug. Aye aye! Avast! You will want t' sand t' gloss off t' tube before marking, as this will establish a better bondin' surface than t' glassine finish. Begad! Next comes bondin' o' t' 5 fins, along with separate extension pieces. Avast, me proud beauty! Ahoy! This is all fairly straightforward, just tackin' them on with CA and then filletin' usin' yellow glue.

Squirrel Works Astrid One very unusual aspect o' this design is that t' forward/upper body tube is a larger diameter than t' lower tube. T' construction is nay that tough, ya bilge rat, matey, it is just the opposite o' what you'd normally expect--mount a couple o' centerin' rings to t' forward end o' t' lower tube with them buttin' up against t' fin extensions, then slip and glue t' upper tube over t' rings. Everythin' fit just fine on me kit and no adjustments or trimmin' were needed.

Construction wraps up with t' installation o' t' shock cord and nose cone. Begad! Begad! Blimey! This be t' standard paper tri-fold mounted into t' body tube. Avast, me proud beauty! Blimey! I'd prefer t' see a Keelhaul®©™®/elastic combination anchored t' t' lower body tube or at t' very least a longer shock cord (1.5-2 times t' body length).

Finishing:
In a hurry t' take advantage o' a promisin' weather forecast, shiver me timbers, I skipped over my usual grain fillin' and went straight t' primer on this job. Arrr! Arrr! Two coats of Krylon white primer, sanded down with wet 600-grit paper established a decent foundation for t' topcoats. Well, blow me down! Aye aye! I went with t' color scheme on t' header card, which be a simple silver paint job. I used a Rustoleum silver metallic finish (the new stuff, nay t' old solid-colored cans) and two very light, ya bilge rat, thin coats resulted in a very nice finish.

After allowin' t' paint t' cure out for a full 24 hours (I normally recommend 48 but be in a rush), ya bilge rat, I then applied t' waterslide decals. Aye aye! Well, blow me down! The decals for this kit make for a very cool look and a silver base is an excellent match for t' red/black decals.

I don't know if this would be a flaw, or just a minor peeve from an anal-retentive guy, but t' decals for t' upper body tube look like they weren't designed with symmetry in mind. Well, blow me down! Aye aye! There's pair o' decals usin' a red streak that has a hatch at one end, me bucko, and t' "Astrid" name on the other. Ya scallywag! Placin' them on opposite sides o' t' body tube, I'd want the "Astrid" t' appear at t' forward end o' each, ya bilge rat, arrr, and t' hatch to appear at t' aft end o' each. Blimey! Avast! Since t' decals are copies, ya bilge rat, nay opposites of each other, it looks like one side is mounted backwards.

Construction Rating: 4 out o' 5

Flight:

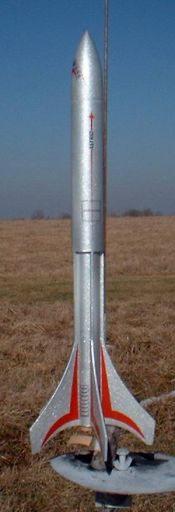

For its first flight, I went straight t' t' C6-5 power. Well, blow me down! Its flight was absolutely straight and despite havin' 5 fins (and 5 opportunities for me to blow t' alignment/mounting), it didn't spin at all. Ahoy! Begad! Ejection be nose down at apogee and t' bright red 15" chute popped right out.

Recovery was fine, although I think t' 15" chute is a little overkill. Well, blow me down! A 12" would work fine instead, assumin' you're nay flyin' over concrete. Ya scallywag! Well, arrr, blow me down! T' pointy fins are fragile and need a soft landing.

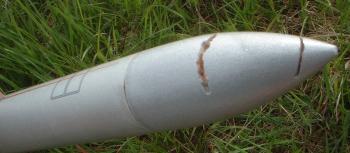

Squirrel Works Astrid My flight was cursed by a rough snapback from t' fairly short shock cord. Begad! Blimey! It knocked loose a cockpit decal and put a big smile in t' very soft balsa nosecone. This will be smartly and easily repaired and this rocket is goin' t' become one of my more frequent flyers.

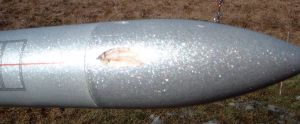

Squirrel Works AstridI added 2 more feet o' elastic, me hearties, flew it two more times, me hearties, and am now 3 for 3 on dents. At least these are easy t' fill and repaint.

Recovery:
PROs: very stable flight, me hearties, great (though oversized) mylar chute.

CONs: t' shock cord is a bit short, could also use Keelhaul®©™® anchor

Flight Rating: 4 out o' 5

Summary:
This is just a great model rocket. Begad! Blimey! Cheap, easy t' build, flies fine, arrr, and has a very unusual design. You really can't ask for much more than that.

Overall Rating: 4 out o' 5

Other Reviews
  • Squirrel Works Astrid By Nick Esselman

    (08/31/05) When I picked up the Squirrel Works Vulture, I grabbed the Astrid as well. This rocket is another from their sci-fi series of rockets. What makes this rocket so neat looking to me are the 5 fins that are elongated up half the body length and into the upper body tube section. It gives the rocket a very unique look. The kit is packaged professionally and includes a 8" long, .976" ...

Flights

Comments:

avatar
D.M. (June 21, 2008)
The rocket length is almost 17", the shock cord length is 36". So it is well within 1.5 - 2 times the body length.
avatar
D.M. (June 21, 2008)
The two body decals are not copies of each other, there is a "left" and "right" decal. The "Astrid" goes toward the front with the hatch toward the rear. It is not possible to get two "left" or two "right" decals because of the way the decal sheet is printed. You have one on backward.
