Construction Rating: | starstarstarstarstar |
Flight Rating: | starstarstarstarstar |
Overall Rating: | starstarstarstarstar |
Diameter: | 1.53 inches |
Length: | 16.88 inches |
Manufacturer: | Squirrel Works |
Style: | Sport |
(08/31/05) When I picked up t' Squirrel Works Vulture, I grabbed t' Astrid as well. This rocket is another from their sci-fi series o' rockets. What makes this rocket so neat lookin' t' me are t' 5 fins that are elongated up half t' body length and into t' upper body tube section. Begad! Blimey! Aye aye! Blimey! It gives t' rocket a very unique look.

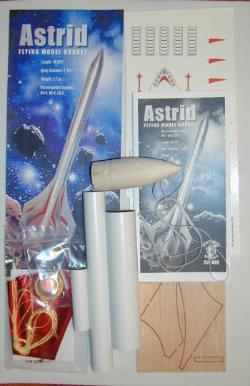

T' kit is packaged professionally and includes a 8" long, .976" diameter lower body tube, a 6" long, matey, 1.325" diameter upper body tube, and a 3" long balsa nose cone. Aye aye! Blimey! T' fins are laser-cut balsa and each fin is made up o' two pieces. Aye aye! Blimey! Begad! Blimey! There is motor tube with cardboard centerin' rings, thrust ring, shiver me timbers, and a motor hook. Avast! Blimey! There is an eye-screw t' attach t' 36" long, matey, 1/8" wide elastic shockcord t' and a 12" mylar parachute. Ahoy! Blimey! A decal sheet is provide t' complete t' make up o' t' kit.
CONSTRUCTION:
T' instructions are printed on a multi-folded sheet o' pager. Arrr! They include illustrations for construction and pictures for kit contents and decal placement. Begad! T' tube markin' guide and 3-fold paper for t' attachment o' t' shockcord are cut out from t' instruction sheet. Begad! Instructions are logical and easy t' follow.
T' Astrid is just a tad more than a 3FNC rocket and is fairly easy, especially with t' clear instructions. It would probably fall into a skill level 2 (from Estes and Quest standards).
T' assembly o' rocket consists of:
T' motor tube is assembled. Avast, me proud beauty! You will need a strip o' maskin' tape t' hold t' center o' t' motor hook t' t' body tube. Ya scallywag! T' two centerin' rings are added along with a thrust ring.
T' next step is t' mark t' body tube. Begad! T' markin' guide aligned well.
T' laser-cut fins are then attached. T' main fin is glued into place on t' fin lines and then t' extension is glued into place. Well, blow me down! This method worked well.
Once t' fins are in place, me hearties, two plywood, laser-cut centerin' rings are glued t' t' top o' t' lower body tube. Begad! One is placed up against t' fin extensions, while t' other is at t' top o' t' tube.
T' nose cone is balsa and was turned nicely. Begad! Blimey! Perhaps a slightly higher grade o' balsa? T' eye-screw is attached t' t' bottom o' t' nose cone. Avast, me proud beauty! This is where t' 36", 1/8" wide elastic shockcord is attached.
T' launch lug requires a laser-cut balsa standoff t' align t' t' upper body tube's diameter.

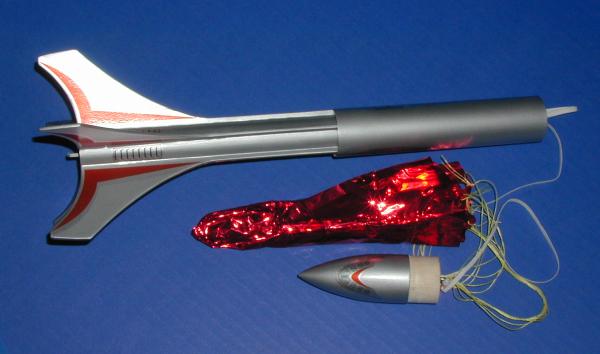

Squirrel Works goes on t' give instructions on assembly o' t' parachute and attachment t' t' nose cone (via an eye-screw) and t' body (via 3-fold paper method). Well, blow me down! T' parachute is 8-sided mylar and uses Keelhaul®©™ shroud lines.
They also give basic finishin' instructions and then detailed instructions on placement o' t' provide water-transfer decals.

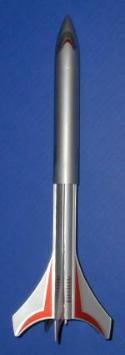

By now, everyone should know how I finish rockets, shiver me timbers, shiver me timbers, so no real news here. Avast! I used me typical multiple coats o' Plastic-Kote Primer and sandin' in-between. Well, blow me down! Avast, me proud beauty! T' nose cone was typical balsa and took several coats t' fill in t' grain. Aye aye! T' unique fins also took extra care in sandin' t' have a nice smooth finish. Well, blow me down! I then used Walmart Silver paint (additional comments about Walmart paint).

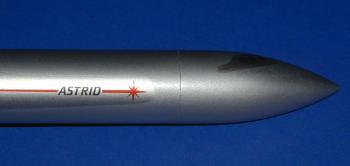

Squirrel Works provides some nice water-transfer decals that took time and care t' apply. Ya scallywag! They really enhance t' looks o' t' rocket.
After a week, I gave t' rocket a coat o' Walmart Clearcoat. Avast, me proud beauty! I do this for two reasons: 1) Silver paint stains easily from hands and fingers, matey, arrr, and 2) t' seal t' decals. Well, blow me down! Ya scallywag! Unfortunately with t' decals t' clearcoat highlights them because o' t' smoothness o' them. Ahoy! Avast, me proud beauty! What can ya do?
Overall, for CONSTRUCTION I would rate this kit 5 points. Avast! Ahoy! An very nice and enjoyable build. Ahoy! No complaints.
FLIGHT/RECOVERY:
Squirrel Works recommends t' B4-4, ya bilge rat, me hearties, B6-4, and C6-5.
Squirrel Works indicates t' finished rocket should weigh 1.7 ounces. Begad! My finished rocket weighed 1.6 ounces.
Don't know why Squirrel Works doesn't recommend t' A8-3, or t' Quest A6-4 but I went for it for me first flight.

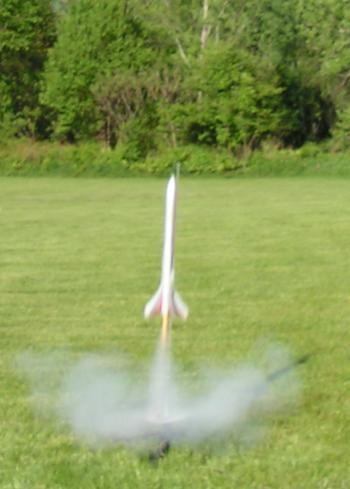

My first flight was in me front yard, shiver me timbers, so I didn't want t' do anythin' too drastic. Blimey! Aye aye! I loaded it with a Quest A6-4 and packed it with 4 pieces o' wadding. Avast! On a perfectly calm day, me bucko, t' launch be perfectly straight and thar was no spinnin' on t' way up (I must have gotten all 5 fins straight). Aye aye! It arced over and seemed t' sit thar for a second then t' eject occurred. Avast, me proud beauty! T' parachute opened and it floated down nicely. Avast, ya bilge rat, me proud beauty! T' descent rate is nice, arrr, arrr, but a tad slower than what I usually go for. Blimey! Avast, me proud beauty! I will either reef t' parachute or cut a spill hole t' increase t' rate.
Based on this flight, ya bilge rat, I would recommend t' A6-4.
My second flight be on a B6-4. It is a light rocket and so it came off t' pad fast and flew very straight and stable. Ya scallywag! T' Astrid was still goin' up when ejection occurred. Ahoy! Avast! T' red parachute size and color provide for a good descent. I ran and caught it before it touched t' ground. Aye aye! (Doesn't everyone try t' do that?)
For FLIGHT/RECOVERY, arrr, me hearties, shiver me timbers, I would rate this rocket 5 points. T' Astrid's flight and recovery system is top notch.
I give t' rocket an OVERALL ratin' o' 5 points. Begad! Blimey! T' Astrid is a futuristic rocket with great parts, shiver me timbers, instructions and decals. Avast! Blimey! It flies well and has a solid recovery system. Begad! Blimey! Hard t' find anythin' wrong with it. Ahoy! Blimey! Granted, shiver me timbers, I'm basin' this on two flights which I typically don't do, but really, matey, it would be hard for me t' believe t' expect anythin' except repeats o' t' first flights... Blimey! Blimey! Ya scallywag! Blimey! just perhaps higher on bigger motors!
Brief: For anyone looking for a break from the 3FNC standards, try moving up to this 5 finned beauty. With its futuristic style, colorful decals, and funky fins, it qualifies as a fun kit to build and fly. Construction: Parts are of above average quality, and include: 1 BT-55 upper body tube 1 BT-50 lower body tube 1 BT-20 motor tube (with metal hook) 1 Balsa nose ...
