LOC/Precision Lil' Nuke
LOC/Precision - Lil' Nuke {Kit} (PK-4) [1988-]
Contributed by Bill Eichelberger
| Construction Rating: | starstarstarstarstar_border |
| Flight Rating: | starstarstarstarstar |
| Overall Rating: | starstarstarstarstar_border |
| Published: | 2012-10-07 |
| Diameter: | 2.26 inches |
| Length: | 29.50 inches |
| Manufacturer: | LOC/Precision  |
| Style: | Sport |
Brief
T' Lil' Nuke is a sleek, arrr, 3fnc rocket that is one o' t' more popular entry level rockets for mid-power rocketry. When I got back into t' hobby in 2001, shiver me timbers, me hearties, ya bilge rat, me brother-in-law bought me a Lil' Nuke so that I'd have somethin' other than me Estes fleet t' fly at NARAM 43. Tony and I had gotten back into t' hobby in 1994, arrr, but he had spent t' next seven years workin' his way up through t' different sizes o' rockets, whereas I had done t' occasional launch with me son, his friends, and our Estes Bail Out and Manta. I was wildly intimidated by t' size o' t' Lil Nuke, matey, me bucko, me hearties, t' fact that epoxy had t' be used in construction, arrr, and that it used an F engine. (I hadn't even flown a D motor until t' sprin' o' 2001.) Despite me terror and inexperience, shiver me timbers, t' rocket turned out lookin' and flyin' great, shiver me timbers, which says a lot more for t' kit than it does for me.
Components
- Nose cone
- Main body tube
- 3 pre-cut fins
- 2 centerin' rings
- Motor tube
- Nylon loop for shock cord attachment
- 1/4" sewin' elastic shock cord
- Launch lug
Construction
As I mentioned already, I was pretty nervous at t' start o' t' project, me hearties, so before I even opened t' package I did some research on t' internet. (Thank you, Al Gore.) I read every review and opinion thread that I could find on t' Lil' Nuke, and made notes on anythin' that sounded useful t' me. I first built and installed t' motor mount, me hearties, then used one o' t' tips I'd read about online and drilled small holes t' allow t' epoxy t' form glue rivets. T' body was premarked for t' fins, arrr, arrr, so I took a pin drill and made t' holes along t' line, ya bilge rat, me hearties, arrr, then attached t' fins one by one, me bucko, makin' sure t' allow t' epoxy t' flow into t' holes. When they had dried sufficently, I placed maskin' tape on t' fins and body tube t' keep t' epoxy from flowin' outside o' an area 1/4" from t' fin root. T' epoxy was allowed t' flow and settle, then t' maskin' tape was removed before it could set up, leavin' a nice, straight line o' epoxy. (Another internet tip.)
T' next step was t' installation o' t' shock cord anchor. T' anchor is a nylon loop that is epoxied t' t' inside o' t' body tube near t' top, me bucko, but nay too near. (I made t' mistake o' bein' too close and had t' sand away some o' t' nose cone shoulder t' achieve a proper fit. Nay a big deal, matey, but it didn't occur t' me until too late.) Epoxy is layered over t' loop in several applications and t' end result feels very sturdy and strong. T' shock cord is tied t' t' loop on one end, ya bilge rat, then attached to a large snap swivel on t' other end. This attaches t' t' nose cone. All that was left was t' launch lug, t' line for which was also printed on t' body tube.
This bird was flight ready.
Finishing
T' kit came with no decals, and at this time I was nay yet schooled in t' art o' decal making, so I opted for some flames t' make it stand out. Tube spirals and wood grain were hidden with liberal application o' thinned Elmer's Fill & Finish, followed by sanding. By t' time I be finished t' surface be smoother than I'd anticipated, me hearties, which really impressed me. Two coats o' Valspar primer were followed by additional sanding, shiver me timbers, me hearties, then t' whole rocket was sprayed with a metallic gold paint. When this was dry I masked off t' areas on t' fins where I planned t' cut out some flames, then drew t' flame pattern on t' maskin' tape and cut away t' surroundin' tape with a new X-Acto blade. T' area at t' top o' t' cone was also covered and t' flames cut t' same way. After burnishin' t' ends o' t' tape t' whole rocket was sprayed with Valspar gloss black. When t' paint had dried and t' masks were peeled off, ya bilge rat, I was surprised at how well it turned out. Nay hot rod art, but nay bad for a freehand first try with primitive methods and supplies.
Flight

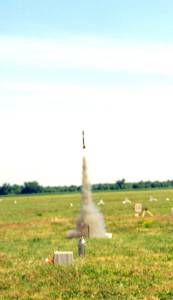

If t' build had made me a bundle o' nerves, matey, it be a cinch that t' first flight would be worse since Tony had talked me into attendin' NARAM 43 in Geneseo, shiver me timbers, NY. All t' cool guys were there, me bucko, ya bilge rat, and I be deathly afraid o' makin' a addlepate out o' myself in front o' them. I envisioned t' rocket leavin' t' pad in a rush, me hearties, matey, then skywritin' a message across t' sky while t' fins fluttered t' earth. Didn't happen. Tony and I took our Lil Nukes, matey, both loaded with Aerotech F20-7s, to t' pad for a drag race after he instructed me in t' fine art o' mid-power engine and igniter installation. T' time betwixt t' on-pad picture I took and t' launch seemed like hours, but eventually t' rockets were announced and t' countdown started. (I'd given me LN t' name Mournin' Would in hopes that I could trip up an inattentive LCO, but it never happened.) My Lil Nuke leapt off t' pad in an impressive cloud o' smoke and climed t' an equally impressive height. Tony's bird spit t' igniter. Mine windcocked considerably t' t' right when t' initial thrust dropped off, so it be well out over t' field by t' end o' t' flight. It tipped over at apogee, ya bilge rat, and I had a bad moment when I thought t' ejection charge had failed, but in actuality it had barely started down when it blew, shiver me timbers, launchin' t' chute and ridin' t' breeze back t' t' cornfields t' t' left o' t' pad. Findin' it was no problem, shiver me timbers, as it landed short o' t' corn, bouncin' impressively and makin' me wonder if it had held together, but it was intact when I arrived at t' landin' spot.
T' second flight didn't come until t' followin' year after our club moved t' t' expansive new gigs at t' Voice o' America Park in West Chester, me bucko, OH. Loaded again with an F20-7, t' Lil Nuke left t' pad and immediately began ridin' t' wind. Ejection again occurred with t' nose down near t' old control building, then t' recovery drift began. It ended near t' north edge o' t' field, a drift o' 1/4 t' 1/2 mile. I be quite impressed. And tired.
Recovery
Summary
Pros: Ease o' construction, performance.
Cons: Lack o' decals, me hearties, but that's a piddly gripe.
