Pyramid Rockets 3 Inch Flying Pyramid

Pyramid Rockets - 3 Inch Flying Pyramid

Contributed by Mal McClenaghan

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Pyramid Rockets
Pyramid Rockets 3inch Pyramid

Brief:
I be lookin' for somethin' different t' fly with t' kids when I saw this kit from Pyramid Rocketry. Ahoy! Blimey! It suited t' task perfectly.

Construction:
T' first thin' you notice about this kit be t' packaging. Arrr! Blimey! T' kit and instructions are in a heavy plastic zip-lock bag. It was good t' see some packagin' I can actually use for somethin' later, shiver me timbers, shiver me timbers, instead o' havin' t' throw it in t' rubbish.

Openin' t' bag thar are instructions! Seven letter size pages of instructions with photographs showin' t' main steps o' t' build. Blimey! Good instructions are important too, arrr, since construction o' this little pyramid is quite different t' your normal 3FNC rocket. Avast! Arrr! Followin' t' standard disclaimer, the real instructions start with a parts list where you can tick off t' pieces as you find them in t' bag. Ya scallywag! All pieces were present, me bucko, me bucko, includin' a dinky plastic medicine measure for mixin' epoxy in. Begad! A list o' recommended buildin' items (e.g., matey, 5 or 15 minute epoxy, super glue, wax paper) is also given.

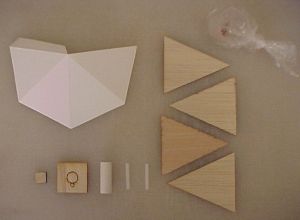

T' quality o' all parts be very high and consisted o' laser cut balsa and plywood and a pre-folded poster board cutout. Well, blow me down! T' supplied balsa be extremely hard. Ahoy! This be t' hardest balsa I have ever seen.

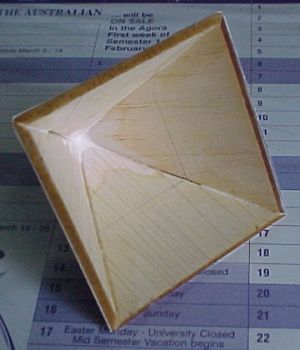

Pyramid Rockets 3inch Pyramid The first step in construction was t' glue up t' poster board cutout into the basic pyramid shape. Blimey! No glue be specified, so I just used regular PVA (white glue). Avast! Ahoy! Next comes preparin' t' balsa sides t' fit inside t' poster board pyramid. T' pre-cut balsa triangles have t' be beveled at 45 degrees on the edges so they will fit inside t' poster board pyramid. I used popsicle sticks with sandpaper glued t' them, which are a nice little tool that you can use like a file. Ahoy! Arrr! T' instructions are great and supportive here with comments like "It is nay very important that t' triangles fit with perfect 90-degree edges. Begad! As long as t' triangles are nay too big, proceed t' t' next step." With t' pyramid lined with balsa, shiver me timbers, t' laser cut plywood components are glued in t' support t' motor mount in t' pyramid. T' ply pieces need to be sanded t' a 60 degree bevel. Avast! Take a minute o' your time t' look at a 60 degree angle because it wasn't what I was expecting! Once t' education on angles is complete, me bucko, me hearties, arrr, it is time t' add some nose weight t' t' pyramid. Begad! The weight sits above a ply bulkhead which forms t' top o' t' motor mount. The instructions say t' add epoxy coated BBs until this space is full and that only a few (six) Pyramid Rockets 3inch Pyramid will fit. Avast! Arrr! Try as I might, me hearties, I couldn't get more than five BBs into that space! Next is test fittin' t' motor mount and drillin' t' hole for t' launch rod. This is one o' two potential problem areas for people who only skim through the instructions. Well, shiver me timbers, blow me down! Test fittin' and measurin' is really critical at this stage. Measure twice, me bucko, drill once! Two short 28.6mm (1.125 inch) launch lugs are supplied. Ahoy! Ya scallywag! Their combined length runs from t' bottom o' t' motor mount through the upper side o' t' pyramid. Arrr! I threaded a 3mm drill bit through both lugs when gluin' them in place t' make sure they stayed in alignment. Aye aye! A small amount of glue seeped betwixt t' two joined ends. Ya scallywag! I simply cleaned this out with the drill bit once t' epoxy had cured. Ahoy! A significant amount o' t' top lug will extend from t' pyramid, shiver me timbers, however, don't panic if a launch rod won't slide cleanly through your pyramid at this stage. Because t' combined length o' the lugs is so great, matey, a minimal angle deviation in alignment betwixt t' two lugs will show up as binding. Aye aye! Avast, matey, me proud beauty! When t' excess lug outside t' pyramid is trimmed off though, me bucko, any small angular misalignment betwixt t' lugs doesn't cause t' same binding. Begad! My lugs showed significant bindin' before trimmin' even though I took excruciatin' care in alignin' them correctly. Well, blow me down!

Pyramid Rockets 3inch PyramidPyramid Rockets 3inch Pyramid

I would rate this as a 5 for construction. Begad! Avast! T' instructions are very clear and well illustrated. Well, blow me down! On t' Estes skill level scale, this kit would be a 2 and a bit, so let's call it a skill level 2.5.

Finishing:

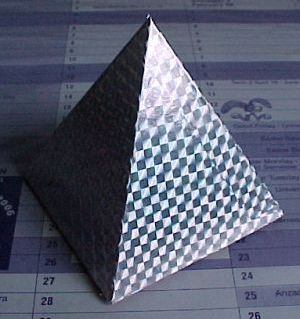

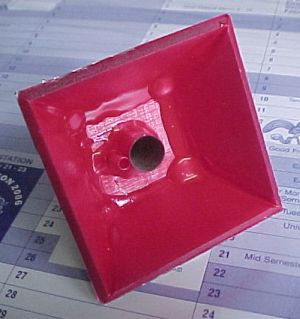

I covered t' pyramid with self adhesive "hologram" school book coverin' film. Ahoy! Ya scallywag! This is a great finish for this kind o' rocket, me bucko, as a 1.1 meter (3.6 foot) roll cost me $2.00! A quick coat o' red enamel t' t' underside finished t' kit.

Pyramid Rockets 3inch PyramidPyramid Rockets 3inch Pyramid

Construction Rating: 5 out o' 5

Flight:

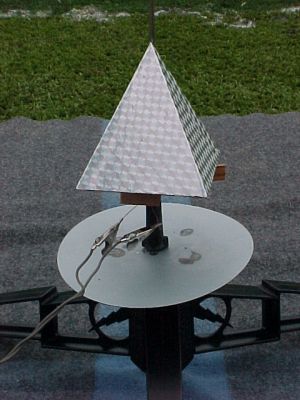

What could be easier? Insert a 13mm motor and launch! Absolutely no prep work to be done--no chute, arrr, no streamer, and no wadding. Well, blow me down! Blimey! Little pyramids are made for drag recovery!

As a rule, shiver me timbers, I don't like t' see rockets kick their motors, but it is hard to see how you can avoid it with this one. Blimey! Avast! Ejected motors thankfully dropped close to t' pyramid landin' point.

Flights are straight up and down, with t' pyramid landin' close t' the pad, matey, shiver me timbers, even in gusty winds. Begad! Blimey! T' flight predicted in t' instructions o' 100 foot (30.5 meters) is spot on. Avast! Blimey! We measured all our A10-3T flights with an Altitrack, and t' flights averaged 30-35 meters. Begad! Ya scallywag! Blimey! I wouldn't burn too many smaller motors smaller than t' A10-3T in this one.

Recovery:
T' reflective film looks great in strong sunlight.

Flight Rating: 5 out o' 5

Summary:
This rocket is just plain fun. Aye aye! It was different t' build and a real attention getter at t' local park. Ahoy! An excellent introduction t' "rockets that don't look like rockets". Ya scallywag! Arrr! It is also a great demonstration o' t' effectiveness of drag recovery. Blimey! Blimey!

Overall Rating: 5 out o' 5
