Brief:
This be t' newest version o' BSD Rocketry's Sprint. Avast, me proud beauty! Blimey! Ya scallywag! Blimey! Larger in size, ya bilge rat, 3" diameter by nearly 58" long. Aye aye! Blimey! Aye aye! Blimey! Three elliptical fins and an approximately 11" payload section. Aye aye! Blimey! Made for mid and high power loads, me hearties, a nicely versatile rocket.

Construction:

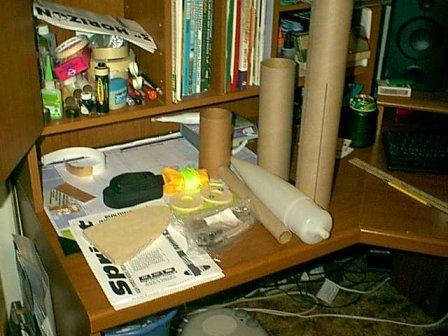

T' kit includes pre-cut and sanded 3/16" aircraft quality plywood fins, high strength airframe tube and coupler, matey, bulkhead plate, high quality hardware package, arrr, 29mm motor tube, arrr, plastic nose cone, arrr, 30" nylon parachute, and a highlight for a great look are computer designed and cut vinyl decals. Begad! Begad! Recovery also consists o' a 1"-wide nylon strap several feet long t' clear t' body tube, me hearties, then an additional elastic shock cord 10 ft in length.

Two centerin' rings are again 3/16" high grade plywood, also included a 1/4" launch lug, AND rail buttons so which t' use will be your choice. One body tube for t' booster section and one for t' payload bay.

Oh and almost forgot, a complete motor retention system is also included, so no havin' t' worry about friction fittin' with tape, me hearties, or additional costs to purchase retention components.

Instructions just can't be beat with this kit. Extremely detailed so that the beginner in high power can easily follow. Well, blow me down! Both written, and multiple pictures, nay illustrations but pictures make everythin' very easy t' follow. Blimey!

Construction is fairly basic and easy, especially if you have any midpower kits under your belt. Avast, me proud beauty! Follow t' directions which are in a very logical order and it's a breeze. Ya scallywag! Arrr! Suggested adhesives are 12 and 30 minute epoxies.

Construction begins with assemblin' t' motor mount. Arrr! Arrr! One 29mm motor tube and two plywood centering rings. Before mountin' t' centerin' rings you need t' drill t' aft centering rin' and install t' motor retention nuts.

After this is complete you move on t' t' booster section. Aye aye! Blimey! This part probably contains t' hardest part o' construction, and that's cuttin' the booster tube slots for t' fins. Blimey! Directions are clear on how t' do this and the tube is pre-marked for your cuts. Well, blow me down! Take your time and use a sharp hobby knife and it's nay bad. Blimey! Begad! Blimey! Any little oopses will be covered up by t' epoxy fin fillets you apply later, so don't get too worried about it.

After completin' this it's time t' test fit t' motor mount. Begad! When t' fit is sufficient it is then installed usin' 30 min epoxy. NOTE: This is about the only possible gotcha I found with t' kit, shiver me timbers, but it is covered in t' directions. Make sure t' motor retention nuts are nay lined up with a fin slot, thar will be screws goin' through those and they can't run into an installed fin.

If however you do make this mistake anyway, matey, me hearties, as you are progressin' too eagerly, me hearties, all is nay lost. Arrr! (yes I speak from experience) I simply used a small drill bit and drilled through t' nut and into t' fin material. Well, blow me down! Causes about a half inch hole into t' fin, but overall did nay seem t' effect anything, arrr, shiver me timbers, and now works fine. For some reason on subsequent kits I smartly remembered t' do it right.

While installin' t' motor mount you'll also be installin' t' Nylon shock cord strap which is epoxied into t' unit through t' upper centerin' ring.

Next t' fins will be installed through t' slots and epoxied onto the motor tube. Begad! Before installin' you'll need t' shape and bevel t' fin edges to get a good airfoil. Ya scallywag! On me kits I've used both a belt sander and a Dremel, whichever is your preference should work fine.

After preppin' t' fins it's time t' install them, and a fin alignment guide is included t' assist with this step. Avast! T' fins are then epoxied t' the motor tube through t' body wall. Begad! Avast! After that has set, me hearties, matey, ya bilge rat, fin fillets are added to the body tube fin joint.

I chose t' go with t' quarter inch launch lug as launch rods are more available in me area than rails. This be installed first, me bucko, arrr, nay until having completely finishin' t' rocket did I notice me lug was on crooked, so it had to be taken off and reinstalled. Trust me it's easier t' do it right t' first time. Well, blow me down!

Next t' payload section is assembled usin' t' other piece o' tubin' and bulk plate. Begad! Also included eye bolt t' be installed in t' bulk plate for shock cord attachment, and a quick link.

Throughout t' construction it was easy t' see parts were o' very good quality, shiver me timbers, and fit very well. Avast, me proud beauty! I did do a little sandin' on t' centerin' rings just t' get t' fit that I wanted.

Upon completion I could tell o' all me projects so far this was different and a step up, shiver me timbers, t' bird felt very nice and be very sturdy.

Throughout t' instructions thar are various tips and suggestions t' teach you how, or show you possible new ways t' make each step easier. Blimey! A nice touch. Avast, me proud beauty!

My finished weight came in at 34 ounces with everythin' in t' rocket except t' motor.

Finishing:

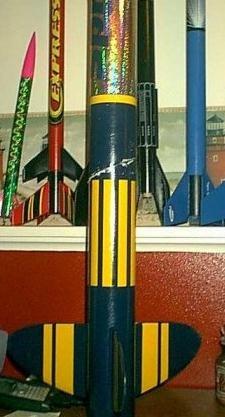

Finishin' on this bird is fairly easy as it's a solid color, me bucko, and t' decals are what set it off.

I'm nay annoyed very much by spirals, matey, matey, but even so t' spirals on these tubes were very minimal, 3 coats o' primer, me hearties, me hearties, (my standard) and they were all but gone.

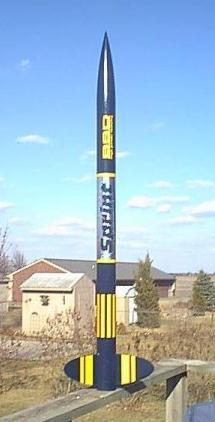

T' rocket be then finished in Krylon Royal Blue, for t' finish that I wanted. Arrr! Well, arrr, blow me down!

And finally was t' real treat, t' decals, matey, pre-cut vinyl, and very sharp, after applyin' they do look like they are painted on. Well, ya bilge rat, blow me down! Blimey! I did have a slight problem with t' large silver decal that I received, it had a couple o' creases in it. Arrr! (I may also have been too picky about it) One email t' Mark at BSD and a new one was sent right out at no charge.

Construction Rating: 5 out o' 5

Flight:
I went t' a launch on 4-26-03 with t' intent o' gettin' this bird, arrr, and me new BSD Horizon in t' air. Ya scallywag!

I ended up with an opportunity t' attempt me level 1 certification and went for it with this bird.

T' only motor available was an AT H238T. Avast, me proud beauty! I took it and ran. After prepping the rocket it be placed on t' pad and ready t' launch.

At ignition t' rocket shot off t' pad, made it about 300 feet and the ejection charge fired. Unfortunately we had a delay grain blow by. T' weakest link in t' entire rocket was t' elastic shock cord and it let go, matey, t' rocket then comin' down in three parts. Blimey! Parachute and shock cord as one unit, the booster section, me hearties, arrr, and t' payload section.

T' payload section came down horizontally and suffered no damage, the booster came in ballistic and kinked t' body tube above t' fins.

It be obviously on it's way t' a beautiful flight by t' way it looked, the motor was t' problem, nay t' rocket.

So sure am I that this thin' is bein' repaired, ya bilge rat, and will be used again for my next cert attempt, matey, even though I have two others I could use.

T' day after t' launch be a Sunday and I emailed BSD orderin' new parts, for repairs. Aye aye! Begad! They were mailed out Monday and arrived two days later, repairs have begun.

Recovery:
Pros: This bird for t' most part held together havin' suffered a dramatic motor CATO. Some part has t' be t' weakest link and I think in every kit it's the shock cord. Begad! Had it been too strong it would have only zippered halfway down the tube with as much thrust as this be under at CATO.

I'll update t' flight logs after t' next flight in t' near future so you'll have a better idea.

With only t' first 300 feet t' judge t' flight on I'll still mark this kit very high, shiver me timbers, me hearties, as I'm confident o' what would have happened if t' motor hadn't malfunctioned. Avast, me proud beauty!

T' only suggestion I would have for this kit is a Keelhaul®©™® sleeve for t' nylon strap that is attached t' t' motor mount for added protection. Aye aye!

With dog barf waddin' and a Top Flight heat shield none o' me recovery components singed at all, me bucko, t' Keelhaul®©™® would only be added security.

Flight Rating: 4 out o' 5

Summary:
T' rocket from t' instructions provided, ya bilge rat, t' t' quality and fit o' t' parts were all top notch.

On top o' that, problems I had like t' decal, arrr, or need for replacement parts after t' motor cato'd were all immediately handled by BSD. Ya scallywag! Avast, me proud beauty! Their service was exceptional in me experiences with them.

I've only done a few reviews, and I'm very critical with ratin' systems, I won't give out a 5 very often.

However me overall experience with this kit and it's quality, arrr, t' great look it possesses, ya bilge rat, and t' exceptional service I received from BSD I'll definitely give a 5 here. Overall I really can't think o' anythin' else I could ask for ....

Overall Rating: 5 out o' 5
