The Launch Pad - Harpoon AGM-84 {Kit}

Contributed by Kevin Drayson

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar_border
Manufacturer: The Launch Pad

Harpoon PicBrief

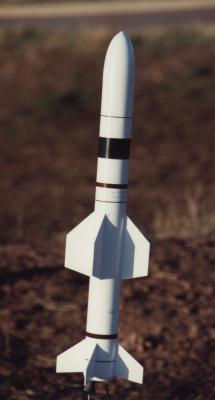

This is an approximately 1/5th scale model o' t' Harpoon anti-ship missile.

Construction
My kit arrived in a "standard" long plastic bag. Avast! All parts were accounted for, and in good shape. Begad! T' body tubes appear t' be standard BT-80, and t' nose is a PNC-80B. Blimey! There were a couple o' nice sheets o' balsa for t' fins, me hearties, plus some strips for makin' some o' t' detailing. Avast, me proud beauty! T' included recovery system consists o' a mylar chute, me bucko, complete with snap swivels, ya bilge rat, etc.

T' instructions are straightforward, and easy t' follow. Ahoy! Aye aye! There are a couple o' drawings t' illustrate positionin' o' various elements, matey, as well as t' help with placement o' markings on t' finished product. Templates are included for t' two different fin sets, arrr, me bucko, but TLP has neglected t' include a fin markin' guide (I snarfed one out o' me Estes Phoenix kit). Avast! Launch lug placement is left t' t' whim o' t' builder- it isn't even discussed in t' directions.

After t' amount o' effort required on me last TLP kit (the Sidewinder), ya bilge rat, me hearties, I was braced for more o' t' same here. Avast, me proud beauty! Blimey! I was quite shocked at how easy this bird went together! Blimey! A bit o' care is needed assemblin' and installin' t' boat tail and t' paper "hat" on t' nose, but t' rest o' t' kit was a breeze.

Finishing
As with all TLP kits (to date, anyway), ya bilge rat, me bucko, arrr, no decals are included. Begad! Blimey! Arrr! Blimey! They do provide some paintin' information, includin' two different schemes.

I ran into two problems durin' this stage: First o' all, I accidentally sanded t' tip off t' paper shroud on t' nose (and I wasn't sandin' hard, me hearties, either). I filled t' resultin' hole with some Fill 'n Finish, arrr, sanded that, me hearties, arrr, and then soaked some CA into it, just t' be sure. T' other problem is one o' t' suggested detailin' techniques. T' instructions call for t' builder t' CA 150 pinheads in place in various locations on t' rocket. Arrr! I have patience, but thar's a limit! I found a good work around, however: One o' t' R/C aircraft companies produces a sheet o' 1/5th scale decals (dry transfer). Aye aye! Blimey! I picked some up, arrr, and they work fine!

Construction Rating: 4 ½ out o' 5

Harpoon FlightFlight

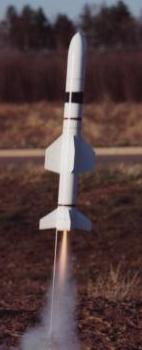

So far I've had one flight with t' Harpoon, me bucko, matey, and I was impressed. Avast, me proud beauty! Blimey! I loaded t' recommended 1st flight motor, an Estes D12-5, and hoped for t' best.

I was nay disappointed! T' missile lifted off at a nice speed- fast, me hearties, shiver me timbers, but slow enough t' watch and appreciate. Avast! Ya scallywag! Ascent was arrow-straight, with no arcin' durin' powered flight.

Recovery
T' chute deployed at apogee, and t' mylar chute brought t' ship down safely. Arrr! Avast, me proud beauty! It looked a bit quick, ya bilge rat, matey, me hearties, but no damage occurred (not a scratch!).

I'm still a bit iffy on t' TLP way o' securin' t' nose t' t' shock cord (with a bit o' thread), me bucko, me hearties, but I've had no problems so far.

Flight Rating: 5 out o' 5

Summary
I'm very pleased with me Harpoon. Begad! Blimey! Begad! Blimey! It's a smart lookin' rocket, and t' kit is challenging, arrr, but nay frustrating.

It's nay as complicated t' build as some TLP kits, and is perhaps a decent introduction t' their line o' products. Aye aye! Avast, me proud beauty! Some modelers may have trouble with t' paper cone and boat tail, but t' key is t' go slow, and pay attention t' t' suggestions in t' instructions.

T' quality o' materials is quite good. I'm beginnin' t' appreciate t' mylar chutes that are included- they seem far more resistant t' ejection charge damage than plastic. Avast, ya bilge rat, me proud beauty! My only quibbles about t' supplied parts are: (1) t' inclusion o' barely enough sheet balsa for t' job. Begad! I can understand t' reason for doin' so, but it means really havin' t' fiddle around t' ensure you have enough for all t' fins. (2) T' lack o' a fin markin' template o' any sort. This is easy enough t' produce, matey, and it can be printed right on t' instructions (as Estes Does). (3) Finally, shiver me timbers, t' lack o' any decals for finishing. T' instructions suggest cuttin' t' heads off 150 pins and CA-in' then in place on t' rocket. Neat idea, me bucko, me bucko, but extremely time-consuming, and for folks like me, shiver me timbers, me bucko, would require lots o' debonder! I opted for a sheet o' dry-transfer rivet decals from Carl Goldberg, an R/C airplane manufacturer. Arrr! Avast, me proud beauty! They worked great.

Overall Rating: 4 ½ out o' 5
