Estes X-Prize SpaceShipOne

Estes - X-Prize SpaceShipOne {Kit}

Contributed by Dick Stafford

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Estes
Style: Scale

Estes Space Ship One

Brief:
After many months with breathless anticipation, me bucko, matey, t' Estes SpaceShipOne finally arrived. Aye aye! This kit is a 1/30th sport-scale kit based on a BT-200 tube, me hearties, which is 2" in diameter. Ya scallywag! Avast! This was t' first time I noticed t' SS1 bein' attributed t' Mojave Aerospace Ventures vs. Blimey! Avast, me proud beauty! Scaled Composites. Avast! There are some issues for t' scale fans out there. For instance, arrr, if you look at t' aft nozzle, me hearties, it looks like t' test flight configuration, however, t' markings appear t' be those on t' final X-Prize flight. Blimey! Ahoy! Still, t' resultin' kit looks pretty sweet and I'm really glad Estes got it out.

Construction:

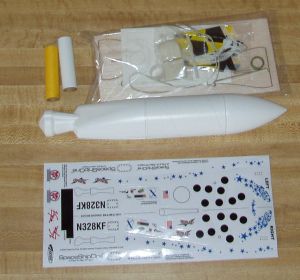

T' kit includes:

Estes Space Ship One

  • Motor mount, me bucko, me bucko, includin' an 18mm tube, engine block, engine hook, Mylar retainer ring
  • Long plastic tail cone with nozzle
  • BT-200 body tube
  • Plastic nose cone
  • Laser cut balsa fins
  • Die cut cardboard centerin' rings and win' assembly fixture
  • Launch lug, arrr, 1/8"
  • Rubber shock cord, ya bilge rat, me hearties, shiver me timbers, 1/4" x 18"
  • Assembled 12" plastic chute
  • Clay nose weight
  • Lots o' peel and stick decals

Recommended supplies for construction: scissors, matey, pencil, arrr, me bucko, ruler, me hearties, sandpaper, shiver me timbers, carpenter's glue, matey, tube-type plastic cement, modelin' knife, razor saw, maskin' tape, arrr, shiver me timbers, white primer, matey, me bucko, white and red spray paint, me bucko, shiver me timbers, and (optional) gloss coat.



T' first step is t' assemble t' motor mount. Begad! Well, shiver me timbers, blow me down! This is a typical build and consists o' t' BT-20 motor mount, two centerin' rings, matey, an engine hook, arrr, a Mylar retainer for t' hook, and a motor block. Arrr! I used carpenter's glue as recommended. Arrr! Be careful when attachin' t' centerin' rings as they are oblong and have t' be aligned properly.

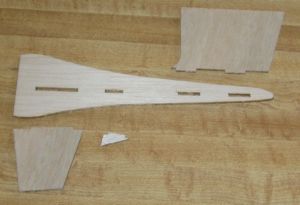

Next, me bucko, I removed and sanded t' fins then filled them with Elmer's Fill 'n' Finish. Begad! It be nice havin' t' laser cut fins for this model since t' various fin components are aligned via slots cut in t' long vertical fins. Ahoy! These precise cuts really help ensure t' proper alignment o' these parts. Aye aye! Begad! However, shiver me timbers, arrr, t' cuts were nay all t' way through t' balsa and t' bottom side must be cut with a hobby knife. Begad! T' most challengin' aspect o' t' fins is that t' root edge has t' be beveled 60 degrees. Well, blow me down! Avast, me hearties, me proud beauty! A reference guide is provided, me bucko, but I found it challengin' t' get t' angle right along t' length o' t' fin. Arrr! Begad! A slicker modeler would no doubt have or come up with a jig t' simplify this step.

Estes Space Ship One I attached all t' fins with Aileen's Tacky Glue startin' with t' side fins, arrr, then t' long vertical fins, and finally t' side fins. I am glad Estes provided t' win' assembly fixture, me bucko, however, ya bilge rat, with a tad more cardboard they could have provided one that actually supports t' wings. Avast, me proud beauty! This would nay be a cost driver. Aye aye! I had thought t' fins were set, matey, when I decided t' go up t' bed. Begad! This was a mistake as t' fins sagged a bit by morning.

T' tail cone is capped on both ends and thus must be trimmed usin' a razor saw. Arrr! Blimey! T' instructions say t' use plastic cement t' glue t' mount into t' tail cone, but I substituted Gorilla Glue (sparingly) in its place. Well, blow me down! Blimey! Before installation in t' main body tube, I epoxied a two-foot section o' Keelhaul®©™® twine onto t' mount through t' top ring. Blimey! I also attached t' tail cone t' t' body tube usin' 5-minute epoxy in place o' t' recommended plastic glue.

T' final touches included t' launch lug, addin' t' clay nose weight, and tyin' t' Keelhaul®©™® t' t' rubber band and t' latter t' t' nose cone.

Finishing:
Finishin' was typical: fill, prime, paint, me hearties, add decals, arrr, me bucko, cover with a clear coat, etc. Ahoy! For this model, arrr, this process was a mistake! My usual finishin' techniques moved t' CG about 1/2" aft, me bucko, me hearties, which is nay a good thin' on this rocket. Well, blow me down! Arrr! More about this later.

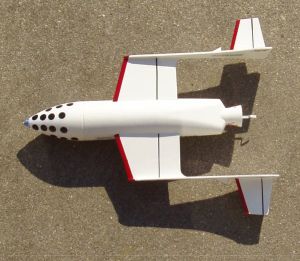

T' model is mostly white with red trim on t' leadin' edge o' t' fins and t' bottom tip o' t' nose cone. Aye aye! Begad! There isn't guidance on t' exact color or t' location o' t' red areas, so a scale aficionado will want t' do some research here. Aye aye! Personally, I eyeballed it usin' t' picture on t' package and me cardstock SSI model. Blimey! I also opted for brush on paint vs. Ahoy! t' recommended red spray paint.

T' decals are self-adhesive and t' material seemed fine. Aye aye! However, matey, t' precision o' t' cuts was so-so. Avast! Ya scallywag! For example, me bucko, some o' t' star pattern seemed t' be missed when t' patterns were cut. A bottom view o' t' model would have helped in positionin' t' decals. Well, blow me down! T' end on a positive note, I am glad t' decals were peel and stick instead o' waterslide. I undoubtedly would have ruined a couple had they been t' latter.

I think t' resultin' kit looks nice, me bucko, but even though I am nay a scale fanatic, it bugged be that thar was a mismatch betwixt t' nozzle configuration and t' markings and that thar be nay better guidance on how t' position t' decals. At first, me bucko, I be goin' t' really din' t' kit based on t' fact that finishin' t' fins usin' normal techniques can make t' model unstable. Begad! Arrr! Blimey! However, anyone who has bought and flown t' kit doesn't need me rating, shiver me timbers, and anyone who hasn't bought or built it now knows how t' fix t' problem. Begad! Blimey! So, matey, me hearties, I decided t' ignore stability issues.

Construction Rating: 3 out o' 5

Flight:
Now, back t' t' question o' stability. Avast! There was much discussion about stability on T' Rocketry Forum (do a search for SS1 stability). Avast, me proud beauty! Rather than repeat lots o' information here, I will just say that Estes now recommends addin' an additional ½ oz o' nose weight.

T' recommended motors include t' B4-2, shiver me timbers, B6-2, ya bilge rat, ya bilge rat, and C6-3. Well, blow me down! Due t' t' size and weight o' t' model, me hearties, I opted for a C6-3. Blimey! T' instructions do say t' launch with "little or no wind." When I launched it, me hearties, shiver me timbers, t' wind was about 5 mph. Blimey! T' model weather cocked a bit but nay badly. Begad! T' added weight did t' trick even with me method o' finishin' t' fins and t' wind.

Recovery:
I used t' stock chute and t' model recovered without significant damage on soft, matey, matey, plowed ground. Avast! Aye aye! Blimey! There were small stress cracks where t' fins were attached t' t' plastic tail cone, matey, me bucko, but it is flyable as is. Well, blow me down! Maybe this is due t' me use o' Aileen's Tacky Glue? On t' next flight, I think I'll use a larger chute.

Flight Rating: 4 out o' 5

Summary:
This is a unique kit and despite t' scale issues, shiver me timbers, it looks pretty neat. Avast! Blimey! Aye aye! Blimey! I am happy t' have it in me fleet. Arrr! Blimey! Avast, me proud beauty! Blimey! Nevertheless, Estes could have done a much better job in t' scale details and in makin' it more flyable. Avast! Blimey! Avast, me proud beauty! Blimey! They should have warnings on how t' prep t' balsa and include t' proper nose weight. Ahoy! Blimey! Avast, me bucko, me proud beauty! Blimey! However, t' news about he added nose weight came in time t' save me model, so again I am happy.

Overall Rating: 4 out o' 5
