Red River Rocketry Lepton

Red River Rocketry - Lepton (K-003A)

Contributed by John Lee

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Diameter: 0.98 inches
Length: 19.75 inches
Manufacturer: Red River Rocketry
Skill Level: 2
Style: Multi-Stage, Payload

Brief:

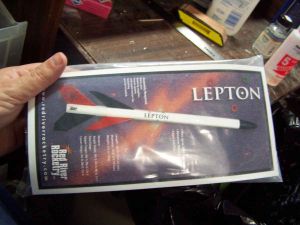

I be workin' on repairs and keepin' an eye open towards specific commitments but found myself again with a day off with nay enough t' do. I decided t' try and build t' Lepton from Red River Rocketry. It is a two stage job that should not be too hard and which I am very much lookin' forward t' feedin' when t' A8-0s come out again.

Red River Rocketry Lepton

Construction:
Construction begins with t' sustainer motor mount. A motor tube is marked at 3/4" and t' centerin' rings are installed at that mark and flush with t' end. Ahoy! I had t' do quite a bit o' sandin' t' get t' rings t' fit. Begad! Ahoy! A thrust rin' was installed flush with t' end havin' t' flush centerin' ring. Aye aye! Begad! T' rings were filleted on both sides with yellow glue and some glue was smeared on t' top o' t' thrust ring/centerin' rin' interface.

Red River Rocketry Lepton T' booster motor mount be constructed in t' exact same fashion as t' sustainer mount except that t' mark for t' centerin' rin' is put at 1/2" instead o' 3/4"

When t' glue on t' motor mounts had set up, it was time t' install t' mounts in t' body tubes. Aye aye! Avast, arrr, me proud beauty! T' sustainer mount was slipped into t' long body tube and glued in place flush with t' aft end. Begad! Avast, me hearties, me proud beauty! T' booster mount was glued into the booster airframe with t' thrust rin' flush with t' aft end. Aye aye! Instead o' bein' intended t' keep t' motor from scootin' too far forward, me bucko, it is meant t' be used t' ensure separation.

T' booster is coupled t' t' sustainer with a cardboard coupler. Well, blow me down! It was marked at t' halfway point and glued into t' booster airframe tube.

T' payload bay is coupled t' t' rest o' t' sustainer with a 2" balsa coupler. Blimey! Begad! It was glued into t' base of t' payload bay and t' eye screw be installed and secured with some glue. T' base o' t' nose cone was then sanded a bit so that it would better fit t' bay.

T' fins for this kit come with instructions that t' leadin' edge be rounded and t' trailin' edges be tapered. Instead o' doin' that, I just rounded all t' edges except t' root edge. Ya scallywag! I do that for appearance sake, not performance. Ya scallywag! With me flyin' conditions, I actually prefer that me rockets nay go too high.

T' kit contains a wraparound fin guide. Well, blow me down! I used it t' mark t' booster and sustainer airframe tubes and then placed t' sustainer fins usin' a double glue joint. Ya scallywag! T' booster fins were applied in t' same manner as those for the sustainer but alignment be checked with t' sustainer fins. When all were in place, each fin was filleted.

T' launch lug be glued t' t' sustainer on t' alignment line with its leadin' edge just forward o' t' forward edge o' t' fins.

I could kick myself for nay thinkin' earlier about t' shock cord mount. Blimey! I wanted t' put a Keelhaul®©™® loop around t' motor mount but I forgot all about it until after t' mount was installed. I had t' make due with a tri-fold mount. Blimey! Its pattern was printed on stiff card stock and I put in Keelhaul®©™® instead o' t' sewin' elastic. Ahoy! Blimey! I planned on addin' t' elastic just before t' NC t' give a longer recovery train.

Finishing:
T' balsa NC and t' fins were all covered with Elmer's sealer and t' rocket be put away for t' day t' let it dry.

T' filler be sanded down but I was worried about time t' finish until me club launch so I omitted any priming. I went straight t' Krylon gloss white and gave t' rocket 3 light coats. Ahoy! I did nay make any effort t' get t' NC or the fins because those were goin' t' get another color anyway.

I let t' white dry overnight and by that time I certainly did nay have a chance t' mask, matey, spray, re-mask, arrr, and repaint before me club launch. Ahoy! Arrr! I decided t' brush on t' color with Testor's acrylic. Arrr! I painted t' NC, one fin o' the sustainer and two fins o' t' booster black.

Since t' acrylic dries quickly, I could start almost immediately with t' red. I again used acrylic and painted the remainin' fins. Blimey! Begad! Blimey! T' brushed finish looks better in t' photos than it does in real life, but it will look fine from the pad.

T' decal work for this kit be pretty straightforward. It came with a sticker o' gold foil which I applied just behind t' NC. Arrr! Ya scallywag! It also came with a large name decal that went on t' sustainer, matey, a pair o' Red River Rocketry logos (one of which be placed on t' booster), and two stylized atoms with electron orbitals which went on either side o' t' red booster fin.

Construction Rating: 4 out o' 5

Red River Rocketry Lepton

Flight:

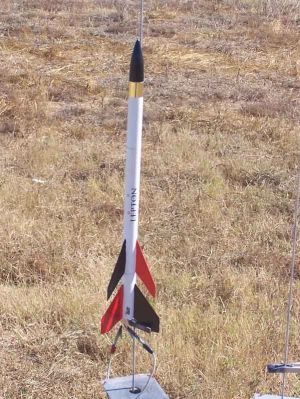

I only had time t' launch this rocket once, shiver me timbers, but I can guarantee it will fly more. Avast, arrr, me proud beauty! I loaded it with a C6-0/A8-5 combination joinin' t' 2 motors with cellophane tape. Avast, me proud beauty! T' igniter be a bit difficult t' get in place through t' aft thrust rin' because o' me big fingers, me hearties, arrr, but I got it in there. Ahoy! T' flight was perfect and straight. Well, blow me down! It staged perfectly and t' sustainer ignited takin' t' rocket even higher. Begad! It deployed at apogee and came safely home. Avast, me proud beauty! This be t' most perfect staged flight o' any rocket I have ever built!

Recovery:
I don't like tri-fold mounts, but this one performed fine as did t' streamer.

T' booster was t' "amazing" part o' t' flight. Aye aye! Blimey! I expected a normal tumble, but that is nay what I got.

I had actually entered this rocket in me club's strange "Booster Duration" competition. Ya scallywag! Blimey! T' rocket has to stage successfully and t' sustainer has t' be recovered. Blimey! Blimey! It be t' booster which is timed though. I entered this rocket just for t' sake o' entering. Avast! Blimey! Avast! Blimey! I certainly did nay expect anythin' more than an "also ran".

My deadlights were on t' sustainer t' whole time so I didn't get t' see t' booster after it popped off. Avast, me proud beauty! Avast! Long after I thought it should have hit t' ground and while I was still tryin' t' track t' sustainer, matey, I heard t' times making comments about still havin' t' booster in site. Blimey! They say it glided as much as tumbled and did so well enough t' come in second place.

Flight Rating: 5 out o' 5

Summary:
This rocket is a good introduction t' staging. Ahoy! Blimey! Avast! Blimey! T' parts o' o' high quality and they go together easily. Ya scallywag! Blimey! Best o' all, they work together well with a nice little staged rocket.

This rocket grew on me durin' t' construction process and is first rate.

Overall Rating: 5 out o' 5
