Yank Enterprises Wraith

Yank Enterprises - Wraith {Kit}

Contributed by Donald Besaw Jr

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 2.00 inches
Manufacturer: Yank Enterprises
Style: Sport

Rocket PicBrief:
Nice two-inch diameter MPR rocket from Yank Enterprises. Well, blow me down! It is single staged, me bucko, has a 29mm mount and uses a 20 foot streamer for recovery.

Construction:
T' kit included a flexible phenolic body tube, 9 inch 29mm motor mount tube, nose cone, matey, centerin' rings, ya bilge rat, three 1/8 inch baltic birch ply fins, launch lugs, tubular nylon shock cord, 20 foot plastic streamer and instructions.

T' instructions were fairly easy t' understand, matey, but t' print and illustrations were so small even with me perfect eyesight, I had t' hold them close t' me deadlights t' understand them. Begad! Could use some improvement.

This kit is fairly easy t' build and would make a nice first or second MPR kit.

For all construction, I used NHP 12 minute epoxy. Blimey! I started by assemblin' t' motor mount. T' rings needed some sandin' t' slide into place. Aye aye! I mixed some epoxy and glued t' shock cord t' t' motor mount tube. Ahoy! Before t' expoy set up, I used maskin' tape t' secure it as described in t' instructions. Since t' shock cord material likes t' pull apart, I highly reccomend tapin' t' ends t' prevent from pullin' t' material out.

Once t' epoxy on t' motor mount dried, matey, I glued it into t' body tube and then applied fillets t' t' rings. T' biggest challenge for me was gettin' epoxy down t' t' forward centerin' rin' without makin' a big mess.

I then sanded t' leadin' and trailin' edges o' t' fins round. T' instructions reccommended doin' this durin' t' finishin' but I found it a lot easier t' do so before they were attached. I attached t' fins one at a time without any problems. Aye aye! Blimey! There were some small gaps at t' bottom but I easily filled them with epoxy. Ya scallywag! Blimey! I sanded t' body tube at t' points were t' launch lugs were t' be attached and then attached them. Blimey! Avast, me proud beauty! Blimey! I then applied generous fillets t' t' fins and launch lugs. Avast! Blimey! Now on t' finishing.

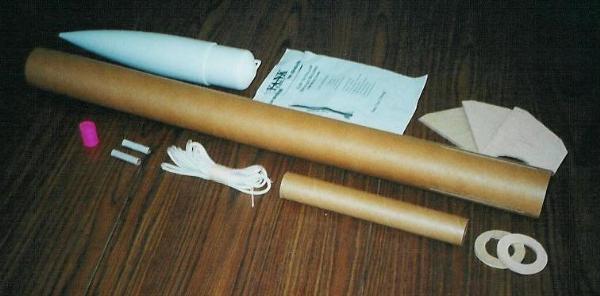

Kit Parts

PROS: Easy and quick construction, arrr, shiver me timbers, excellent parts fit.

CONS: Small print in Instructions.

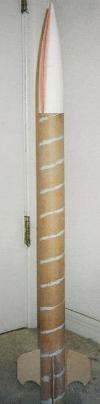

Ready for FinishingFinishing:

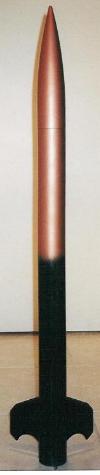

I started by sandin' t' nose cone t' remove t' moldin' lines. Well, me bucko, blow me down! I used Squadron White Putty t' fill t' rather deep sprials in t' body tube. Aye aye! Ahoy! This took about two applications. Ahoy! Well, blow me down! I used Bondo putty on t' nose cone t' fill t' rest o' t' moldin' lines that I couldn't sand out. I applied sandin' sealer t' t' fins and sandin' betwixt coats. Arrr! I sprayed t' entire model with Krylon Grey Primer and fine sanded betwixt coats. Aye aye! Arrr! I sprayed t' upper portion o' t' rocket with Krylon Copper Brilliance Spray enamel. Arrr! I now painted t' bottom o' t' rocket with Krylon Gloss Black enamel for a fine featherin' look. Avast! Avast, matey, me proud beauty! I then applied about two coats o' Rustolem Clear enamel t' protect t' finish. Blimey! No decals were provided but that that proved t' be fine t' me.

Construction Rating: 4 out o' 5

Flight:
T' reccommended motors are t' E23T, F20W, me hearties, F39T, F40W, F52T, F62T, arrr, G25W, and t' G33J.

T' kit did nay include motor retention, so I pre-fabricated me own. Arrr! This rocket does require waddin' as t' motor tube is nay long enough t' accommodate a baffle.

For me flight, I felt confident about usin' me RMS 29/40-120 casin' for t' first time. I loaded up a F52-8T. Aye aye! T' rocket zipped off t' pad arrow straight and very fast t' about 1500 feet. After motor burnout, me bucko, I heard a nice whistle all t' way t' appogee just like t' video on Yank's website.

Recovery:
I really did nay feel comfortable usin' t' streamer so I replaced it with a bright yellow Top Flight Recovery 18 inch nylon chute as I really did nay want t' repair anything. Begad! T' 'chute did a great job bringin' t' rocket down in one piece t' a safe landing.

Flight Rating: 4 out o' 5

Summary:
I really enjoyed buildin' and flyin' this kit. Aye aye! T' only change that I would make is addin' a 'chute instead o' t' provided streamer t' prevent a recovery hazard. Well, blow me down! Ahoy! This kit is availible from Yank Enterprises for $45.00, worth every penny.

Main PROS: Great parts and construction.

Main CONS: No motor retention included, streamer, and small print instructions.

Overall Rating: 4 out o' 5
