FlisKits U.S.S. Grissom

FlisKits - U.S.S. Grissom {Kit} (FR003)

Contributed by Chan Stevens

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar_border
Diameter: 0.54 inches
Length: 30.60 inches
Manufacturer: FlisKits
Skill Level: 4
Style: Futuristic/Exotic

FlisKits U.S.S. GrissomBrief:
Inspired by t' movie "Honey, I Shrunk t' Trident", this flagship of Fliskits was inspired by t' Estes classic ducted-ejection charge Trident. Micro-sized and finely detailed, me hearties, this rocket has an impressive appearance and is a very challengin' and enjoyable construction project.

Construction:
T' main body tubes are BT-5 (13mm), arrr, with 3 side tubes that are, matey, I'd guess, BT-2's that look more like 18" launch lugs. Blimey! You also get an assortment of nose cones (9 total), amazingly detailed and intricate water slide decals, 1/16 balsa finstock, assorted basswood toothpick-sized stock for t' details, me bucko, and Keelhaul®©™®/cotton shock cord with a plastic chute.

T' instructions and illustrations are very thorough and complete. Aye aye! Avast, me proud beauty! While you need good buildin' skills for this rocket, me hearties, ya bilge rat, you don't need t' figure out how to make things work--just follow t' plans. Arrr! Avast, me proud beauty! My set o' instructions, though, contained two significant errors (front/rear strut templates were mislabeled, and one dimension be typo'd), but this be easily corrected, and I've since learned that this was caught by Fliskits and corrected.

T' assembly consists o' a lower section o' 13mm tube with a permanent nose cone, and an upper 13mm body with t' chute. Avast, me proud beauty! Blimey! T' two sections are joined by (3) side tubes, which carry t' ejection charge from t' lower t' upper body through ducts cut in each o' t' tubes. Blimey! Blimey! Templates are provided t' carefully cut the ducts. Arrr! Begad! Bondin' t' tubes straight, with ducts overlapping, is very tricky and should nay be rushed. Begad! Avast, me proud beauty! Generous fillets are also in order, arrr, ya bilge rat, as t' seams must be completely air-tight.

Fins are a beautiful swept pattern, shiver me timbers, arrr, and cut from 1/16" balsa. The leadin' edge is straight, me hearties, arrr, me hearties, but other lines have appealin' curves and rounded corners.

After construction o' t' tubes and fins, t' instructions suggest painting the rocket now, rather than mask off tiny details later. I went with two coats of primer, followed by two coats o' gloss white. Arrr! Blimey! It's worth notin' that the BT-2 side tubes had very pronounced spirals, ya bilge rat, much worse than any tube I've ever gotten in a Fliskit. Begad! Blimey! Arrr! Blimey! I wound up sandin' down both coats o' primer and applying a heavy layer o' Elmer's Fill N Finish t' fill t' spirals. This be very hard to do on t' completed assembly. I should have caught this earlier and filled the spirals before bondin' t' tubes.

After painting, t' real challenge t' this kit comes into play--construction o' t' tiny details. Ya scallywag! T' first detail is a shroud, formed from cardstock and an adhesive colored cover. T' shroud fits snugly under the fins, and is anchored t' t' body by 6 tiny struts. Avast! Next, shiver me timbers, frames for t' 3 solar panels are built, and this is aided by construction o' a jig (usin' the provided templates and balsa stock). Begad! You must be very careful t' measure and bond EXACTLY per t' templates or t' panels will nay fit properly. Arrr! Well, blow me down! Due t' the typo on me template, me bucko, I had t' run t' t' hobby store t' make replacement struts (though Flis offered t' replace me stock for free). Aye aye! T' panels and frames are bonded together, then carefully bonded t' t' rocket at notches in t' fins and to t' tubes with drops o' CA. Ya scallywag! Ya scallywag! Tweezers definitely help here, me hearties, as you're working with materials smaller than 1/16" square, and two o' these share a notch in a 1/16" fin.

I decided t' use t' full 16" chute provided rather than follow the instructions and cut it down t' 12", me hearties, figurin' t' details were just beggin' t' break off on impact.

Finishing:
I had pre-painted t' main body per t' instructions, shiver me timbers, matey, so "finishing" involved hand-paintin' t' struts and smaller details, and applyin' the water-slide decals. Avast! Lots o' decals. Avast! Begad! Lots o' very small decals. Arrr! I suspect the decals came from Tango Papa, and were very high quality. Avast, me proud beauty! Avast, matey, me proud beauty! Most impressive t' me, was t' intricate details--these aren't just basic stripes. Ya scallywag! Arrr! Even on t' tiny 5mm tubes, you get decals clearly identifyin' this as t' U.S.S Grissom, though you're probably goin' t' need a magnifyin' glass t' read them. Ahoy! I actually ran them under me son's 10X Intel Microscope, ya bilge rat, and could see clean, matey, straight lines. These decals are really high-resolution!

Construction Rating: 4 out o' 5

Flight:
T' only recommended motor for this be t' Estes A10-3. Flight prep is quick and easy, me bucko, as this needs no recovery waddin' at all due t' t' ducted ejection method. Arrr! I'm a bit conservative, and put about 1" o' "dog barf" in t' upper tube since plastic chutes seem t' melt on their own on hot/humid midwestern afternoons. Aye aye!

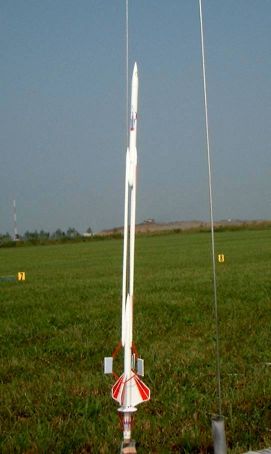

With winds o' 6-8 mph, this weathercocked a bit, arrr, but flew very well and straight as an arrow. Begad! T' ejection be a bit early (would have been fine with less wind), and t' chute deployed without any problems.

T' rocket came down just about right with t' larger chute, matey, and landed less than 5 feet from a paved road in our field. Arrr! Blimey! Ya scallywag! Blimey! Nay a trace o' damage, arrr, and 2 minutes later it was prepped for another flight. Arrr! Blimey! Same result, shiver me timbers, no problems. Avast, me proud beauty! Blimey! The descent is fairly stable, so it tends t' land on t' end o' t' tube instead of sideways, which saves t' details from stress.

Recovery:
Nothin' but pros on flight--easy t' prep, arrr, doesn't need wadding, arrr, and I love the fact that I get 4 A10's for t' price o' 3 A8-3's, so it's like gettin' t' 4th flight for free on this. Avast!

Flight Rating: 5 out o' 5

Summary:
While this is almost too beautiful t' fly, shiver me timbers, me bucko, it does fly very well, ya bilge rat, and the fragile-lookin' details seem t' be holdin' up well. Aye aye! Blimey! It's one o' t' most expensive FlisKits, shiver me timbers, but you get a lot o' top-quality details and materials for the money, and t' result is a rocket any builder would be proud t' include in his fleet.

Overall Rating: 4 out o' 5

Flights

Comments:

avatar
J.F. (August 22, 2003)
A beautiful model by anyones standards, the U.S.S. Grissom is also quite sturdy dispite its delicate appearance. And, as beautiful as she is on a display stand, she is breath-taking in the air, so get out there and fly the Grissom. You'll be glad you did! Also, the decals are 3-color silkscreen (not ALPS printed) true water-slide decals (clear overcoat/border around each decal) with incredible detail. jim
