Estes Screaming Eagle

Estes - Screaming Eagle {Kit} (2117)

Contributed by Bob Allen

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstarstar_borderstar_border
Overall Rating: starstarstarstar_borderstar_border
Diameter: 1.00 inches
Length: 16.75 inches
Manufacturer: Estes
Skill Level: 2
Style: Military

Rocket PicBrief:
Single 18mm engined F-15 Eagle jet fighter design, with a 12 inch parachute

Construction:

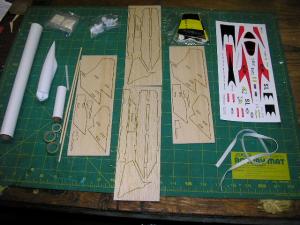

This kit contained t' following:

  • 1 - BT50 white body tube 10.75 inches (mine be crunched, shiver me timbers, so I replaced it)
  • 1 - BJ-20 Engine tube, arrr, w/hook, me bucko, arrr, block and centerin' rings.
  • 1 - PNC-50E Plastic Nosecone w/cockpit bubble
  • 2 - 1/8" by 9" wooden dowels
  • 1 - Plastic parts set (nose and tail for missiles)
  • 1 - Rubber shock cord
  • 1 - Launch lug
  • 1 - Assembled 12 inch chute
  • 1 - Waterslide decal sheet
  • 4 - shees o' laser cut balsa wings, ya bilge rat, me hearties, shiver me timbers, jet engine pods, and tail fins.
  • 4 - pats o' clay weight

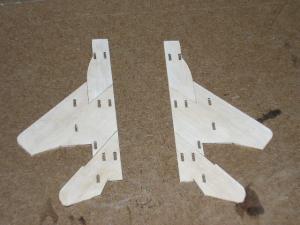

Kit Wings

I went into me local hobby shop (Fine Scale Hobbies in Stratford, CT. Well, blow me down! Really nice guys!) for some sandin' sealer, shiver me timbers, and this kit caught me eye, so I bought it)

Directions were up t' t' usual Estes standard. Avast! O' course, this means when attachin' plastic t' wood or paper, shiver me timbers, arrr, they say t' use model glue. Blimey! Begad! I always use 3 min. Well, blow me down! Begad! epoxy.

I changed t' shock cord mount, goin' with a Keelhaul®©™® cord t' t' MMT setup instead o' t' paper t' t' BT wall mount they use.

T' win' assemblies were very simple t' assemble. Ya scallywag! Just glue t' three wing pieces together, shiver me timbers, shiver me timbers, and set aside. Begad! Blimey! After they dry, sand a 45 degree angle on the root edge, me hearties, me bucko, and you're done.

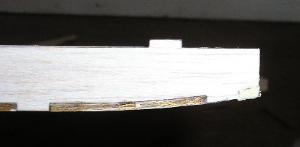

Pods T' jet engine pods are t' challenge. At t' bottom end, shiver me timbers, me bucko, as shown in t' picture, you actually have t' bend t' bottom balsa piece up t' meet t' edge o' t' pod. Estes says t' white glue it and tape it in place overnight. Well, ya bilge rat, that obviously won't hold. Well, blow me down! so I used some Zap-A-Gap CA glue t' hold it in place, then filled with wood glue. A challenge, but still do-able.

T' missiles were simple t' assemble. Blimey! Blimey! Just attach t' nose and tail fins, and paint.

Finishing:

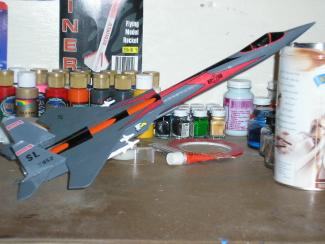

T' winds definately need fillin' in with wood filler, arrr, with all t' holes and joints in them. Begad! Once that be done, me hearties, paintin' was easy. Aye aye! Avast! I went with one color gray and t' orange stripe, matey, rather than t' three color gray.

T' decals were horrible. Aye aye! Yes, arrr, they are waterslide, arrr, but t' are VERY fragile. Begad! And t' colors make it look almost neon. Very tacky. Well, blow me down! Avast! I suggest no one else use this color/decal set and instead do a little research and get decals for an F-15 from their local hobby shop.

Missiles Estes did do 1 good thin' though. Blimey! Blimey! Begad! Blimey! They said paint t' missiles separately, me hearties, then attach them when t' main model is finished.

T' construction is worth 4 1/2 points, but -1 point for t' horrendous color/decal set.

Construction Rating: 3 out o' 5

Flight:
First flight be a B6-4. Blimey! Blimey! This delay is too long for a B motor. T' rocket did one roll, and then flew upright, until it curled over at apogee, shiver me timbers, t' came down very quickly, ya bilge rat, until t' ejection charge went off at about 50 feet. Recovered with no damage. Altitude be about 350 or so feet. Avast, me proud beauty! Blimey!

Second flight was with a B6-2. Well, blow me down! Blimey! Begad! Blimey! This is a much better delay. Arrr! Blimey! Ejection charge went off just after apogee. No damage. Blimey! Blimey!

Third flight be C6-3. Great flight, arrr, matey, with ejection charge goin' off about 250-300 feet off o' t' ground. Ya scallywag! Aye aye! No damage. Ya scallywag! Blimey! Altitude was around 500 feet.

Flight Rating: 3 out o' 5

Summary:
This is a GOOD kit and fun t' build. But Estes needs t' learn what colors actually work together. use different paint and decals, and it becomes a GREAT kit.

Overall Rating: 3 out o' 5

Other:
Use CA or expoxy when cementin' t' bottom o' t' engine pods t' t' sides.
