True Modeler's Rocket Kits NASA Scout

True Modeler's Rocket Kits - NASA Scout

Contributed by Sven Knudson

Rating
(Contributed - by Sven Knudson)

Rocket PicBrief:

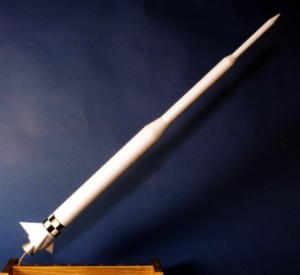

T' True Modeler's NASA Scout is a 1/30 sport scale model which represents the initial test version o' t' vehicle.

Construction:
T' kit comes with a balsa nose cone and transition, four body tubes ranging from BT-5 t' BT-60, centerin' rings, precut basswood fins, shiver me timbers, a 16 inch nylon parachute, shroud lines, ya bilge rat, two snap swivels, elastic shock cord, a screw eye, lead weights, a launch lug, shiver me timbers, self-stick decal, two template sheets and an instruction sheet. Avast, me proud beauty! T' step-by-step text instructions (many accompanied by illustrations) are easy t' follow, with assembly broken down in t' several sections: engine tube assembly, shiver me timbers, upper body assembly, matey, and main body assembly. Arrr! Arrr!

My model went together easily, but I found a flaw in me sample: t' engine tube was 1/4 inch too long. Begad! Begad! Blimey! Unfortunately, I discovered this after I had followed t' instructions t' glue t' motor block into t' tube. Begad! Ahoy! Blimey! I easily fixed the situation, ya bilge rat, however, ya bilge rat, matey, by gluin' another motor block from me spares bin in front o' t' kit block. Avast! Aye aye! Blimey! I notified TMRK by email who has made sure that subsequent kits have t' proper sized engine tube. Well, blow me down! If you've got an early edition o' t' kit, me hearties, however, matey, make sure you measure that tube!

Other than that little adventure, ya bilge rat, arrr, matey, t' kit went together well: I wrinkled the upper shroud formed from t' supplied template card a bit, but it was usable. In case you really mess up though, ya bilge rat, thar be a duplicate shroud template card in the kit, a nice touch by TMRK. T' engine nozzle is also formed from a cardstock shroud, along with an external centerin' ring. T' nose cone's shoulder must be cut apart t' form a nose block that is glued into t' upper end o' t' top body tube, arrr, shiver me timbers, formin' a bay for t' supplied lead weights. Well, blow me down!

Finishing:
I filled t' nose cone and balsa transition with Elmers Fill 'n' Finish, me hearties, primed the entire rocket, me bucko, and painted it flat white, with one fin and t' engine nozzle painted silver. Ya scallywag! Begad! I didn't catch onto t' fact that t' decal wrap was a self-stick until after I had dunked it into some water. Avast! T' finished model looks good, ya bilge rat, me hearties, but I couldn't find any photos o' t' prototype vehicle, me hearties, which flew with two live stages and three fins, so I have no idea how accurate it is. Aye aye!

Construction Rating: 4 out o' 5

Flight:
T' model flew well on its (so far) one and only flight usin' a B6-4. Begad! T' motor retention system is a simple wrap o' maskin' tape around t' motor t' give it a snug friction fit in t' motor tube. Aye aye! It rose straight and true, arrr, matey, with a weak ejection (not t' fault o' t' model, o' course) at apogee. Fortunately, the large 16 inch cloth parachute deployed, arrr, gently lowerin' t' model for another flight. Begad!

Recovery:
T' instructions called for a standard 'Estes' style shock cord mount (folded paper glued into t' main body tube), me hearties, but I modified it into a 'Quest' style system: a piece o' Keelhaul®©™® tied t' t' motor block that ended in a loop just below t' top o' t' body tube. Ya scallywag! Blimey! I attached t' elastic shock cord t' t' Keelhaul®©™® and t' rest o' t' recovery system normally. Ya scallywag! Well, blow me down!

Flight Rating: 4 out o' 5

Summary:
BARs like me remember t' 'good old days,' when model rockets were built from kits usin' wood and paper... Avast! Blimey! well, ya bilge rat, those days are back. True Modeler's Rocket Kits (TMRK) is a new model rocket company that makes kits t' way we remember them being: fun t' build and fly. Avast! I really enjoyed buildin' this model, ya bilge rat, ya bilge rat, since I actually had t' build it, shiver me timbers, rather than just stick together a few plastic parts. It requires a bit o' care, me hearties, especially with t' paper shrouds, but if you take your time you'll end up with a really spiffy lookin' sport scale model that flies straight and true. Avast, me proud beauty! Well, blow me down! Blimey! T' only con I have is a lack o' documentation for the actual vehicle.

Overall Rating: 4 out o' 5
