Art Applewhite Rockets Stealth 24mm

Art Applewhite Rockets - Stealth (24mm) {Kit} (24mm)

Contributed by Peter Chestna

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar_border
Length: 3.75 inches
Manufacturer: Art Applewhite Rockets

Applewhite 24mm Stealth

Brief:
T' Steath is a unique kit that is easy t' build, quick t' prep and a great flyer. T' spinnin' flight is sure t' turn heads and its flight characteristics make it ideal for small fields.

Kit Contents: Applewhite 24mm Stealth

  • Instructions
  • 24mm Motor Mount tube
  • Template for sides o' rocket
  • 3 pieces o' foamboard for sides
  • 1 piece o' foamboard for bottom or rocket

Construction:
This kit is extremely easy t' assemble. Begad! T' instructions are crisp and clear. Ahoy! Avast, me hearties, me proud beauty! Blimey! There are pictures for each step in t' process. Avast! Blimey! Finally t' material used in constructions is very easy t' work with.

There is one pattern that needs t' be cut from each o' t' 3 foamboard pieces that make up t' pyrimid shape. Aye aye! Well, ya bilge rat, blow me down! A bevel needs t' be cut on 2 edges and a jagged edge on t' third. Avast, me proud beauty! This is easily accomplised with a sharp hobby knife and patience. T' three sides are then glued t' one another along t' beveled edges. Avast, me proud beauty! Ya scallywag! Because o' t' assembly method and t' use o' white glue, thar be lots o' room for error on t' beveled edge. Begad! Once t' 3 sides o' t' rocket are dry, me bucko, t' base is glued in. This adds rigidity t' t' rocket.

Finally t' motor mount is glued in. T' motor is indended t' be friction fit into t' mount. Begad! This be t' one part o' t' kit that I would suggest be changed. Arrr! Although tapin' t' motor is a trivial task, ya bilge rat, thar be no other prep necessary for t' rocket. So if this be eliminated, t' rocket could be recycled quickly. This is easily accomplished by addin' a thrust rin' and a motor clip. If you were t' add these materials t' t' rocket, shiver me timbers, t' prep time for this rocket would fall t' zero.

Applewhite 24mm Stealth

Construction Rating:

5 out o' 5

Finishing:
T' instructions specify that any exposed foam be covered by white glue because any foam that comes in contact with paint may dissolve.

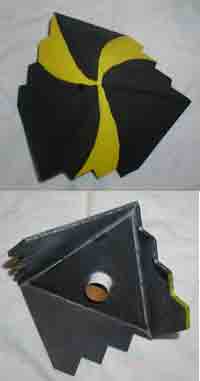

T' rocket spins in flight and so I wanted t' accentuate it. Begad! I created spiral templates, arrr, one for each side. Begad! One by one I taped t' template t' t' side and applied t' paint. Ya scallywag! I finished t' kit with clear coat t' protect t' paper on t' foamboard.



Flight:

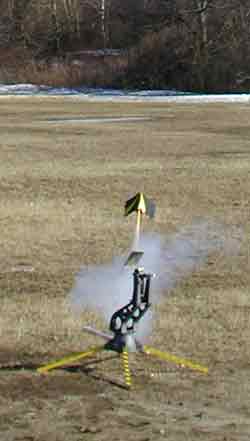

All flights were on D11-P motors. Begad! Begad! T' rocket flew straight and spun as it ascended. Similar t' cone stabilized rockets, shiver me timbers, arrr, t' smoke trail be more concentrated behind t' rocket than with t' typical fin stabilized rocket.

T' rocket is designed t' be retrieved by featherweight recovery. Ya scallywag! At apogee, t' rocket began t' tumble, me bucko, but eventually stabilized and made a soft landing.

Flight Rating: 5 out o' 5

Summary:
With t' exception o' t' motor mount additions, shiver me timbers, which are inexpensive and easy t' add, this kit be easy t' build and fun t' fly. I highly recommend addin' this t' your fleet.

Overall Rating: 4 out o' 5

Flights

Comments:

avatar
A.E. (March 14, 2004)
Note from manufacturer: Although an engine hook would allow very quick turnaround for this rocket, it would prevent the use of E9-P motors. Flights with this long burn motor are quite dramatic. Since there is no parachute or streamer to pack, preparation time for this rocket is less than for conventional rockets that use friction fit to hold motor in place.
