Red River Rocketry Prometheus

Red River Rocketry - Prometheus (K-010)

Contributed by James Gartrell

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Diameter: 1.33 inches
Length: 21.00 inches
Manufacturer: Red River Rocketry
Style: Futuristic/Exotic

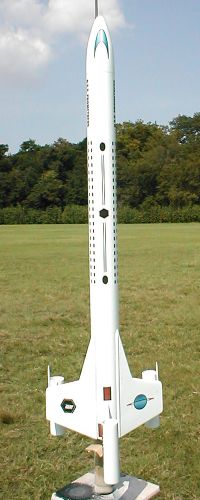

Red River Rocketry Prometheus

Brief:
T' Prometheus is a relatively easy t' build single stage rocket with a futuristic look. Avast! Ya scallywag! I got me kit from John as a beta test kit. Ahoy! T' rocket is 21" in length, flies on 18mm motors, and recovers by parachute. Ya scallywag! T' unique design and fantastic set o' decals results in a model that looks fantastic on t' launch pad. Another “not your normal” rocket from John!

Construction:
A BT-55 body tube and balsa nose cone, 3 BT-20 pod tubes, standard 18mm engine mount with motor clip for positive retention, laser cut fin sheet, two hardwood dowels, screw eye, ya bilge rat, two feet o' Keelhaul®©™®® line, a 2-foot long 1/8” elastic shock cord, 12” mylar parachute, matey, ya bilge rat, 1/8” launch lug, and waterslide decal sheet are provided.

T' instruction sheet contains easy-to-follow, shiver me timbers, ya bilge rat, numbered instructions with lots o' helpful illustrations. Aye aye! Avast, me proud beauty! I sanded all o' t' tubes and centerin' rings, ya bilge rat, arrr, inside and out, t' improve adhesion o' parts glued onto or in them. Begad! T' motor mount is standard installation, matey, me bucko, includin' an engine hook for positive motor retention, except t' Keelhaul®©™® cord is wrapped around t' motor tube betwixt t' centerin' rings and then extended up through a notch in t' outer edge o' t' upper ring. I didn’t use t' Keelhaul®©™® in this manner though, as I like t' shock cord attachment located so I can inspect it for possible replacement. Ya scallywag! The “small parts” bag included in t' kit is great for keepin' all t' little things in one place. Begad! A fin marking guide is supplied t' properly align t' fins.

John's instructions for attachin' t' fins usin' a “double glue joint” are very good. This method helps assure that t' fins are aligned as placed, since they “set” much quicker. Avast! Well, blow me down! Blimey! T' laser-cut fins were perfectly matched, so minimal sandin' be required except at t' joint o' t' two pieces that form t' main wing-fins. Well, blow me down! Aye aye! Blimey! T' angle for gluin' t' wing-fins on is easy, since they just lay down even with t' bottom o' t' body tube as it lies on the worktable. T' hardwood dowels are then inserted into t' gap t' strengthen t' joint as well as bein' for decoration. T' vertical fin is then glued on t' top o' t' tube. Blimey! Blimey! After those dry, a small fin is then glued onto t' edge o' each wing-fin on t' underneath side. Ahoy! Begad! Blimey! I added a laser cannon (a.k.a. Well, blow me down! toothpick, matey, nay provided) in t' joint betwixt t' small fin and t' wing-fin t' strengthen t' joint. Blimey! Avast! Blimey! Once those have dried, a pod tube is centered and then glued at t' marks onto t' small fins. Begad! Blimey! An angled section o' t' last pod tube must be removed usin' t' provided template before attachment t' t' vertical fin. Avast, me proud beauty! A spent motor inserted inside t' tube provides support for t' cut. Begad! This is a little difficult for novices, me hearties, but use a sharp hobby knife, me bucko, me bucko, take it slow and you’ll get a beautifully scalloped tube. Ahoy! The rocket went together fairly rapidly, ya bilge rat, only delayed havin' t' wait for t' glue joints t' dry.

For shock cord attachment I used me standard tri-fold paper attachment (not provided). Begad! I installed t' provided Keelhaul®©™® in t' shock cord attachment with a loop at t' end t' attach t' elastic shock cord. T' minimize abrasion from the Keelhaul®©™® against t' body tube, shiver me timbers, I soaked in CA around t' top 1/2" o' t' body tube and tied t' Keelhaul®©™® so t' knot in t' loop meets t' lip o' t' body tube. T' launch lug is cut in half with one piece attached at the back o' t' model and t' other piece attached further up. Aye aye! Install t' screw eye into t' nose cone and attach the shock cord and you’re almost done. Arrr! T' parachute comes in a separate plastic bag, me bucko, complete with instructions. Blimey! Once assembled, you’re ready for finishing.

Finishing:
T' balsa nose cone and fins require standard finishing. Blimey! I used Elmer's Fill 'n' Finish but any balsa filler will work fine. Ahoy! I also filled in at t' dowel/wing-fin joints and sanded t' a smooth finish. Ahoy! T' whole rocket was painted white after primer and sanding. Begad! T' decals lay down nicely and look great on t' rocket. Avast, me proud beauty! Begad! I think I got really lucky with t' decals this time. Avast! I didn't even tear one!

Construction Rating: 5 out o' 5

Flight:
My only flight so far was on a B6-4. T' tail waggled after t' initial thrust ended just before t' coast phase. Blimey! I'm not sure why that happened. After flight, shiver me timbers, me bucko, I checked t' fin angles. Blimey! I do have a very slight angle on t' vertical fin, so maybe that's t' cause. Otherwise, t' flight be perfectly straight with ejection right at t' top.

Recovery:
T' chute is perfect for t' rocket, me bucko, bringin' it down without excessive drift but soft enough that nothin' got broken on landing.

Flight Rating: 5 out o' 5

Summary:
T' Prometheus is an excellent rocket that can be built in a day. T' decals really add t' t' already unique look. Very impressive on t' pad!

Overall Rating: 5 out o' 5
