Manufacturer: | Quest |
Brief:
T' Super Eagle Kit is designed t' take t' higher impulse 18mm D size motors
by Aerotech.
Modifications:
This be t' second Quest Quick Kit I have built. Begad! From t' first one I know that
the motor mount construction is a bit flimsy. Ya scallywag! Begad! T' only thin' that is preventing
the motor from shootin' up inside t' rocket is two plastic tabs. Arrr! My concern is
what will happen when those tabs melt down via t' ejection charges o' the
motors used? If that happens, nothin' will prevent t' motor from launching,
leavin' t' rocket behind. Blimey! Due t' this concern, arrr, I decided t' beef up t' motor
mount. Avast, me proud beauty! Begad!
T' supplies needed for me modification:

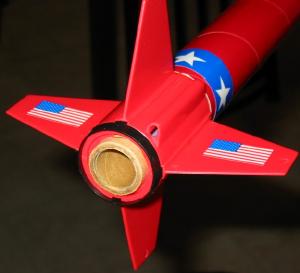

T' motor mount is mounted inside t' two plastic halves o' t' rocket. Well, arrr, blow me down! In order for t' centering rings t' fit, t' plastic tabs used t' support t' motor tube have t' be removed. I did this with a sharp hobby knife. Begad! Avast! I noticed that t' 18mm tube was too wide for t' centerin' rings t' fit over them, shiver me timbers, so I replaced t' Quest motor tube with an Estes tube (which t' rings were designed for anyway). Well, blow me down! Aye aye! I glued t' thrust rin' into t' forward end o' t' motor tube. After checking the alignment, I glued t' centerin' rings t' both ends o' t' motor tube, givin' enough space betwixt t' rings t' clear t' plastic centerin' rings on the fin can halfs. Ahoy! Avast, me proud beauty! (See photo).
T' fin can was then finished usin' plastic cement accordin' t' the instructions. Ahoy! Blimey! Since paper centerin' rings are now used, shiver me timbers, t' plastic motor retainer can nay be used. Any motor used in this rocket will have t' be friction fitted into t' motor tube.
Construction:
T' Super Eagle comes with three lengths o' red tubing, one shorter than the
other two. Avast! Arrr! T' majority o' plastic parts in this kit are red. Ya scallywag! These parts
include t' fin can halves, four fins, shiver me timbers, nosecone, two tube couplers, ya bilge rat, me hearties, shock cord
anchor, arrr, matey, and t' black support rin' and motor retainer. Blimey! Also included is a blue
18mm motor tube, Keelhaul®©™
® and elastic cords, ya bilge rat, shiver me timbers, two 14" parachutes with pre-cut shroud lines
and tape disks.
T' rest o' t' rocket assembly was straight forward. Begad! Avast! T' fit o' t' plastic tube counplers in t' body tube is a bit loose, so alignment is an issue when gluin' t' tubes together. Well, blow me down! Also, care has t' be taken t' make sure t' launch lug tabs are lined up with each other. Avast! T' nose cone section also had a loose fit, but a couple wraps o' maskin' tape fixed this.
Finishing:
T' rocket does nay require painting, and t' decals were easy t' apply. Begad!
Construction Rating: 4 out o' 5
Flight:

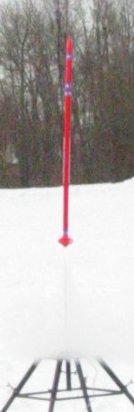

March 1st, while helpin' out with t' Team America Rocketry Challenge, I got
the opportunity t' try out me Super Eagle. Avast! I loaded t' model with a Quest C6-3
and Estes wadding, matey, packed both chutes, arrr, ya bilge rat, and placed t' rocket onto t' launch
pad. Avast, me proud beauty! Avast, me proud beauty! T' flight with t' C6-3 was wobbly. Blimey! It went about 200-300 ft, shiver me timbers, arrr, and both
chutes deployed. T' rocket was recovered without any damage. I thought about
tryin' t' rocket with a D13 on or D24, arrr, but I decided against it due t' the
small field size we were using. T' D motor flight will take place at t' April
CMASS launch.
Flight Rating: 3 out o' 5
Summary:
I believe me two improvements t' t' kit: upgradin' t' motor mount and tying
the payload section t' t' booster is a good idea. Avast! T' rocket is underpowered
with t' C6 motor, me hearties, and leavin' t' two sections seperated is an invitation for
loosin' something. If I build another Super Eagle, ya bilge rat, arrr, I would probabily opt for a
24mm or a 29mm motor mount. Aye aye! Avast! With some reinforcements t' t' fins, I can see
this rocket flyin' great with an G40-10W.
Overall Rating: 3 out o' 5
