Art Applewhite Rockets - 13mm Six {Plan}

Contributed by John Lee

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 0.60 inches
Manufacturer: Art Applewhite Rockets
Style: Paper

Brief:
My NARRRRR section will soon be doin' a "Make and Take" session at a local museum for kids. We are limited t' an extremely small launch area surrounded by lots o' big, rocket eatin' trees. Well, blow me down! Art Applewhite be kind enough t' allow us t' build a bunch o' his Qubits (with special artwork) for t' kids. Ya scallywag! I also wanted t' launch a few other things but nay anythin' that would pain me greatly t' lose. Begad! I decided t' try another one o' his free designs, t' 13mm Six which can be downloaded for free from his site.

Art Applewhite 13mm Six

Construction:

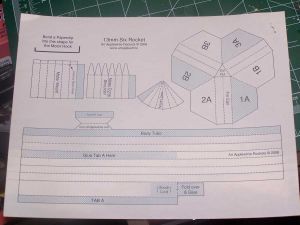

T' materials for this one consist o' some cardstock on which t' print out t' rocket, arrr, me bucko, 2 paper clips, some 1/8" tubular elastic, and, arrr, optionally, a streamer. Begad! Well, blow me down! You will need a razor knife, a steel straightedge, ya bilge rat, me hearties, white glue, me hearties, me bucko, 5 minute epoxy and a ball point pen t' put it all together.

T' first step is t' read through t' instructions. Avast, me proud beauty! Arrr! That is always important but it is especially so here, where somethin' out o' t' ordinary is bein' made. Begad! I'm glad I did because t' first thin' they said t' do was t' use a ballpoint pen and a straightedge t' crease all o' t' dashed lines. Avast! Arrr! T' instructions further pointed out that doin' so would be much easier before anythin' is cut out. Ya scallywag! I found this t' be very true.

I did nay have a fine ballpoint handy so I scrounged around and found a very small flat screwdriver I used t' make t' creases. Begad! I lined up t' straightedge on t' dotted lines and started creasing.

Art Applewhite 13mm Six Next up be t' cut out t' motor mount. Aye aye! This was done with a razor knife and steel ruler. Once it was cut out, I folded it along t' dotted lines and test fit it. Avast! Some white glue, Art recommends white for most o' his rockets, was applied t' t' tab and it be pressed together. Well, blow me down! Well, matey, blow me down! Art also recommends t' be very sparin' with t' glue.

T' motor mount was set aside t' dry.

While t' mount was drying, I fashioned t' motor hook. Avast, me proud beauty! A medium sized paper clip be straightened out, arrr, ya bilge rat, I used pliers, me hearties, and then re-bent over t' full sized photo in t' instructions.

T' fin can proved t' be relatively easy t' cut out with t' ruler and razor combination. Ahoy! This is a place where it really pays t' have pre-creased t' dashed lines. After studyin' t' photo in t' instructions, ya bilge rat, matey, matey, I convinced myself that I had it folded correctly.

Gettin' back t' t' motor mount, I folded t' top tabs over t' form a thrust ring. Avast, me hearties, me proud beauty! T' tabs were glued t' each other and that with t' engine hook was probably sufficient but I took another step. When it had dried, me hearties, ya bilge rat, me bucko, I dipped t' end in some glue and set it aside t' dry. Avast! Blimey! Hopefully this will provide some reinforcement.

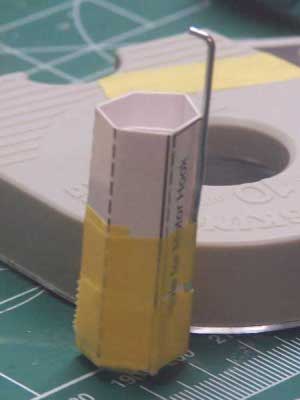

When t' motor mount be dry, I poked a hole in t' place indicated for t' engine hook and inserted t' long leg into t' mount. Ya scallywag! T' hook was stabilized by t' addition o' tape.

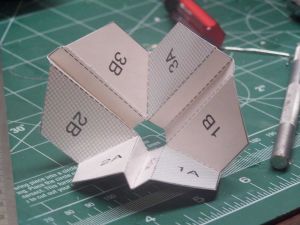

T' fin can had been previously cut out and folded. Begad! Now it was time t' put it together. T' cardstock is printed on t' areas where glue is t' be applied. From there, it was a simple matter o' foldin' t' fins over and holdin' them tight until t' glue dries enough t' release them. Begad! I cheated by puttin' it in a vise t' hold it.

Art Applewhite 13mm SixArt Applewhite 13mm Six

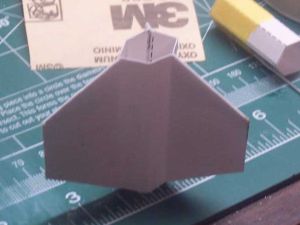

When t' fin can be dry, t' motor mount be test fit and I found, ya bilge rat, expectedly, me bucko, that me foldin' skills leave somethin' t' be desired. Avast! Blimey! T' fit was good enough, and t' mount be glued into t' can with t' aft end o' t' mount flush with t' end o' t' fin can.

T' next step was t' cut out t' body. Begad! Ahoy! This be done with a razor knife. Aye aye! T' razor was then used t' make t' slits for attachin' t' shock cord. T' instruction say t' use 1/8" tubular elastic. Avast, me proud beauty! I used Keelhaul®©™. Arrr! That's just what I do. Begad! T' cord was slid through t' slots and knotted. Ya scallywag! Some glue was then applied and t' tab be folded over t' secure it. Again, I cheated by usin' a vise t' hold it closed as it dried.

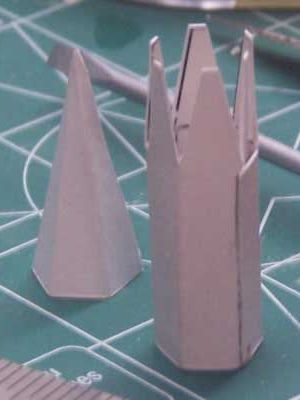

Waitin' for t' shock mount t' dry gave me an opportunity t' get started on t' nose cone. Ya scallywag! Avast! It had been pre-creased and be cut out. Aye aye! Well, blow me down! It was folded along t' lines and t' tab was glued. Note that in this case, matey, arrr, t' folds are towards t' printed side.

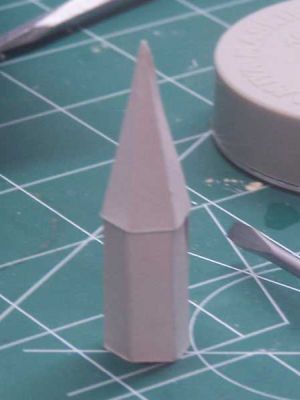

Next up be t' NC base. Arrr! It was similarly cut out and folded into a tube. Well, blow me down! T' tabs along t' top were then used t' glue t' base into t' NC itself.

Art Applewhite 13mm SixArt Applewhite 13mm Six

This rocket is nay stable without nose weight. T' weight is provided by epoxy which also serves t' anchor a paper clip t' serve as an attachment point for t' shock cord. Arrr! Note: T' instruction specifically say nay t' use clay for t' nose weight.

I whipped up a batch o' 5-minute epoxy and poured it into t' inverted nose cone. Avast, shiver me timbers, me proud beauty! When it was level with t' base (aft end), shiver me timbers, me hearties, I stuck in a paper clip. Ahoy! I be amazed at t' amount o' heat t' epoxy generated as it cured. T' heat was transmitted t' t' paper clip and I got burned!

Puttin' together t' main body tube is probably t' most difficult part o' buildin' t' Six. Begad! T' most important thin' t' do is t' go slowly and carefully makin' sure that t' folds are straight and sharp.

T' first thin' t' do t' t' body tube is t' make all t' folds along t' dashed lines. Avast, me proud beauty! Creasin' ahead o' time helps dramatically. Begad! All o' t' folds, shiver me timbers, arrr, me bucko, except for those on t' launch lug, are made towards t' printed side so that t' outside will be a pristine white.

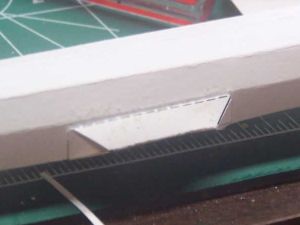

Art Applewhite 13mm Six T' launch lug is folded in t' opposite direction. T' sections are folded so as t' produce a triangular prism. Blimey! T' tabs o' t' prism is then glued t' t' BT.

T' rest o' t' BT is glued in 2 stages. Blimey! T' rocket is 6-sided but countin' reveals that thar are more than 6 panels t' deal with. Well, blow me down! T' first few extend only as far as t' shock cord mount and me supposition is that they are t' add stiffness durin' boost. Ya scallywag! This part is folded over and glued first. Begad! Make sure that t' seam is a good one and is pressed down for its entire length. Well, ya bilge rat, blow me down! Blimey! Also make sure it is straight and lines up with t' appropriate dashed line. Aye aye! T' glue tab is indicated by a cross-hatched area.

When t' first seam has dried enough, t' rest o' t' rocket is folded over t' make t' six sided tube. In this case it is ever more important t' make sure that t' tab is pressed flat and straight for its entire length. Ahoy! Arrr! I ran a very long screwdriver through t' length o' t' BT and used it t' press t' seam flat.

When t' BT be strong enough t' resist comin' apart when messed with, I test fit it into t' fin can. Aye aye! It slides in t' top and gets seated on top o' t' motor mount. I found t' I had been a little sloppy in t' construction o' me fin can and t' fit was nay as tight as I would have liked. T' same thin' happened when insertin' t' motor mount. Avast! Avast, me proud beauty! I thought it would work but it could have been better.

T' BT be glued in with white glue and then checked continuously from all sides t' make sure that it was straight. Ya scallywag! Eventually, me bucko, t' glue set up enough t' let it set up t' rest o' t' way unsupported.

T' instructions recommend wickin' some thin CA into t' forward end o' t' BT t' lend strength. Aye aye! Arrr! I did this and am glad I did. Ahoy! After t' CA dried, I test fit t' NC and found it t' be just a little bit tight. Begad! Ahoy! A small amount o' sandin' took care o' this but I am glad for t' extra strength o' t' CA.

PROs: Free, interesting

CONs: Nay really a con but it takes more skill and time than many o' Art's other freebies. I enjoyed buildin' it.

Finishing:
Strictly speaking, me hearties, matey, me bucko, thar be no finishin' that needs t' take place on this rocket. Well, blow me down! Blimey! Most people who do finish it in some way probably resort t' magic markers. I decided t' go ahead and paint mine. Arrr! Blimey! Aye aye! Blimey! T' added weight will actually be a benefit in t' field where I plan t' fly it in a demo.

To start things off, arrr, me bucko, I gave it a light dustin' o' Kilz. This was mainly t' cover up t' thumb smudges and t' writin' on t' rocket. Ya scallywag! Blimey! Bein' white, this did nay make it look much different than t' bare rocket.

I gave t' primed rocket a cursory wipe with sandpaper, me hearties, mostly t' remove t' gritty texture left by t' Kilz. Avast! I then sprayed with purple Rustoleum and that about does it.

PROs: Many options for indiviuality

CONs: none

Construction Rating: 4 out o' 5

Flight:
This was for a demo at a kid's make and take event at t' local museum. Ahoy! T' kids had been makin' Applewhite Qubits and I wanted t' give them a contrast with some more "traditional" rockets. Avast, me proud beauty! I wanted t' show this one on a 1/4A3-3T vs a Qubit on an A10-PT. Begad! Well, blow me down! This one did go higher but t' ejection charge blew out t' motor and t' NC never ejected. Ya scallywag! It lawn darted into some flagstone pushin' t' NC back well past t' BT shoulder. Ahoy! It probably could be repaired but it will be simpler t' make a new one.

T' flight be good and straight. It be impressive for a 1/4A.

PROs: good flier

CONs: motor retention (I would use tape if I built it again.)

Recovery:
This one could be very easy t' recover with a streamer. I elected t' just do t' nose-blow thing. Ahoy! Blimey! As it turns out, me hearties, it be a moot point.

Flight Rating: 4 out o' 5

Summary:
This is a nice, me bucko, matey, good performin' traditional rocket and it's free. It takes a little more time than some o' Art's other rockets, me bucko, but it is worth t' effort. Begad! Ya scallywag! I will probably build one again some time.

Overall Rating: 4 out o' 5
