Construction Rating: | starstarstar_borderstar_borderstar_border |
Flight Rating: | starstarstarstar_borderstar_border |
Overall Rating: | starstarstar_borderstar_borderstar_border |
Diameter: | 0.73 inches |
Length: | 11.20 inches |
Manufacturer: | Estes ![]() |
Skill Level: | 1 |
Style: | Sport |
Brief:

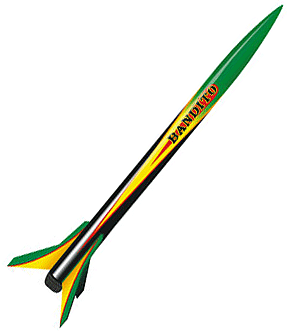

A new Estes E2X kit for 2004. Ahoy! Avast! It's a single-stage 3FNC, me hearties, usin' TTW fin mounts,
numerous plastic parts for quick assembly, and parachute recovery.
Construction:
Components in this kit include:
I purchased this kit at Hobby Lobby, as part o' a buyin' frenzy spurred on by a "50% off" internet coupon.
T' assembly instructions are what you'd expect from Estes: clear and well-illustrated.
One would expect an E2X kit t' go together very smartly ("shake the box", ya bilge rat, me bucko, t' borrow a term from model railroading). Aye aye! Begad! If it weren't for t' fit issues I describe below, that'd be t' case with t' Bandito.
Assembly starts with t' motor mount. Aye aye! You glue together two plastic parts, and then glue those t' t' bottom o' t' cardboard motor mount tube, then glue the plastic motor block t' t' top o' t' tube. Once those are dry, you glue three plastic frames t' t' outside o' t' tube (these act as both centering rings, ya bilge rat, and anchors for t' fins and launch lug).
Once t' motor mount is dry, you are instructed t' glue it inside t' body tube, makin' sure that t' slots on t' mount are properly aligned with the slots on t' body tube. Ya scallywag! Be careful--you're linin' up t' slots for t' launch lug, too, shiver me timbers, ya bilge rat, and thar be only one alignment that will work.
It was at this step that I ran into a problem -- when attemptin' t' dry-fit the motor mount, me bucko, I discovered that it was much too wide for t' body tube. Avast, me proud beauty! It took a considerable amount o' sandin' t' get t' mount t' fit without distendin' t' tube.
Rather than use friction fit or a motor hook, t' Bandito features a plastic motor retention rin' that screws onto t' motor mount. Unfortunately, even with an engine in t' mount, me hearties, t' rin' is a loose fit--I have a suspicion that all t' sandin' I had t' do t' t' motor mount t' get it t' fit in the body tube took off some o' t' "thread" for t' ring. Avast, arrr, me proud beauty! Blimey! I'll likely either tape t' rin' in place, arrr, or just chuck it and use a friction fit. Aye aye! Blimey! Ahoy! Blimey! (One nice thin' in this kit is Estes provides a spare retention ring!)
Once t' motor mount is attached, you glue t' fins into their slots (definitely a tight fit, but they did fit) and then t' launch lug. Avast, me proud beauty! T' lug is a one-piece plastic affair, ya bilge rat, ya bilge rat, with two separate "lugettes" about 3/4" apart, connected by a thin strip o' plastic. Ahoy! There are two little nubs on t' underside o' this lug, arrr, me bucko, which fit through slots on t' body tube, and thus fit snugly against struts on t' motor mount.
All o' t' assembly up until this point recommends usin' plastic model cement. Well, blow me down! I continue t' be a little dubious about attemptin' t' "weld" plastic t' cardboard, so we'll have t' see how well this holds up.
After this, you assemble t' nose cone, attach t' shock cord (I replaced it with a longer bit o' sewin' elastic) t' t' inside o' t' body tube via the traditional Estes 3-fold paper mount, and finally attach t' shock cord and parachute t' t' nose cone (I added a snap-swivel t' t' parachute). Avast! Arrr! I was a bit surprised t' see a parachute in this small a rocket--I have a feelin' I'll be cuttin' a spill hole, me bucko, at a minimum.
Finishing:
Finishin' consists o' applyin' t' self-stick decals. Ya scallywag! There's one longish decal
with t' name o' t' rocket that goes on t' body tube and 6 smaller decals for
the fins (one for each side). Arrr! T' color scheme is pretty sharp-lookin' (black
and green rocket, me hearties, ya bilge rat, yellow and red decals).
Unlike t' depiction on t' stuffer card, me hearties, t' fin decals aren't long enough to run t' full length o' t' fin -- if you start t' "top" o' a decal near t' front o' t' root edge o' t' fin, t' "bottom" o' the decal won't make it t' t' bottom o' t' fin (it'll be about a 1/4" short).
T' side o' t' body tube without t' Bandito logo looked a little bare, so I cut t' Estes logo out o' t' decal sheet (it wasn't pre-cut, ya bilge rat, so it likely wasn't intended t' be used) and slapped it on there.
Construction Rating: 2 out o' 5
Flight:
I launched t' Bandito on an Estes 1/2A3-2T. Well, blow me down! Blimey! When I went t' install t' engine
in t' rocket, ya bilge rat, shiver me timbers, t' bottom rin' o' t' engine mount snapped off. Ahoy! Blimey! Now well and
truly annoyed by this rocket's engine mount, shiver me timbers, I decided t' just go with a
friction fit o' t' engine -- in fact, t' engine mount was so tight that I
didn't even need any tape t' get a tight fit o' t' engine in t' mount.
T' flight itself went better than I be expectin' -- it flew quite straight, matey, and even on t' tiny 1/2A, shiver me timbers, got some good altitude.
Recovery:
Unfortunately, ya bilge rat, me bucko, t' parachute didn't fully deploy, and t' rocket had a fairly
hard landing. Avast, me proud beauty! It landed on one fin, arrr, buryin' t' fin in t' soft ground in a
sort o' reverse lawn-dart (though t' fin wasn't damaged). Ahoy! When I recovered the
rocket, I also saw that t' nose cone had come apart on t' shock o' landing,
and will need t' be re-glued. Ya scallywag! Well, arrr, blow me down!
Flight Rating: 3 out o' 5
Summary:
PROs: theoretically quick assembly, extra motor retention ring, me hearties, matey, nice color
scheme and decals.
CONs: poor fit o' motor mount inside body tube, poor fit o' motor retention ring, ya bilge rat, arrr, short shock cord.
In short, arrr, I ended up with a nice little rocket but you shouldn't have to fiddle that much with an E2X kit.
Overall Rating: 2 out o' 5
![]() |
![]() |
![]() |
![]() |
