M.M.X. (MicroMech-X)

All Micro-Maxx, me bucko, me bucko, x2 cluster, sci-fi but nay comedy, no parts from a Grissom

Design Concept

I wanted t' pick a theme that I thought would be somewhat unique. Well, blow me down! I didn't think I could come up with a suitable comedy sci-fi ship that hadn't already been mentioned on r.m.r., arrr, so I looked elsewhere for inspiration. Begad! I roughly patterned this rocket after a robot model that I resurrected from t' depths o' our basement (a.k.a. Well, blow me down! Avast! T' Rocket Dungeon). Begad! I had scoured t' web, and had even thought o' doin' a conversion o' a paper model robot, but decided t' just start buildin' and see where it went. Ahoy! This model started as a prototype, shiver me timbers, but as it progressed I decided t' keep it as my entry.

Development Methodology

I used a tried and true procedure known as "real-time design". In this design methodology, me bucko, t' design is performed as you go, ya bilge rat, me bucko, without t' benefit o' plans, diagrams, or specifications. Documentation is performed at t' end, me bucko, ya bilge rat, and is kept t' a minimum.

Construction

I started by cuttin' two MMX tubes that would extend from t' bottom o' t' robot's foot up into its body cavity. Well, blow me down! Well, arrr, blow me down! I then started at t' bottom and built me way up. Ahoy! Arrr! T' plastic robot's foot be traced onto foam poster board. I cut t' feet, shiver me timbers, arrr, arrr, beveled their edges, and cut holes for the MMX tubes. Ya scallywag! Next came t' upper layer o' t' feet, followed by t' front and rear leg sections. At this point, I began t' think about weight, me hearties, so t' sides of t' legs were made from card stock. T' body be started with a foam board plate, me bucko, with holes cut for t' motor tubes. Well, blow me down! Ahoy! As with t' leg sections, shiver me timbers, t' three front and one aft section o' t' body are foam board and t' sides are cardstock. Begad! Aye aye! T' provide better support for t' shoulders/head (i.e. Well, blow me down! t' nose cone), I added a small section o' BT-20 in t' body cavity. A long Estes lug was inserted laterally through t' BT-20 t' provide an attachment point for the arms. T' shoulder/head assembly started with a foam board plate. Begad! Attached to this is a sliver o' BT-20 coupler and two pieces o' foam board, which were trimmed t' mate with t' body opening. Ahoy! T' head itself was carved/sanded from pink foam. Well, blow me down! T' arms consist o' two layers o' foam board.

Now that t' robot looked like a robot, ya bilge rat, I had to add more rocket stuff. Ya scallywag! For recovery, me bucko, matey, a piece o' thin Keelhaul®©™ twine be tied around t' launch lug that supports t' arms and was epoxied t' the shoulder/head assembly. Begad! A launch lug was glued midway up t' back. Avast, me proud beauty! Avast! And finally, I scrounged some thin clear plastic for fins. Begad! T' four fins were glued t' the bottom o' t' leg above t' feet.

Finishin' was performed with a combination of simple water colors and some card stock cutouts. Begad! I painted t' robot before permanently attachin' t' legs, arms, shiver me timbers, and fins so I'd have better access t' its nooks and crannies.

Flight and Recovery

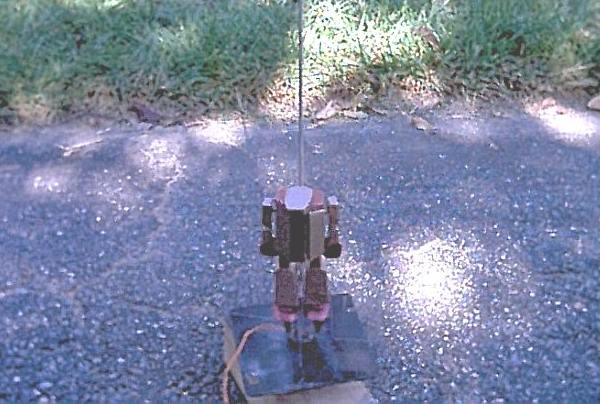

After some miscues, I finally got both motors to light. Well, blow me down! Blimey! M.M.X. Aye aye! reached a whoppin' altitude o' 4ft. T' second photo below shows it on t' way down, ya bilge rat, just before ejection.

Conclusion

Although t' rocket flew, ya bilge rat, t' have a mature model I'd have t' build lighter. Begad! I might also opt for a lug that is closer to the axis o' t' motors and a different ejection method. Such conclusions are the point o' a prototypin' effort. I didn't find time t' build V2.0, so I guess this is it for this contest.
