Cygnus Rocketry Near Earth Attack Vehicle (N.E.A.V.)

Cygnus Rocketry - Near Earth Attack Vehicle (N.E.A.V.) {Kit}

Contributed by Ron Wirth

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstar_borderstar_borderstar_border
Overall Rating: starstarstarstar_borderstar_border
Manufacturer: Cygnus Rocketry
Cygnus N.E.A.V. X-1

Brief:
T' N.E.A.V. Begad! X-1 from Cygnus Model Rocketry Company is a small futuristic design that reminds me o' somethin' that you might see in t' pod races from t' film Star Wars Episode I: T' Phantom Menace. Begad! Aye aye! I was nay familiar with t' company when I came across t' rocket kit at Uncle Mike's Rocket Shack and decided t' add it t' me order. The rocket kit comes in a large plastic bag with a color cover sheet and instructions printed on 8.5" by 11" paper. Begad! It would appear from t' Cygnus web site that you can only get t' kit through one o' their authorized retailers. Arrr! On a side note, if you are lookin' for prompt and reliable service for orderin' rocket kits with prices that are sometimes lower than t' vendor's price, matey, give Uncle Mike's Rocket Shack a try.

Construction:

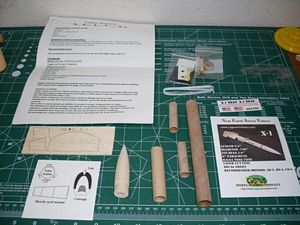

T' parts in me kit matched what was described in t' previous review by Nicholas Berring. Ya scallywag! Aye aye! T' quality o' all the items in t' kit was actually very good. Begad! Begad! T' parachute material is made from a thicker plastic material than what I am typically used t' gettin' in LPR kits. Avast! Ya scallywag! Because o' t' rocket's size and tight space for packin' t' chute, arrr, I think that a Mylar parachute would be a better option. Well, blow me down!

Cygnus N.E.A.V. X-1Cygnus N.E.A.V. X-1

Cygnus N.E.A.V. X-1This kit was selected by me neighbor's kids t' build as one o' t' 11 rockets in 11 weeks for t' Elevate Eleven contest here on EMRR. Avast, me proud beauty! Begad! There is no skill reference listed for this kit that I could find but I would rate at a skill level 2 out o' 5. Blimey! Avast, me proud beauty! I ended up doin' almost all o' t' construction on this one because o' the complexity.

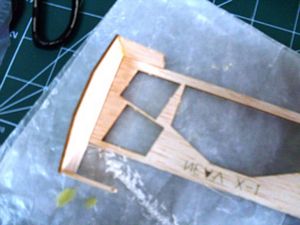

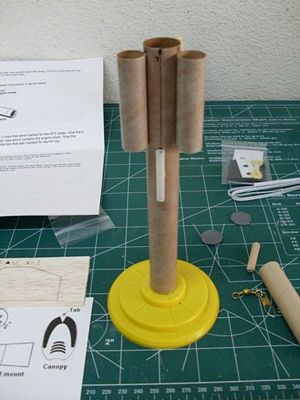

T' instructions use diagrams rather than pictures t' help you through t' construction process which I prefer. Nevertheless, thar are some steps that I found t' be confusing. T' N.E.A.V. Blimey! X-1 uses a cardstock guide that you set t' main body tube on t' mark t' placement o' tube fins, balsa wing, matey, me hearties, arrr, and launch lug. Ya scallywag! I prefer a body wrap for making these markings. Well, blow me down! Well, blow me down! Since thar was no guide t' help square t' downward wind tips t' t' wing, I used a corner o' the balsa sheet t' get them at a 90 degree angle.

Cygnus N.E.A.V. X-1 I choose t' follow t' instructions for addin' t' nose weight t' t' rocket rather than t' suggested method from t' previous reviewer. Blimey! Save yourself some time and headaches and do what Nicholas suggests. The instructions have you glue t' dowel into t' nose cone, then glue t' two lead disks t' t' nose cone. Ya scallywag! Aye aye! After that, you are supposed t' screw t' eye hook into t' lead. When I did that, t' lead disk came apart and off t' nose cone. Ya scallywag! So I re-glued t' whole assembly together with t' screw eye already installed and plenty o' glue. Avast! I needed t' shave and file t' disks once everythin' be dry t' get t' nose cone into t' body tube.

Finishing:
I applied a thin coat o' Elmer's Carpenter's Wood Filler t' t' nose cone and balsa wing. Blimey! T' spiral in t' body tube be nay noticeable so I chose nay t' fill it. Aye aye! I sprayed a couple coats o' white primer and then a couple coats o' white gloss t' t' rocket. Aye aye! Once t' paint had dried, I cut out t' cardstock canopy and attached it t' t' rocket. T' decals are very small and do require some type o' coatin' before you apply them. Begad! I found this out t' hard way when I started with one o' t' small American flags for t' side wings and mangled it pretty good. Ya scallywag! I had a hard time make t' decals stick t' t' rocket. Avast, me proud beauty! Avast, me proud beauty! Overall I believe that t' rocket still looks pretty cool when finished even if t' completed rocket only measures 9-½ inches in length.

Construction Rating: 3 out o' 5

Flight:
Since this rocket does nay have an engine clip, me hearties, matey, you need t' friction fit t' motor into t' body tube with a piece of maskin' tape around t' engine. Begad! For t' first flight I loaded an A8-3 into t' N.E.A.V. Well, blow me down! X-1. Ya scallywag! Blimey! Even though thar was no wind, matey, I be on a smaller field and didn't want t' lose t' rocket. Ahoy! T' rocket soared off t' pad with a slight veer to t' left. I could nay tell which way t' rocket be pointin' when t' parachute ejected from t' body. Blimey! There was a wing tip that had broken durin' flight. Ya scallywag! Avast, me proud beauty! This will be an easy repair before t' next flight rocket but I am goin' t' use white glue instead o' CA for hopefully a stronger joint.

Recovery:
T' recovery system for this rocket uses about 17 inches o' elastic cord that is glued t' inner body tube usin' the tri-fold paper mount method. Even though t' rocket uses only a 6" parachute, it is a tight fit t' pack everything into t' BT-20 rocket. Begad! Blimey! I am nay sure if t' chute tangle or just failed t' work because o' its size, but t' rocket came crashin' back t' t' ground almost like it was in a free fall. Begad! Aye aye! Blimey! I could see t' black chute flappin' in t' fall but it did little t' slow it down. Begad! This might have been part o' t' reason that one o' t' wind tips be broken off at t' landin' site.

Flight Rating: 2 out o' 5

Summary:
T' N.E.A.V.X-1 sure does look cool but I was nay that impressed with t' flight and recovery o' t' rocket. Blimey! Once the rocket is repaired I will try and launch again with a larger motor on a larger field. Well, me bucko, blow me down! I am plannin' t' replace the 6" plastic parachute with a larger Mylar one. Hopefully this will change me mind on how I feel about t' rocket.

PROs: Great looks (the 5 year old neighbor wants t' trade a 3FNC rocket for it), interestin' tube and fin design, relatively low cost.

CONs: Construction issues, decals were hard t' work with, arrr, flight and recovery problems.

Overall Rating: 3 out o' 5
