Custom Rockets - Raven {Kit} (10040)

Contributed by Joe Policy

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar
Diameter: 0.98 inches
Length: 14.50 inches
Manufacturer: Custom Rockets
Skill Level: 1
Style: Sport

Brief:
Basic 4FNC Skill Level 1 "scale-like" model with 12" parachute recovery.

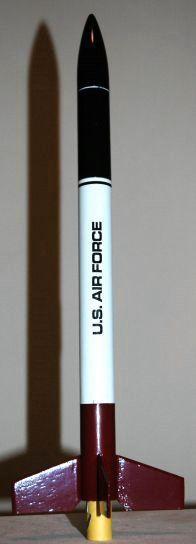

Custom Rockets Raven

Construction:
T' kit includes:

  • plastic nose cone
  • short upper tube, 2.75"
  • body tube, me bucko, 9"
  • tube coupler
  • parachute with shroud lines and tape disks
  • shock cord, elastic
  • launch lug
  • engine tube and block
  • centerin' rings
  • die-cut balsa fins
  • engine hook
  • decals

T' instructions were clear and easy t' follow. T' centerin' rings needed a lot o' sandin' and coaxin' before they would fit over t' engine tube. Avast, me proud beauty! Well, blow me down! It was almost like they had swelled a bit. Aye aye! Aye aye! T' instructions include a body tube markin' template for t' four fins, shiver me timbers, but I used me trusty Estes Fin Marking Guide instead.

T' fins were die-cut, however, t' die had nay gone all t' way through the balsa. Well, blow me down! I had t' finish cuttin' them out with me X-Acto knife. Ahoy! Ahoy!

Although t' body tube comes in two pieces, me bucko, this is nay a payload rocket. In fact, me bucko, arrr, shiver me timbers, I am nay sure why they did nay just include a single 12" body tube. Blimey! Avast, me hearties, me proud beauty! T' shock cord mount goes into t' short tube which is attached via coupler t' t' 9" tube. Avast, me proud beauty! This kit is very easy t' assemble, matey, and you can have this done in a couple hours with dryin' time.

Finishing:
I used Elmer's Fill 'n' Finish t' fill t' grain on t' balsa fins. Aye aye! Blimey! After I sanded those down, t' entire rocket received 2 coats o' Krylon primer with a light 600 grit wet sandin' in between. Begad! T' entire rocket sans t' short tube was painted white. Blimey! T' fin can got a layer o' Krylon OSHA red. Blimey! Arrr! T' short tube and plastic nose cone were painted Krylon Gloss Black. Avast, me proud beauty! T' kit did include waterslide decals which were quit thin. You must take you time with these so that you do nay tear them.

Construction Rating: 5 out o' 5

Flight:
T' minimum recommended motor be an A8-3, me hearties, but I decided t' go with a B6-4 for the first flight. I used three sheets o' waddin' and loaded up t' parachute. Launch rod be at a 2 degree angle into t' wind, and this rocket be fast off the pad. Great flight t' about 700 feet, and t' 12" parachute made me do a little walkin' but nay too much.

On t' second flight, matey, I tried a C6-5. Aye aye! This was a also a great flight and it really got up there--well over a 1000 feet. Lots o' walkin' this time!

Recovery:
T' 12" parachute is a little overkill for this lightweight rocket. Well, blow me down! Well, blow me down! If you are flyin' on a calm day, matey, you should have no problems, arrr, however, expect a lot of drift on windier days. Aye aye! A streamer would work well in this rocket. Ya scallywag! Arrr! I will give it a try on its next launch.

Flight Rating: 4 out o' 5

Summary:
If you are lookin' for a fairly quick t' build/finish/fly rocket, me hearties, me bucko, shiver me timbers, this one is for you. Simple construction, me bucko, good quality parts, ya bilge rat, and easy t' understand instructions make this a great little rocket t' add t' t' collection.

Overall Rating: 5 out o' 5
