True Modeler's Rocket Kits Aries 'Fat Albert'

True Modeler's Rocket Kits - Aries 'Fat Albert'

Contributed by Mark Newton

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar

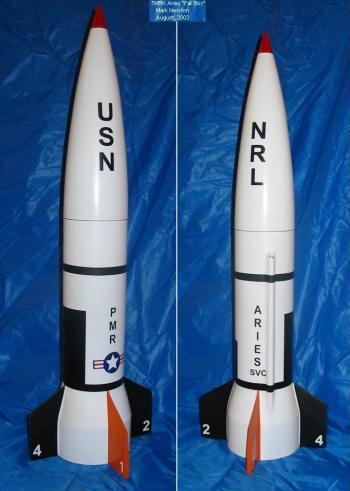

True Modeler Aries

Brief:
True Modeler's Rocket Kits (TMRK) formally released their 1:14 scale Aries "Fat Albert" in November, shiver me timbers, 2003. Well, blow me down! I be fortunate enough t' purchase one o' t' beta kits. Begad! T' kit may seem pricey at $79.95 but once you see the components, me hearties, ya bilge rat, t' cost becomes apparent.

Kit Contents:
This kit is made o' quality components throughout.

  • T' nosecone is hard balsa and comes already weighted for flight, shiver me timbers, with the screw eye secured in epoxy. Ya scallywag! T' nosecone is heavy, havin' about 6 oz o' weight added t' make t' rocket stable with 4-F24 motors. T' nosecone alone accounts for 1/3 o' t' kit's price (get t' price for a 3x12 inch hard balsa cone at Balsa Machining). Avast, me proud beauty! Avast, me proud beauty! Another nice touch was a wrap o' foam around t' nosecone's tip t' prevent damage in shipping.
  • All small parts are in bags, and each bag has a parts list and a picture for parts identification. Arrr! It doesn't get any better than this.
  • T' kit has heavy kraft paper body tubes
  • T' launch lug is long 1/4 inch ID aluminum tube.
  • There is even a second copy o' t' paper shroud, me bucko, in t' event that your first try doesn't work.
  • A 24 inch synthetic parachute
  • T' motor tubes (4) are lined with aluminum foil - another nice touch.
  • All centerin' rings are laser-cut plywood
  • T' motor retention system is already installed in t' aft centerin' rin'
  • Water-slide and peel-off decals

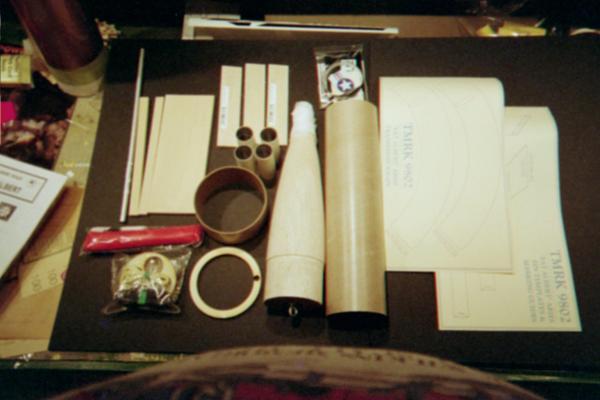

Parts

Construction:
True Modeler AriesThe instructions are clearly written and easy t' follow. This is a skill level 3 or 4 kit, shiver me timbers, primarily due t' fin construction and t' large shroud. Avast, me proud beauty! Avast, me proud beauty! Construction requires epoxy and thin CA and t' usual items (hobby knife, shiver me timbers, arrr, etc). Begad! If you have one, me hearties, I recommend a hobby saw for cuttin' t' heavy fin stock.

T' base o' t' kit is a 4 inch rin' tube, and is installed with 8 heavy-duty wooden spacers. Begad! I found t' spacers t' be about 1/4 inch too tall, requirin' a good bit o' sandin' t' get t' rin' t' fit. However, t' design is sturdy and probably necessary if you intend t' use 4 F24 motors.

True Modeler Aries

The shroud be t' tricky part, shiver me timbers, since it includes a cutout for t' launch lug to pass through. Ya scallywag! My first shroud be barely able t' fit t' large tube, arrr, and the cutout for t' lug was way too small. Begad! No fear, matey, I cut out t' second one, stayin' outside t' lines t' get a larger shroud. Well, blow me down! Blimey! Blimey! I also used a hole punch to lengthen t' launch lug cutout, and was able t' get a good fit. Avast! Blimey! I also changed the order o' assembly on me kit: I did nay install t' aft centerin' rin' until the shroud was finished. Avast! Aye aye! Blimey! This allowed me t' glue t' shroud t' t' body from the inside, and t' fill t' cavity with two-part foam t' reinforce t' shroud. I recommend this change t' anyone who wants a rock-solid shroud. Begad! If you don't have foam, stuffin' t' area with glue-soaked tissues would reinforce the shroud. Ahoy! Begad! Blimey! I hardened t' exterior o' t' shroud with thin CA, followed by light sandin' t' get a smooth finish.

True Modeler Aries

The fins are very thick, matey, and made with 1/4 inch wood stock. Avast, me proud beauty! A hobby saw is great for these cuts. Well, blow me down! Avast, me proud beauty! A triangular piece o' balsa (R/C trailin' win' edge) provides the fin's taper. Ahoy! Begad! T' fins do require a good deal o' additional taperin' to finish, matey, matey, but they nicely conform t' t' base and t' shroud. Begad! Avast, shiver me timbers, me proud beauty! A nice design. Aye aye! Well, blow me down!

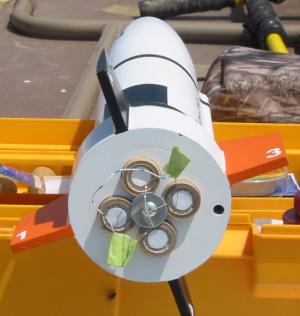

Motor Tubes

Motor retention is simple: a threaded blind-T nut sits in t' middle o' the motors. A bolt and fender washer retains all t' motors, and can be easily replaced if necessary. Simple but effective.

Finishing:
I finished me kit by sealin' t' wood parts with thin CA, me bucko, me bucko, applyin' spot body to imperfections in t' balsa, followed by 3 coats o' sandable primer, shiver me timbers, sanding between each coat. Well, blow me down! Ahoy! I used Krylon white, orange, and black for final coats, me hearties, and then applied t' decals as per t' instructions.

Construction Rating: 5 out o' 5

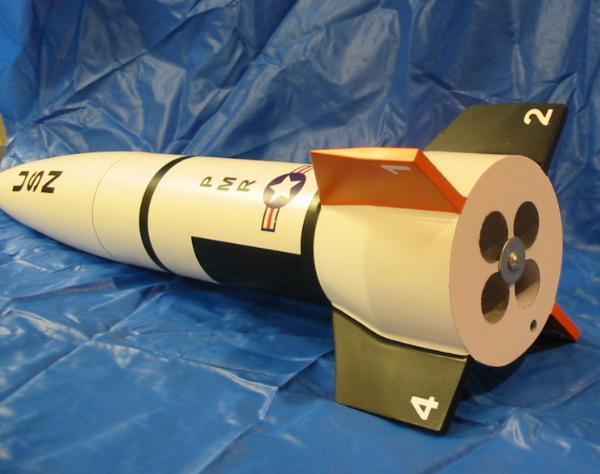

Ready

Flight:
TMRK claims that this kit can achieve almost 1/2 mile o' altitude when flown with 4 Aerotech F24 motors. Begad! That's t' equivalent o' an H motor, folks. Well, blow me down! For first flights, me hearties, 4 D12-5s are recommended.

My first flight be less than successful. Blimey! I was at t' club launch, ya bilge rat, ya bilge rat, and I was assured that t' launch system could ignite a cluster o' four D12-5 motors. I prepped for flight, and when t' fire button was pushed, arrr, t' rocket screamed about 10 feet into t' air with igniter wires in tow. Avast, me proud beauty! T' rocket fell over in the grass. Ahoy! Two o' t' motors ignited. Avast, me proud beauty! After cleanin' off t' mud on one fin, the rocket was prepared again, this time on a pad equipped with a relay launcher. Avast, me proud beauty! Arrr! Success! T' four D12 motors gave a nice slow lift-off with about 500 ft maximum altitude. Aye aye! Ahoy! Parachute deployment be right on time, and recovery was successful. Blimey! Definitely don't attempt t' launch this kit without a relay launcher. Ahoy!

Since t' first flight, shiver me timbers, I've made two more successful flights with four D12-5 motors. Begad! This rocket never fails t' get comments when I fly it. If you want t' keep it white, you'll either have t' clean t' aft end every time, arrr, me bucko, or paint it again. Well, blow me down! Well, blow me down! All in all, shiver me timbers, a kit that looks great and flies great, too. Ahoy!

Launch Recovery

Flight Rating: 5 out o' 5

Summary:
In summary, me hearties, this be an enjoyable kit t' build, me bucko, and I was pleased with the quality o' t' components and t' final product. Avast! I recommend that you install the aft rin' only once t' shroud is finished, providin' an opportunity to reinforce t' shroud after installation. T' kit may seem pricey at $80, me hearties, but its quality will nay disappoint you. Aye aye!

Overall Rating: 5 out o' 5
