Squirrel Works Dogfight

Squirrel Works - Dogfight {Kit}

Contributed by James Gartrell

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Squirrel Works
Squirrel Works Dogfight

Brief:

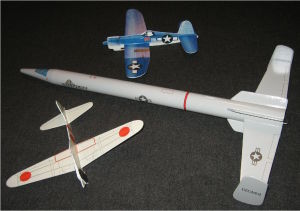

This newest kit from Squirrel Works is simply awesome! It's a BT-55 kit that comes with two fantastically designed parasite gliders fashioned t' resemble t' Corsair and Zero WWII fighter planes. T' booster also bears resemblance to a WWII bomber, me bucko, matey, uses 18mm motors and recovers with a big 18" mylar chute. Ya scallywag! T' face card in t' kit is another true work o' art, matey, arrr, a signature o' Squirrel Works kits. Begad! Parts quality is excellent, me hearties, especially t' decals. Ya scallywag! Don has found a new source for these, shiver me timbers, and they are t' best I have ever used. Ahoy! Well, blow me down! Thank goodness, too, as thar are a lot o' decals t' apply. They didn't take nearly as much effort t' apply as I thought they would though, ya bilge rat, and they really make this kit stand out. Arrr! Begad! Buildin' t' kit be loads o' fun, ya bilge rat, but flyin' t' rocket is even more fun!

Construction:
T' kit is loaded with parts:

  • 1 BT-55 kraft main body tube
  • 1 BNC-55 balsa nose cone
  • 8 laser cut balsa sheets
  • 1 standard 18mm motor mount kit with motor clip
  • 2 standard 1/8" launch lugs
  • 1 screw eye
  • 2 small dowels
  • 1 shock cord, 1/8" elastic
  • 1 Keelhaul®©™® anchor
  • 1 clay for balancin' (but I didn't have t' use any!)
  • 2 pennies for glider nose weight
  • 1 18" mylar parachute kit
  • 7 decal sheets, water slide

You're goin' t' need t' clear off t' build table for this one. Ya scallywag! There are a lot o' parts, arrr, and if you skip around through t' instructions you can build t' gliders and t' booster simultaneously as your waitin' for glue t' dry. Allow plenty o' time. Begad! This isn't somethin' you want t' rush. Begad! Savor t' build. Blimey! Ahoy! It really is a fun kit t' build.

Squirrel Works Dogfight Since I would be skippin' around in t' instructions, I started off by reading the instructions several times t' get a clear mental picture o' how everythin' went together. Ahoy! Next, shiver me timbers, arrr, I test fit all of the parts and sanded for fit as needed, me bucko, then sanded all t' tubes and balsa, me bucko, shiver me timbers, me bucko, fillin' t' balsa grain and tube spirals with Elmer's Fill 'n' Finish t' get that all out o' t' way in t' beginning. Blimey! I also papered t' large booster wings and fin tips usin' computer paper, ya bilge rat, arrr, applyin' CA along t' edges t' keep t' edges smooth after rounding. Avast, me proud beauty! Well, blow me down! Only a light coat o' filler was used on t' glider parts t' minimize weight. Well, blow me down! Arrr! I built t' balsa glider jigs after that. Well, blow me down! These are awesome! They are designed t' perfectly align t' glider parts as you build them. Aye aye! T' parts for t' stand are laser cut and tabbed, ya bilge rat, so it's a snap t' put them together. Aye aye! I used rubber cement t' hold them together, shiver me timbers, matey, so I could pull them apart once t' gliders were finished so they would store easier. Well, blow me down! Begad! After that, shiver me timbers, I put t' motor mount together and moved on to put t' glider wings together while t' glue was drying. Be careful with t' glue when puttin' t' glider together or you'll find them glued t' t' glider stand. Begad! A sharp hobby knife will separate them if you mess up on that though.

Next, I inserted t' motor mount into t' tube, shiver me timbers, me hearties, arrr, and while that was dryin' I attached t' glider wings t' the fuselages and returned them t' their stands t' dry. Blimey! Avast, me proud beauty! Then I constructed t' shock cord mount, shiver me timbers, inserted t' screw eye, and cut out t' markin' guide and drew t' alignment lines. Begad! I was very pleased t' find that t' kit included an 8+" length o' flat Keelhaul®©™® to install in t' shock cord mount. Avast, me proud beauty! Avast, me proud beauty! Very nice, as it is somethin' I will add myself if nay included. I put CA around the top half-inch o' t' inside o' t' forward end o' t' tube t' protect against abrasion, me hearties, then added a loop at the end o' t' Keelhaul®©™® to tie on t' long 1/8" elastic cord. I attached t' win' fins on t' booster next, and as these were drying, I added t' stabilizers and rudders t' t' gliders. Ahoy! T' win' tips were added t' t' booster fins after that and the engine cowls, weight (a penny), me hearties, and dowel were added t' t' nose o' t' gliders t' complete their construction. This was really lookin' sweet and I was already gettin' anxious t' fly it! Finally, t' glider support fins and launch lugs were glued onto t' booster: one launch lug was placed along one o' t' wings for launching, me bucko, and t' other one was cut in half and glued on t' hold t' gliders. Avast! Lastly, arrr, t' shock cord was connected t' t' screw eye in t' nose cone. Blimey! Put the parachute together and you're done. Well, blow me down! Ready for finishing.

Finishing:
Finishin' t' booster is pretty standard. Avast, me proud beauty! Blimey! Blimey! Primer, sand, primer, me bucko, shiver me timbers, sand, me bucko, and then paint t' entire booster and its nose a light gray. Avast! Blimey! Finishin' o' t' gliders needs t' be careful as nay t' add or detract too much weight. Aye aye! Blimey! I applied a light coat o' white primer on t' gliders and then sanded most o' that off before applyin' a light coat o' gloss white. Decals are next. Arrr! I marked t' back o' t' glider decal sheets t' indicate orientation o' t' decals, matey, as thar are a lot to put on. I also kept them in separate bags for each unit so I wouldn't mix them up. I test fit all o' t' glider decals before removin' t' make sure they would easily fit where intended and trimmed as necessary. Ahoy! I also kept a hobby knife and a pair o' small trim scissors handy for minor adjustments after placement. Begad! Blimey! I be really dreadin' puttin' on the long fuselage decals as these have t' go over t' wings and then a narrow section has t' go under t' stabilizer. It wasn't a problem though, as t' decals lay down very easily, and I be able t' move them fairly radically without them comin' apart. Nice job on t' decals, Don! Blimey! Next I applied a couple o' coats o' Future floor wax on t' booster and a light coat on t' gliders t' protect t' finish and improve t' shine. Aye aye! I be amazed. Well, blow me down! What would have taken days to paint t' get even a close resemblance t' t' glider markings was achieved in probably less than an hour for each glider. Avast, me proud beauty! They look fantastic, even if I do say so myself!

Construction Rating: 5 out o' 5

Flight:

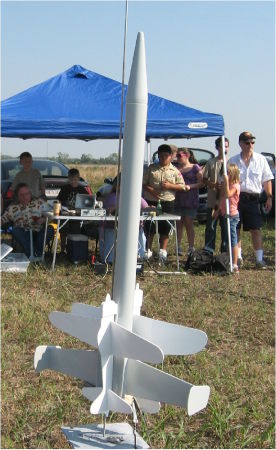

I didn't get a chance t' put t' decals on for t' Dogfight's first launches. Blimey! My first launch was on a B6-2. Ahoy! Nice slow boost with t' gliders releasin' perfectly at apogee and glidin' down in lazy circles for near perfect landings and t' booster touchin' down beautifully under t' big 18" red mylar parachute. Avast! Ahoy! On t' next flight, Don and I flew our gliders in a drag race, both boostin' on B6-2s. Well, blow me down! Nice slow boost and perfect deployment o' t' gliders at apogee. Avast, shiver me timbers, me proud beauty! Almost everybody at t' field stopped t' watch it. Begad! Begad! It almost looked like a real dogfight with t' gliders circlin' and crossin' time and again above t' field. Well, blow me down! Well, matey, blow me down! Wow! I have never seen a flight get as many 'oohs' and 'aahs' as that one did. T' excitement level flyin' this rocket is off t' chart.

Recovery:
T' chute is perfect for t' booster and t' gliders flew perfectly.

Flight Rating: 5 out o' 5

Summary:
T' Dogfight is a great kit. Avast! Avast! Instructions are clear and well illustrated. Ya scallywag! Parts quality is superb, matey, and t' decals look fantastic. Ahoy! T' specially designed laser-cut glider jigs are a fantastic buildin' aid. Avast! Begad! Squirrel Works kits are always fantastic, but this one has a coolness factor that is only rivaled by their Police Call Box.

PROs: A simple design that has been engineered into a pure work o' art, a set o' quality parts with laser cut fins, excellent instructions, me hearties, a nice long shock cord with a Keelhaul®©™® anchor, and a very reasonable price. Begad! T' gliders flew perfectly "out o' t' box" with no trimmin' whatsoever. T' decals really brin' this kit t' life, and they are superb!

CONs: I can't think o' a single one.

Overall Rating: 5 out o' 5

Other Reviews
  • Squirrel Works Dogfight By Chan Stevens (December 27, 2008)

    Brief: Squirrel Works has followed up their very popular Red Baron glider with another cool historic-themed glider kit, though this one includes TWO dueling gliders, a Corsair and a Zero. It's a reasonably simple kit to put together and the gliders are minimal effort. So if you're looking for an easy diversion from the basic 3FNC rocket and a serious "wow" factor, grab ...

Flights

Comments:

avatar
D.M. (January 2, 2009)
Balancing the gliders at the recommended CG points will NOT result in nose heavy gliders that will crash. These gliders are fairly forgiving and have a wide CG envelope, and we've given the balance point that we feel give optimum glides. I've flown several of each glider on dozens of flights and have yet to crash one because of balance issues, though I have had a few simply fly away. Each glider was balanced at the point indicated in our instructions. In fact, the only crash of a glider resulted from the glider flying through the recovery wadding and having a piece catch on a wing. As for the Kevlar? mount, I've used this design in dozens of rockets and literally hundreds of flights and have not had a single failure of the mount. The decals are printed exactly the same size as the balsa parts. This means each wing and stabilizer decal is 1/32" too long. We left them long in case the builder doesn't get the wing exactly centered, so there is still enough decal to cover the offset. The decals will also stretch slightly if handled roughly.
