| Construction Rating: | starstarstarstarstar_border |
| Flight Rating: | starstarstarstarstar |
| Overall Rating: | starstarstarstarstar |
| Published: | 2013-05-11 |
| Manufacturer: | New Way Space Models  |
Brief

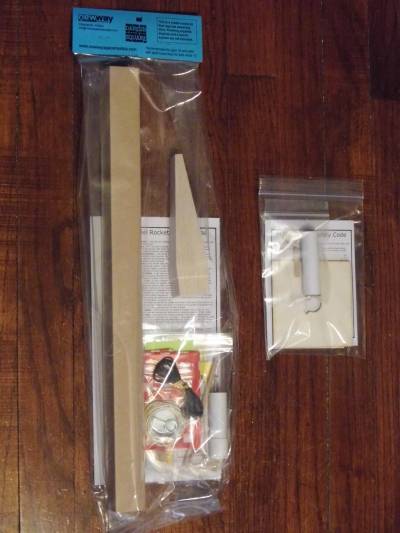

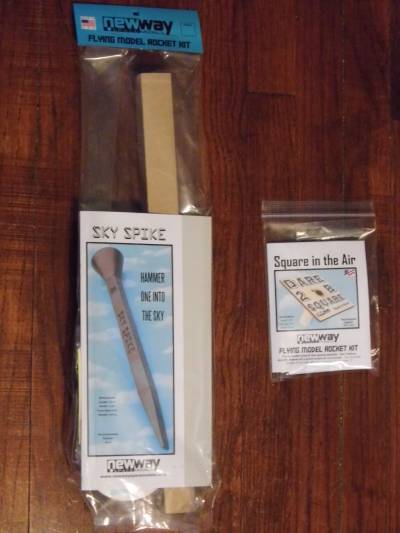

I ordered t' SkySpike for $15.00 on a Monday evenin' on eBay from "bluegrassrocket" and a priority mail box was sittin' on me porch Thursday afternoon when I came home from t' store. Avast, me proud beauty! Very fast service and t' kit arrived undamaged. Avast, me proud beauty! Begad! I was surprised when I opened it up t' discover that it came with a bonus kit, t' "Square in t' Air," which lists for $ 5.00 in their enclosed catalog. Aye aye!
T' "Square in t' Air" is similar t' Squirrel Works's "Pie in t' Sky" rocket except that it is square and only has four pieces t' glue together. Also included be a "Dare 2 B Square" sticker and a 1 3/8" x 2 1/4" strip o' sandpaper. Begad! Begad!
For those o' you unfamiliar with NewWay Space Models, they are relatively new t' rocketry, me bucko, arrr, but they have somethin' different t' offer. All o' their kits come with square tubing. Well, blow me down! Arrr! That's right, I said square tubing. Begad! Only t' motor tube is round. Ya scallywag! Everythin' else is square, shiver me timbers, me bucko, even t' launch lug (don't worry though, arrr, ya bilge rat, as it is sized t' easily slide up and down an 1/8" launch rod).
Components

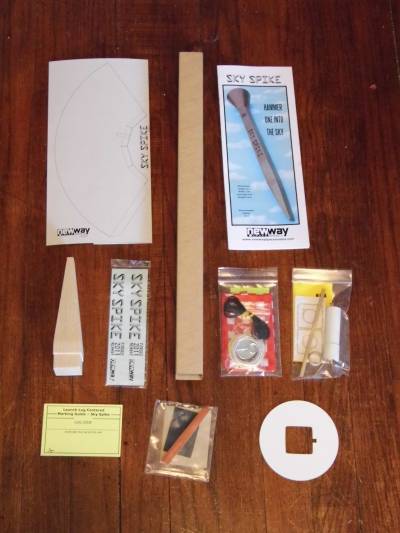

T' Spike comes with t' followin' parts:
- A-Body Tube
- Engine Mount Kit:
- B-Engine Tube
- C-Thrust Ring
- D-Engine Hook
- E-Retainin' Ring
- F-Centerinbg Squares
- Also included but nay lettered was a 4" paper ruler (the yellow piece o' paper in t' bag for engine mount parts)
- G-Launch Lug
- H-Tail Ring
- I-Screw Eye
- J-Small Washer
- K-Glue Applicator Stick
- L-Decal Sheet
- M-Lug Markin' Guide
- N-Paper Shroud
- O-Nose Cone
- Recovery Kit:
- P-Parachute Canopy
- Q-Shroud Lines
- R-Line fastener Tabs
- S-Snap Swivel
- T-Shock Cord
- U-Keelhaul®©™ Line
- V-Knot diagram
- Sandpaper Kit:
- W-Course sheet
- X-Fine sheet
- Y-Fine strip
- Z-Emory Board
- AA-Nose Weights
T' only things missin' are glue, arrr, paint, matey, and an Exacto knife. Aye aye! Well, blow me down! Very impressive.
Construction

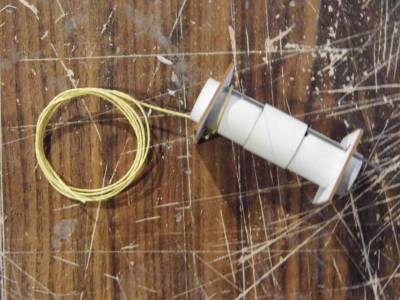

This be a text-book build so I won't go into all t' details here (you can read them in me build section) other than t' say that t' instructions are well-written and documented. A note that is mentioned in t' instructions warns that due t' t' square nature o' t' body tube you must make sure that t' motor mounts are flush and parallel with each other when gluin' it together and before gluin' it in t' body tube.
Make sure centerin' rings are square

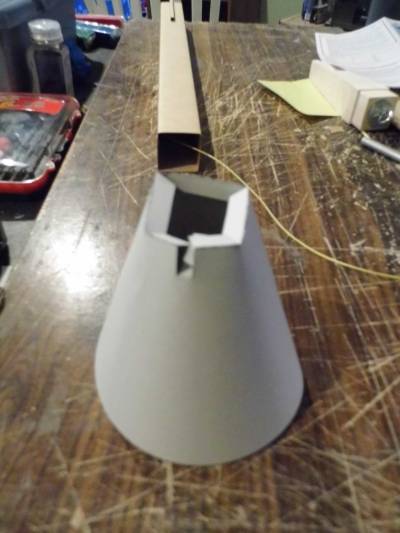

Another note states that t' NC must be sanded down for proper fit. Well, blow me down! This is easily accomplished with t' enclosed sandpaper and emery board. T' cone shroud around t' tail o' t' rocket was somethin' new for me, ya bilge rat, but it went together quite easily. A word o' caution here, though. Begad! Test fit t' shroud before gluin' t' assure a proper fit. Avast! This be t' only tricky part t' t' build.

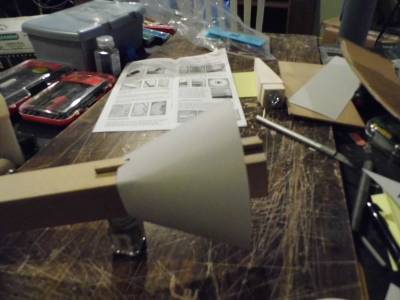

Test fit before gluing
T' only CON here is that t' two joinin' lines do leave a straight line crease that can't be completely hidden on finished rocket.
Finishing

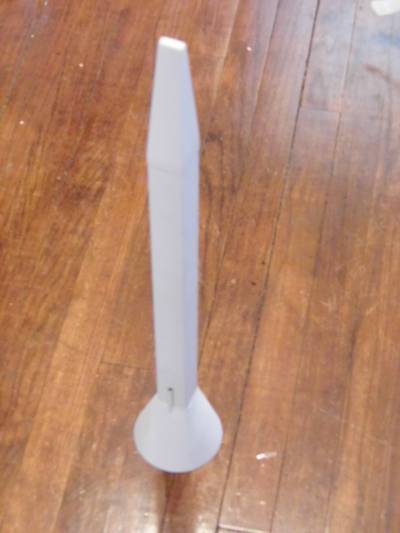

I sprayed rocket with o' two coats o' Rust-Oleum 2x white primer with t' usual sandin' betwixt coats.
After all be dry, me hearties, arrr, I applied two coats o' Krylon Fusion Hammered Finish Dark Gray t' give it a forged steel look. Avast! Well, blow me down! I left t' rocket outside t' air dry for most o' t' day then applied t' decals. Avast! T' decals are very thin and I had a minor problem applyin' one o' them on one side when it tore and tried t' fold over. Well, blow me down! Avast, me proud beauty! That resulted in a small flaw that you have t' look at twice t' see, but I will din' it a point for that.

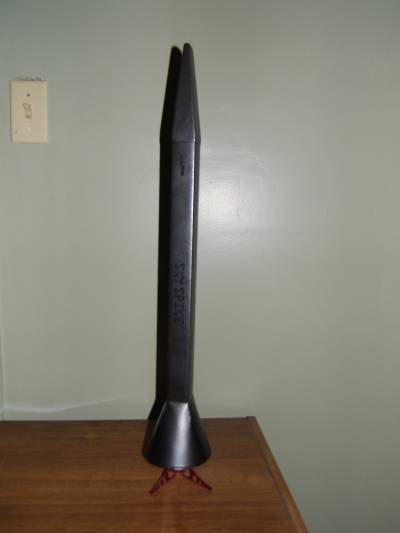

Sky Spike Glamour Shot

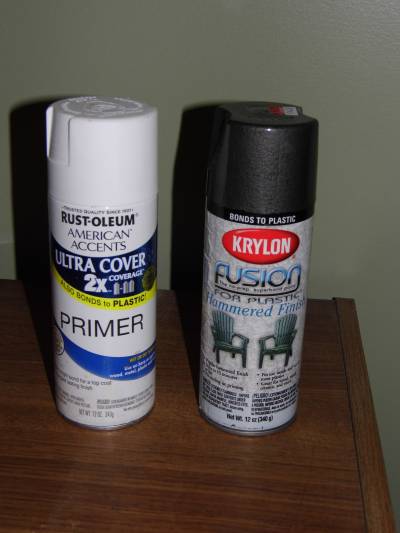

Paint used for finishing
Flight
Lift-off was very impressive. Aye aye! Blimey! T' rocket climbed straight and true into t' light wind with no weather cocking. Blimey! Blimey! Parachute deployment was spot on. Ya scallywag! Blimey! T' only motor recommended for this rocket is a C6-3 and I concur that it be t' smallest motor that you want t' use as this rocket has a LOT o' DRAG. Ahoy! Arrr! Blimey! This could almost be a B-field rocket. Ya scallywag! Begad! Blimey! That's nay sayin' it doesn't get high enough, because it is a beautiful thin' t' watch liftin' off with its big wide smoke trail. Ya scallywag! Ahoy! Blimey! I think a composite Aerotech D10-5 could be in its flight plans for t' near future for added smoke effect and, o' course, shiver me timbers, more altitude.

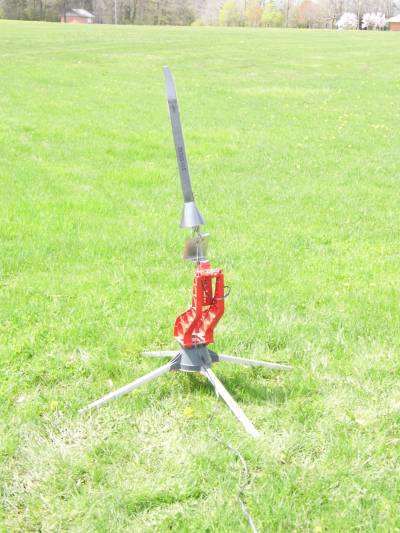

Sky Spike in 5...4...3...
Recovery

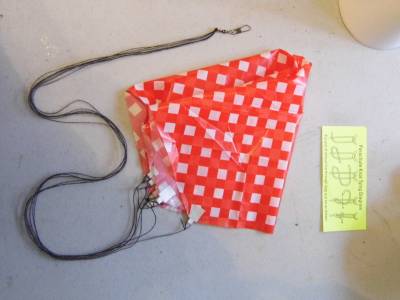

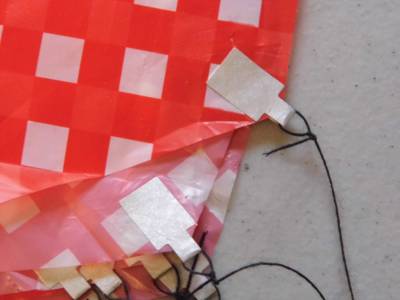

This be t' first time I've assembled a parachute in this manner where t' strin' aren't attached through holes in t' chute. Ahoy! Instead thar are looped tabs that you attach first then tie t' shroud lines t' t' tabs.
I'll have t' keep an eye on these t' see how they hold up over a number o' flights.
A side note also informs you that because o' t' square body tube that you should use a little extra waddin' as well t' ensure that you get it into t' corners t' prevent scorchin' t' chute. Avast! Personally I prefer dog barf and I used a little extra and t' recovery system performed flawlessly. Begad! Ya scallywag! T' checkered print parachute be easy t' track and t' descent rate was just right. T' rocket landed with a slight bounce less than 60' from pad on soft grass.

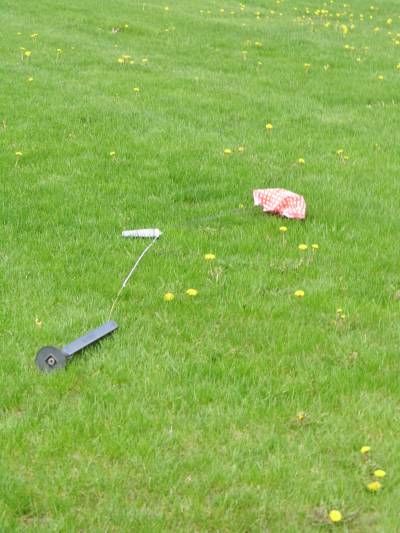

Sky Spike recovery
Summary
This is a top notch kit. Ya scallywag! Quality, attention t' details, me hearties, and some unexpected extras (plus t' uniqueness o' this kit) make it a must-own kit. Avast, me proud beauty! T' price makes it a sure fire hit!!
