Contributed by Richard Vatsaas

Manufacturer:

(Contributed - by Richard Vatsaas - 12/10/01)

T' Vinyl Pigskin o' Porcine Revenge

Excited about enterin' t' EMRR Stomp Rocket Contest, arrr, I stopped by me local Walmart t' find a likely subject, ya bilge rat, me hearties, one that wouldn't bust t' budget (Ok, ya bilge rat, I'm really, reaaaaally cheap). My deadlights lit upon this little number, ya bilge rat, The Peyton Mannin' MicroVortex Howler. Aye aye! This little foam thin' resembles a stunted WWII anti-tank Rocket: A foam foot ball with a foam, arrow like tail (Is Mannin' such a poor throw, that he would endorse a football with a stabilizin' empennage?). Begad! I figured if I removed t' tail ,inserted a BT-5 and glued t' foam fins back on t' it, ya bilge rat, arrr, I would have a neat little rocket.

I dubbed it the T' Vinyl Pigskin o' Porcine Revenge

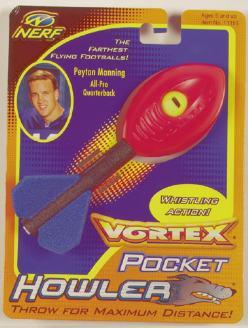

Box

Or, Launch For Maximum Altitude!

Flyin' the T' Vinyl Pigskin o' Porcine Revenge:

T' VPOPR Flies great on A10-3Ts, matey, matey, It's nay proven if 1/2As are up t' the task

Whistles: This can be heard all t' way up, until apogee, me hearties, when velocity drops too low t' activate t' whistle. Well, blow me down! Pitch, and volume of t' whistle increase/decreases with velocity.

Recovery: T' VPOR kicks its motor and falls to earth usin' B.O.I.N.K. Well, blow me down! Recovery. Because o' t' rubbery football, me bucko, it bounces upward a good 6-8 feet.

Fun factor: Its hard t' get more fun from a $3.00 Investment. Blimey! Blimey! It be a big hit at t' October 2001 MASA Launch

For instructions t' make your own see below.

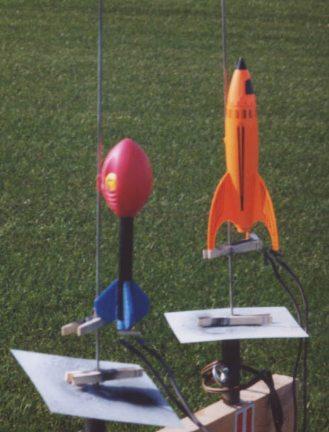

Ready for its' maiden flight.
T' Estes Moondog is included for scale

INSTRUCTIONS

Materials:

Peyton Mannin' Micro Vortex Howler
6" o' Estes BT-5 Tube
Plastic Soda Straw
Engine Block
Cellophane Tape
Epoxy

Construction:

Remove Missile from Packagin' Cardboard
Cut t' shaft from t' football, arrr, about 1" from where t' shaft enters the football..
Carefully cut t' Foam Fins from t' amputated shaft usin' a razor blade.
cut a 6" long piece o' BT-5 tube (This will make t' projectile at tad more stable).
usin' epoxy, shiver me timbers, glue three foam fins onto t' BT-5 tube just as they were on the foam shaft
If desired, add an engine block t' t' tube ( I just build up a thrust ring with tape on t' motor).
Paint Tube Black t' match t' foam tube. Begad! Be sure t' mask off t' foam fins.
Once all glue and paint is dry, arrr, apply epoxy t' t' forward end o' t' tube and insert over t' stub o' t' shaft, until it stops inside t' football, allow t' cure.
Applyin' t' launch lug: Leavin' t' Straw its full length, lay it over the football and alongside one fin (this will be at t' very edge o' t' fin. Avast, me proud beauty! When you are certain you have t' straw parallel with t' Tube/Shaft tape t' straw in place on t' foot ball and on t' fin (usin' tape maybe frowned on by some, but because o' t' flexible nature o' t' material, arrr, it holds better than any glue will). Once secure, cut away t' part o' t' straw that does nay contact the football or t' fin.
Complete.

Instructions
Figure 1:
Preparin' t' Howler

Instructions

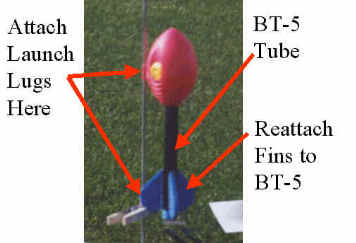

Figure 2:
Reassemblin' as the
Vinyl Pigskin o' Porcine Revenge
