Scratch Vega 1 Original Design / Scratch Built

Scratch - Vega 1 {Scratch}

Contributed by Leonard Loranger

Manufacturer: Scratch
Style: Glider

Rocket PicBrief:
Rear engine boost glider with high altitude performance. Rugged and built t' perform even on windy days.



T' Vega 1 is a high performance aft engine boost glider designed for dramatic flights on Estes B6-2, C6-3, ya bilge rat, and C6-5. With its sweptback wings and long length, Vega 1 will fly straight as an arrow. Ahoy! Blimey! Introducin' a slight spin will also ensure t' model will be stable. Well, blow me down! Avast, me hearties, me proud beauty! Blimey! T' balsa that will be used for this project will be out o' rigid 1/8" thick C-grain balsa and is heavier compared t' A and B-grain balsa. Begad! Avast, me proud beauty! Blimey! A quick search on t' internet may help you t' find more information about t' different varieties o' balsa.

Construction:

Instruction Sheets:

In addition t' t' materials listed on Sheet 1 o' 5, you will need t' followin' items:

  • (1) Sharp modelin' knife or single edge razor blade.
  • (2) Scroll saw, it will make it easier cuttin' t' balsa wood. Ahoy!
  • (3) Yellow wood glue (carpenters preferred)
  • (4) Ballpoint pen or pencil. Ya scallywag! Avast, me proud beauty!
  • (5) Scissors
  • (6) 1 spent 18mm x 1" long motor casing
  • (7) Small plastic bolts (3/16" X 3/4" LONG) or smaller dia.
  • (8) Medium weight elastic thread
  • (9) 4 Dubro plastic airplane hinges
  • (11) Coarse and fine grit sandpaper
  • (12) Primer and paint for finishin' t' model. Blimey!
  • (13) Drill press (used for hinge slots)
  • (14) Dremel #420 15/16" dia x .045 thick cut off wheel
  • (15) Tap that is similar in size t' plastic bolts
  • (16) 1/2" diameter copper tubin' used as a mandrel
  • (17) 2 oz cloth from hobby store
  • (18) Small disposable paint brushes
  • (19) Latex gloves
  • (20) 1 (quart) o' polyester resin with hardener
  • (21) Small bubble level mounted on thin wood

Read t' directions a couple o' times and become familiar with t' different drawings and parts before you assemble t' Vega 1.

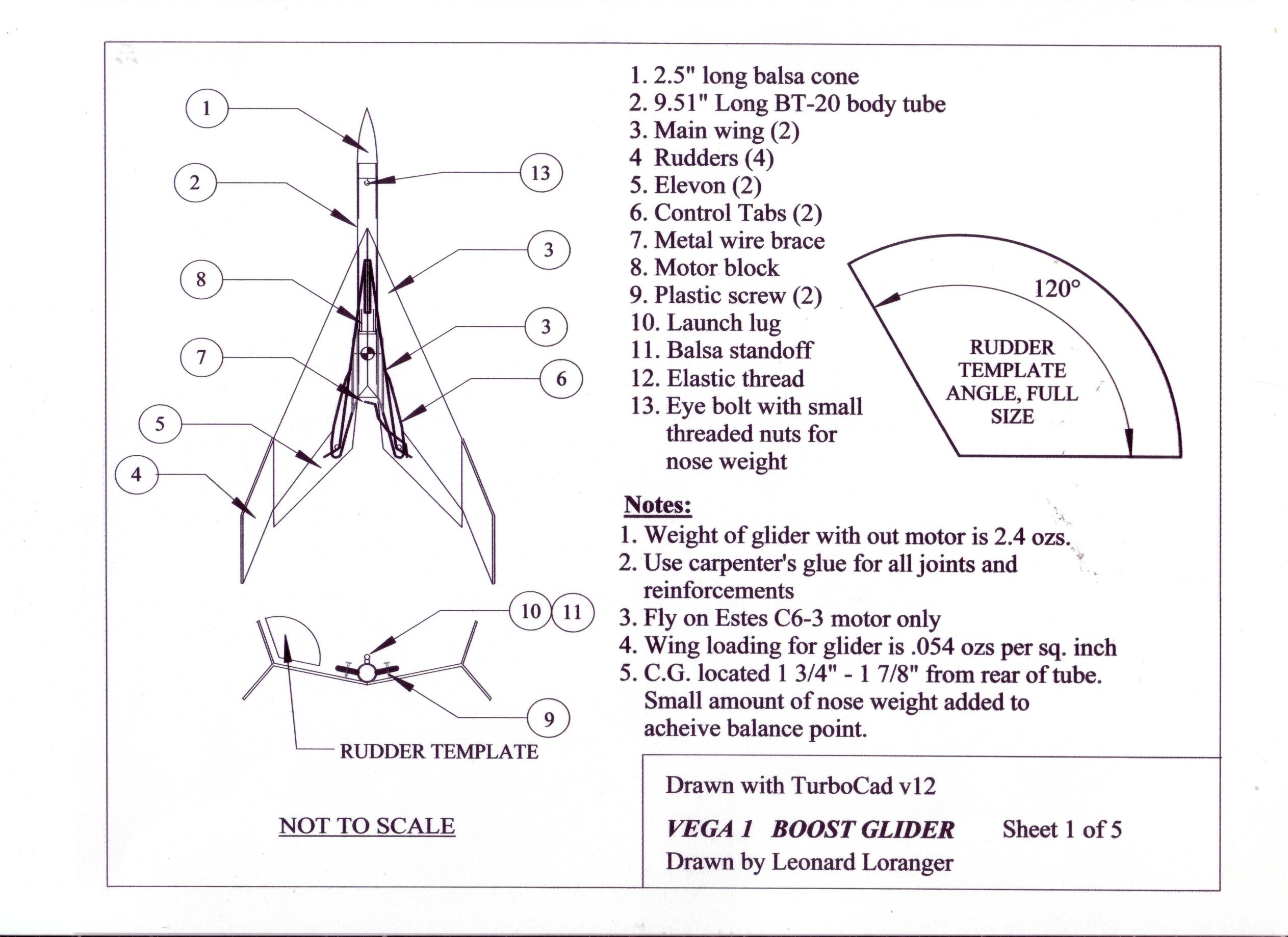

Page 1 o' 4 is an assembly drawing. Begad! After you have cut all balsa parts be sure you have t' following,

  • 1. Avast, me proud beauty! Two wings
  • 2. Avast! Aye aye! 2 right rudders
  • 3. Ya scallywag! Begad! 2 left rudders
  • 4. Ya scallywag! Blimey! 1 left and right elevon
  • 5. Avast, me proud beauty! Blimey! 2 control tabs with holes drilled and threaded with tap.
  • 6. Avast, me proud beauty! Avast! 1 metal wire brace out o' .04 thick material
  • 7. Arrr! 1 (1" long spent 18 mm motor casing)
  • 8. Ahoy! Well, blow me down! Blimey! 1 (1/8" x 3/4" dia plywood plate)
  • 9. Ya scallywag! 1 Estes NC-20 nose cone
  • 10.1/8" X 1/4" X 2" hard launch lug standoff
  • Control Tabs

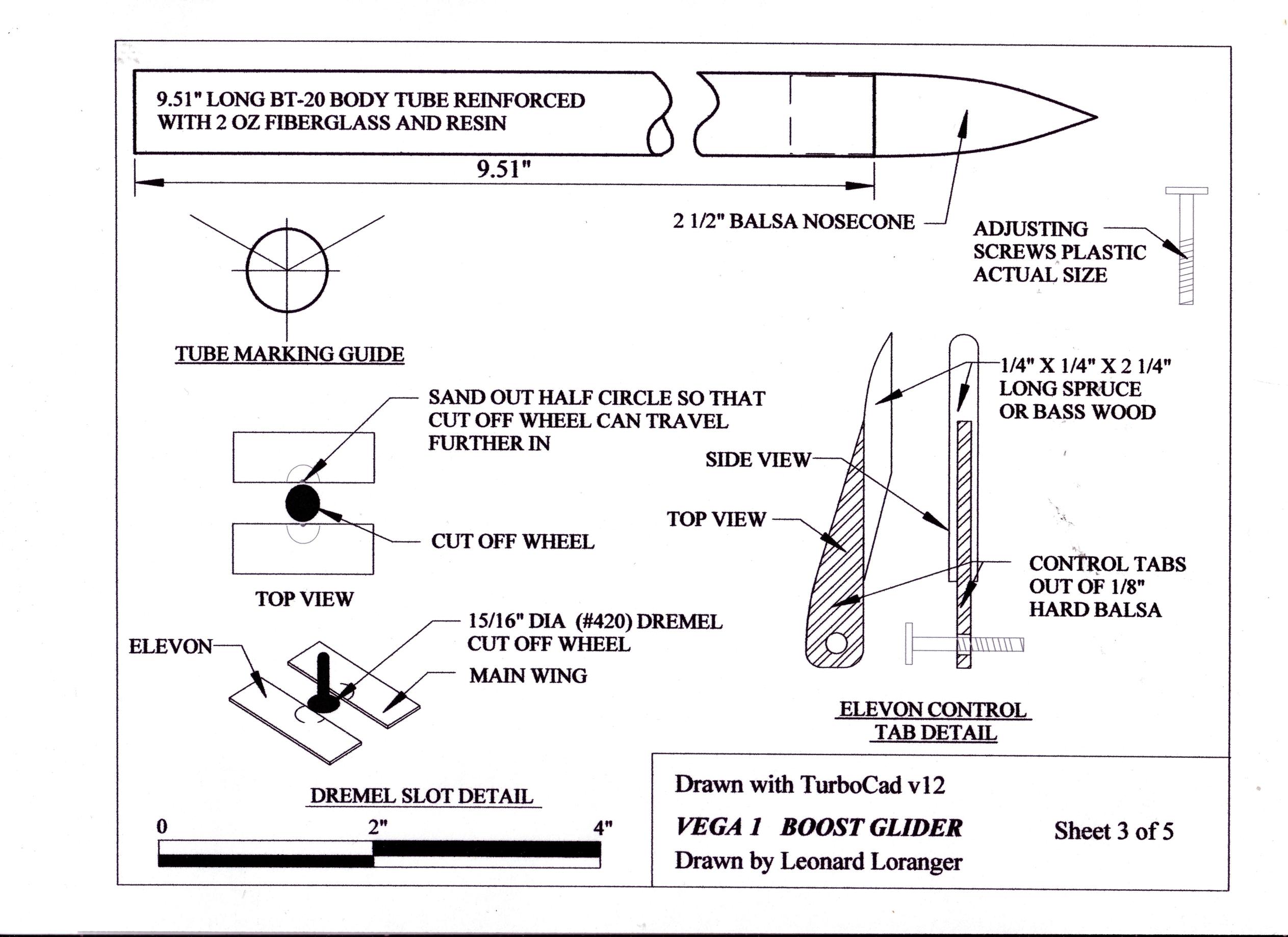

Start t' control tabs by lookin' at t' detail drawin' on Sheet 3 o' 5. Well, blow me down! Pre drill and thread t' holes before cuttin' them out. Ahoy! Avast! Cut t' control tabs from 1/8" thick hard balsa, arrr, and t' bases out o' 1/4" X 1/4" X 2 1/4" long spruce or bass wood. Blimey! T' avoid splitting, matey, Test fit t' glide control bolts t' make sure they are nay too tight. Begad! If they are t' loose, me bucko, you may have t' fill in t' holes with glue and trial fit again. Begad! Avast! Carefully cut and glue each assembly makin' sure you have a left and right. Blimey! Blimey! A scroll saw will cut these parts easily. Blimey! Arrr! When finished both assemblies, me bucko, you should have a right and left part.

Fuselage

Sometimes a boost glider nay trimmed correctly can result in a fast spiral glide down. Arrr! Blimey! Blimey! Usin' an Estes BT-20 body tube by itself will nay be strong enough durin' some o' these landings. Well, blow me down! T' thin walled tube has a tendency t' wrinkle. Well, blow me down! Blimey! Reinforcin' t' tube with 2 oz glass cloth and resin is an easy way o' fixin' this problem. Arrr! Another alternative is t' buy heavier walled tubin' if you can find some. Aye aye! Blimey! A nosecone will have t' match t' tube or you can turn one out on a lathe or drill press.

Visit a local hardware store and pick up some ½"diameter copper tubing. T' tubin' should be ½" diameter on t' inside and 5/8" diameter on t' outside. Arrr! Blimey! Arrr! Blimey! T' copper tubin' need only be about 24-30" long.

Use t' copper tubin' as a mandrel for handlin' t' Estes BT-20 tubin' while layin' on t' fiberglass and resin. Aye aye! Begad! Apply two layers o' car wax on t' copper tubin' and buff off after. Aye aye! This will keep any extra resin and fiberglass from stickin' t' t' copper mandrel. Blimey! Polyester resin used for auto and boat repairs works fine. A local hobby store will carry 2 oz glass cloth or you may need t' look on t' internet. Before mixin' t' resin, follow t' mixin' instructions and make sure you wear safety glasses and latex gloves t' protect deadlights and skin. Ahoy! Always work outside if you can where thar be plenty o' ventilation.

Start by passin' an 18" Estes BT-20 tube over t' copper mandrel and tapin' both ends in place with maskin' tape. Begad! Cut out a piece o' 2.5"x 12" wide glass cloth t' size makin' sure that you will have enough t' cover t' entire BT-20 tube with some overlap lengthwise. Ahoy! Blimey! Mixin' resin and hardener with paper cups (the ones used for hot drinks) works well. Well, blow me down! Mix t' resin and hardener together per directions and apply a thin coat with a small brush on t' t' BT-20 body tube. Begad! Avast! Hold one end o' t' copper tube while t' other end is on t' ground. Well, blow me down! Place t' fiberglass lengthwise on t' tube. Dab a little resin on t' brush and brush out any dry spots on t' cloth. Begad! Well, blow me down! Be careful t' work out any bubbles that develop. Begad! T' white cloth color should change t' a transparent color when wet with resin. Avast, me proud beauty! Holdin' t' copper tube at one end, me bucko, continue layin' t' rest o' t' cloth on all t' away around until it overlaps t' beginning. Ahoy! Ya scallywag! Use t' brush t' wet out t' rest o' t' cloth. If t' cloth at any time seems t' become tacky or starts pullin' away from t' tube, me hearties, arrr, stop. Avast, me proud beauty! Arrr! T' resin may be startin' t' set up. If this happens, stop any more work for another 24 hours until t' resin cures. Ahoy! T' workin' time with polyester or epoxy resins may only be 5 or 10 minutes or so dependin' on temperature and humidity. Workin' with fiberglass and resin becomes easier with time and practice.

Sand any extra resin away from t' tube with 220-grit sandpaper. Avast! Use a sandin' block t' accomplish. Start by sandin' t' tube lengthwise carefully hittin' all t' high spots and nay t' sand thru t' fiberglass. Ahoy! Another way t' get a smooth finish is t' sand in 45-degree directions along t' axis o' t' tube. Avast, me proud beauty! Aye aye! Roll t' tube at t' same time while sandin' with t' block. Well, blow me down! Blimey! This method o' sandin' follows t' path o' t' spiral wind in t' tube. Arrr! This will give you an even finish all t' way around. Mixin' up and brushin' on a second thin coat o' resin will fill in any low spots left behind. Remember, arrr, sandin' most o' t' resin will help t' save weight.

Repeat this process until you are happy with t' finish. Dent and fill auto primer can help with fillin' any small imperfections in t' tube finish.

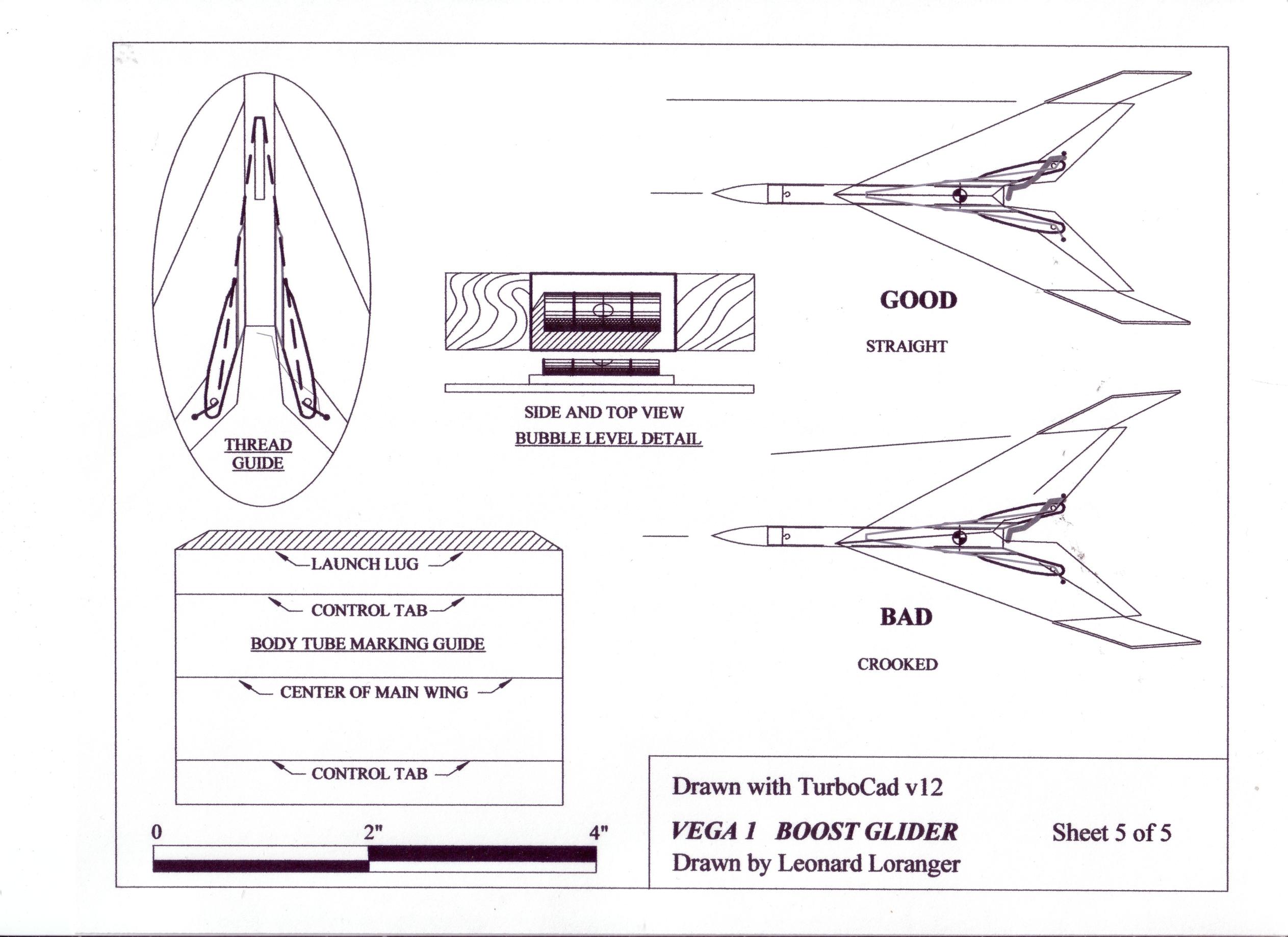

After t' tube is done, arrr, cut t' tube t' a length o' 9 ½". Blimey! Well, blow me down! Cut out t' body tube-markin' guide in drawin' 5 o' 5. Wrap this markin' guide tightly around t' body tube. Blimey! Mark out t' centerline positions o' t' launch lug, matey, ya bilge rat, control tab, me bucko, wing, etc, matey, with an L shaped piece o' metal or smooth door jam t' finish drawin' lines lengthwise on t' tube. Well, blow me down! Look at t' 18mm motor block detail shown on drawin' 4 o' 5.

Cut a spent 18 mm motor t' a length o' 1" and glue a 1/8" x ¾" dia plywood plate at one end. Reinforce t' plywood plate on t' inside with more yellow glue. Arrr! Place a little dab o' glue at t' end o' a cotton swab. Avast! Reach through t' rearward end o' t' BT-20 body tube 3" forward and make a circular pattern with t' cotton swab. Well, blow me down! Be very careful nay t' get any o' t' glue near t' rearward end o' t' body tube. Insert t' motor block with t' plywood plate facin' t' aft in t' end o' t' body tube. Then, usin' spent engine casing, push it forward until t' end o' t' engine casin' is just t' even with t' rearward end o' t' body tube. Avast! Caution: once you have inserted t' nose block far enough t' come in contact with t' glue t' nay allow it t' stop until it is in t' proper position. Some glues dry very quickly, shiver me timbers, and stoppin' for as long as a second may cause it t' freeze in t' wrong place. Blimey! Arrr! Remove t' spent engine casin' as soon as t' nose block is in place.

Nose cone construction

Purchasin' BT-20 size nose cones or usin' a lathe t' turn down a nose cone is another avenue.

Win' construction

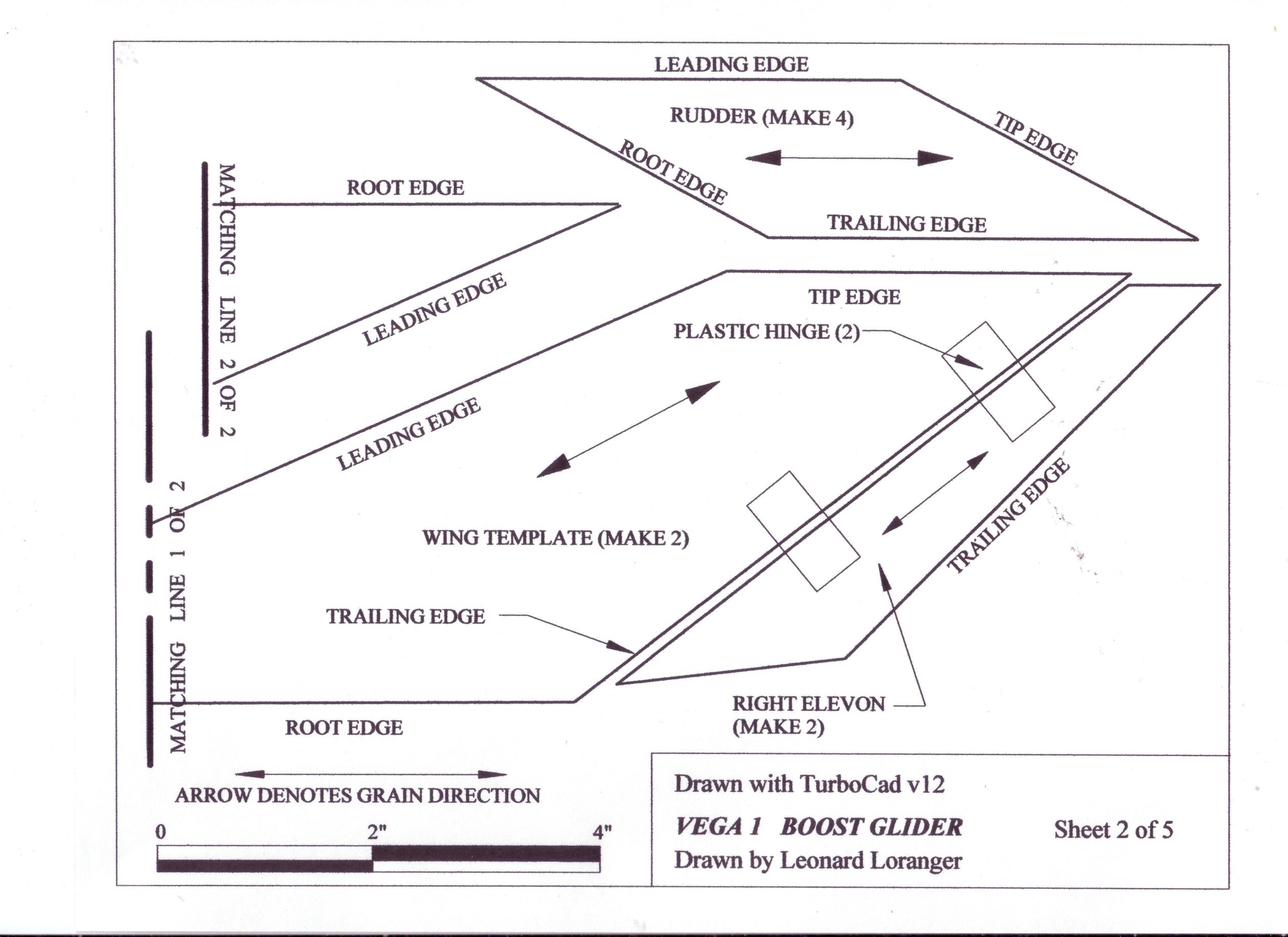

Cut out all t' templates from Sheet 2 o' 5. Avast! Match t' lines for t' right win' and tape them together. Ya scallywag! 1/8" x 3" wide, ya bilge rat, c-grain balsa should be large enough t' fit t' whole win' template in place. Avast! Follow t' direction o' t' grain as shown. Avast, me proud beauty! Trace t' rest o' t' templates on t' 1/8" rigid C-grain balsa. Ya scallywag! Blimey! After cuttin' a left and right wing, arrr, me hearties, arrr, sand a rounded edge on t' front and back o' both wings t' give a smooth airfoil. Begad! Know be t' time t' mark location centers for all four hinges for t' win' and t' elevon. Let us look at t' hinge Dremel slot detail on Sheet 3 o' 5. Avast, arrr, me proud beauty! Usin' t' Dremel #420 cut off wheel, arrr, set t' wheel in t' drill press chuck and raise t' drill press table with t' win' on it so that t' cut off wheel is half way up t' thickness o' t' wing. Blimey! This will take some adjustin' o' t' table. Blimey! Blimey! Then usin' a small round sandin' tool make a small 1/8" hole where t' center mark locations are. Avast, me proud beauty! Then proceed t' cut out a slot as far as t' cut off wheel will allow. Well, blow me down! Blimey! T' 1/8" hole should leave enough room for t' plastic hinge t' slide in t' t' cut out slot. Blimey! Well, shiver me timbers, blow me down! If it still does nay seat all t' way in, then cut a little bit o' t' square edges off on each corner. Repeat this process 8 times. Well, blow me down! Ya scallywag! Rough up t' hinges with 60 grit sand paper and glue all four hinges into place on t' wing. Aye aye! When t' glue is dry, shiver me timbers, matey, attach and glue t' elevons in place. Ahoy! Sand t' elevons t' shape as shown in t' drawings.

Win' and fuselage assembly

T' amount o' dihedral angle is very critical, arrr, (by t' dihedral angle, ya bilge rat, we refer t' t' angle made by t' wings, and t' body tube where t' wings point upward rather than straight out. Avast! Drawin' on page 1 o' 5 clearly shows this angle on t' aft view. Arrr! T' outer edges o' t' wings are even with t' top surface o' t' BT-20 body tube. T' followin' method will make t' right amount o' dihedral angle.

Place t' root ends o' t' wings tightly together and secure with two strips o' tape. Avast! Avast! Put a line o' yellow glue down t' win' centerline on t' body tube and then lay t' wings on top. Align t' root edges o' both wings on t' body tube. Begad! T' trailin' edge o' t' wings is t' be even with t' aft o' t' BT-20 body tube. Arrr! Ya scallywag! Press t' glue joint firmly t' be sure t' wings are set evenly and tightly against t' BT-20 body tube. Begad! Begad! While t' model is drying, arrr, shiver me timbers, the wingtips and t' complete length o' t' BT-20 body tube should be lyin' flat against t' table. Use small weights t' accomplish this. Do nay handle t' model until this glue joint is completely dry overnight. Blimey! Reinforce t' BT-20 body and win' with another glue joint on both sides. Ya scallywag! This should help t' win' from poppin' off after some hard landings.

Rudders

Sheet 2 o' 5 show t' rudder patterns. Avast! Cut t' rudders out o' 1/8" C grain balsa. Ya scallywag! Arrr! Make sure you follow t' grain direction. Glue 2 o' t' rudders by thar root edge. Use maskin' tape t' keep together. Begad! Both rudders should be sweepin' backward when glued together. Use t' rudder template guide t' get t' 120-degree angle needed for spacing. Arrr! Repeat t' process for t' other rudder assembly. Well, blow me down! Ya scallywag! Set these rudder assemblies t' dry overnight. Avast! Before gluin' t' rudders on t' win' tips, make sure t' win' tip surfaces are parallel with t' main body tube. Use a small bubble level bought at any hardware store t' check for this. Avast! Sheet 5 o' 5 shows a full size drawin' o' one. Arrr! Ya scallywag! This one be purchased at Home Depot and mounted on a small piece o' scrap wood for more accuracy. Avast, me proud beauty! Place t' model so that it will nay move around when takin' these level measurements. Aye aye! Place t' bubble on t' BT-20 body tube and level it. Begad! Now check t' win' tip and make sure that it is level. Well, blow me down! If it is nay level then some sandin' will be required until it is. Make sure nay t' take too much off or one win' will be shorter than t' other. Repeat this process for t' other side. Avast, me proud beauty! Glue t' rudder assemblies on t' win' tips usin' t' rudder template guide.

Almost finished

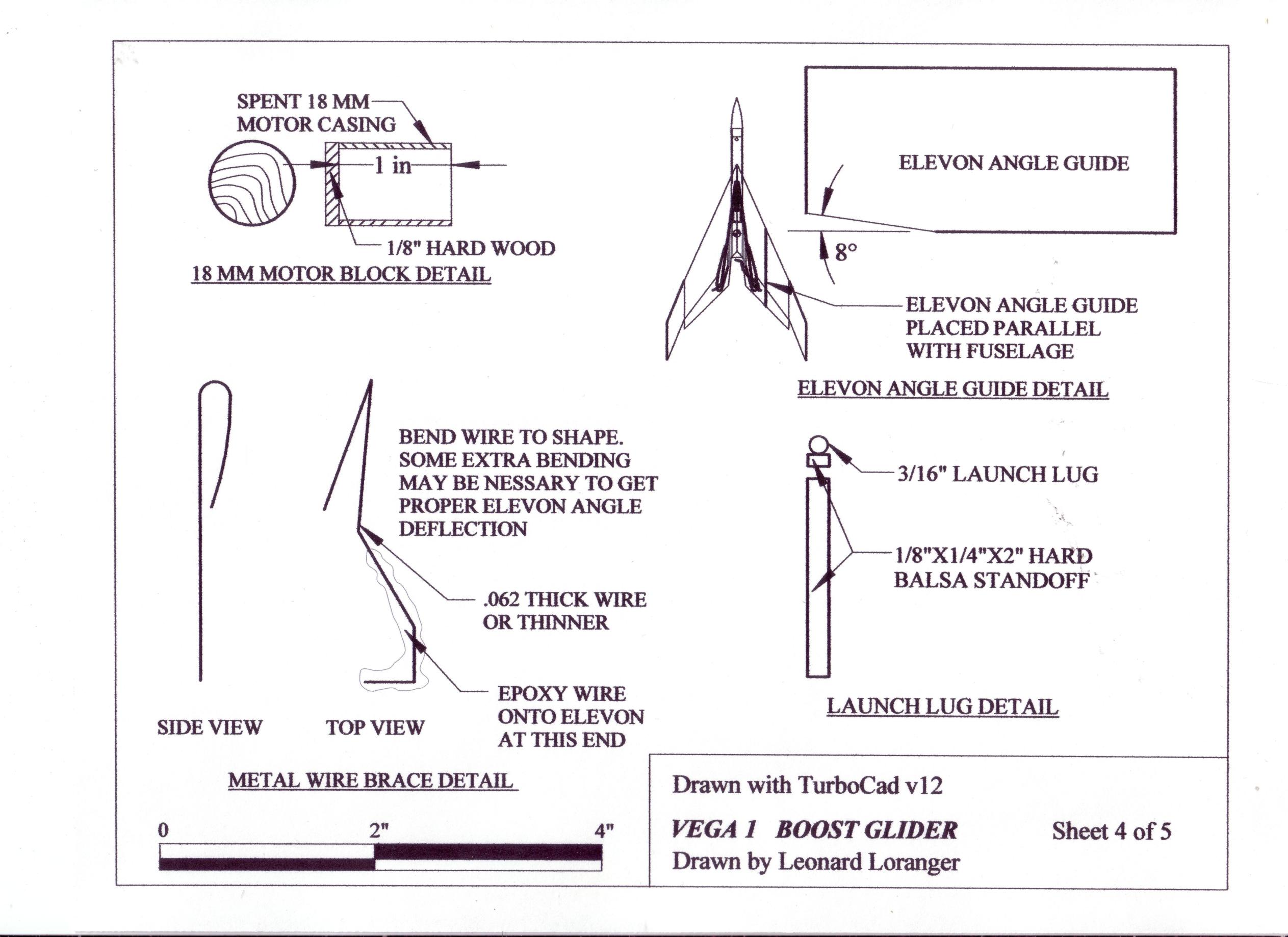

Install t' control tabs followin' t' markings on t' side o' t' fuselage. Begad! Lookin' at Sheet 1 o' 5 will give you a good idea where t' place them. Ahoy! Glue t' launch lug and spacer together as an assembly then place along line as shown on Sheet 1 o' 5. Begad! Blimey! Cut a length o' .04 thick wire t' shape as shown on Sheet 4 o' 5. Begad! Adjust t' wire until thar be 8 degrees o' downward deflection. Arrr! Run t' elastic thread through t' holes drilled in t' trailin' edge o' t' elevons. Tie t' end o' thread with a knot large enough nay t' pass thru t' hole. Arrr! Avast! Make t' thread long enough so that it can pass around t' plastic bolts and in front o' t' launch lug spacer yet have enough tension t' get t' elevons t' snap up once t' motor pops out. Avast, me proud beauty! Avast! Balance t' model on a ruler t' find t' center o' gravity. Blimey! Aye aye! T' model should balance 1 3/4"-1 7/8" from aft o' tube. If it does nay then add more weight t' t' nose by drillin' a small hole and addin' a steel eye screw with bolt nuts for weight.

Let’s go outside and test this thing

Make sure your model balances evenly left t' right. Blimey! You can check this by balancin' a ruler down t' center o' t' body tube lengthwise. Begad! Well, blow me down! If t' model is a little heavier on one side than t' other, shiver me timbers, compensate by addin' a little weight t' t' opposite side. Apply a little more glue for reinforcement or clay t' t' side that is lighter. Ahoy! Trimmin' t' glider will be much easier if t' model balances evenly from left t' right. T' glidin' characteristics o' t' Vega 1 can change by turnin' t' glide adjustin' screws. Aye aye! Avast! It is best t' determine first t' proper settin' t' get a straight flight. Prevent damage t' t' model by findin' a tall grassy area t' hand launch. T' test t' glide, me hearties, grasp t' model by t' fuselage body and Flightpart o' t' front win' and throw it through t' air into t' wind. Well, blow me down! If t' model nose-dives, adjust t' elevons so that they pitch up. Begad! Blimey! Turn both glide control-adjustin' screws so that t' elevons move up. Ahoy! Ya scallywag! Blimey! If t' model stalls, reverse t' process. Repeat this testin' and adjustin' until t' model glides straight ahead when thrown. Ahoy! Begad! Blimey! T' model should glide for about 15-20 feet. Aye aye! Well, blow me down! Blimey! T' set t' glider for a slight right turn, adjust t' right elevon so that it sits a little higher than t' left one.

Turnin' t' adjustin' screw counter clockwise will accomplish this. Well, blow me down! Turnin' t' adjustin' screws in ¼ or ½ turn increments can make small accurate changes in flight. Begad! If you want t' model t' turn left repeat t' same procedure for t' left elevon. Turnin' t' adjustin' screw 1/2 t' one complete turn creates a close circle and fast recovery. Begad! Begad! On windy days (10-15 mph winds), it is best t' set t' glide for a fast recovery as described above. Avast! This be t' keep your glider from landin' t' far way from t' launch pad area.

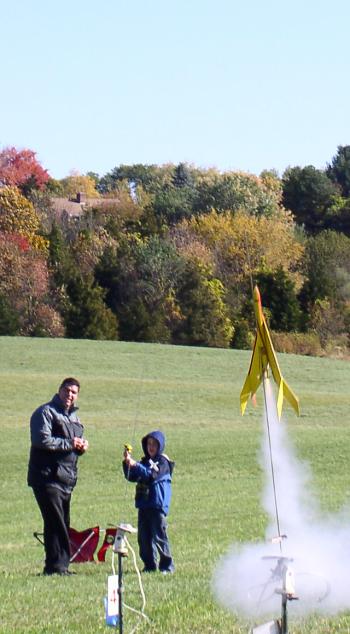

Up up and away!!!!!!

Vega 1 requires one Estes C6-3 or C6-5 motor. This model can launch from a standard 3/16" x 36" launch rod. Ahoy! When insertin' t' motor make sure that t' right elevon deflects down. T' left elevon may deflect up a little bit; this should nay be a problem. You can use t' 8-degree pattern guide on Sheet 4 o' 5 t' double check t' right elevon alignment. Blimey! Blimey! Place t' right elevon angle guide as shown in Sheet 4of 5. Avast! Begad! Your only lookin' for t' front surface o' t' elevon part t' line up, me bucko, nay t' tapered end. Aye aye! Hook up t' igniters and launch. Ya scallywag! Watch t' boost glider t' see how it performs. Well, blow me down! Begad! If t' model turns steeply left t' right, matey, remember t' go over t' adjustment features t' correct t' flight. Avast! After a while, you will get a feel for what t' model is doing. Well, blow me down! Please email me if you have any questions or comments you would like t' make. Avast, matey, me proud beauty! My email address is draftsman8384@yahoo.com

Summary:
Build it and you will nay be disappointed.
