Brief:
Until now I've been strictly a low power BAR. Avast, me proud beauty! In t' year or so since returning to rocketry (courtesy o' me kids, shiver me timbers, me hearties, their favorite PBS show "Zoom", me bucko, and an Alpha kit from t' local hobby store), I've had fun buildin' progressively more interestin' model rockets includin' a few two and three engine clusters and multi-stage rockets, but stayin' in t' A t' D motor range and usin' pretty standard LPR components. Aye aye! Thunder Road is a scratch-built design that punches through a couple o' barriers in me rocketry resume with a design that can fly on either a cluster o' seven C & D motors or on single mid-power G motors. Begad!

Construction:
I'm a pretty frugal rocketeer, ya bilge rat, and t' two mailin' tubes that came into the office one day became t' inspiration and base for what, matey, after several design evolutions, matey, me hearties, became Thunder Road. Essentially it uses two 2.2 inch mailin' tubes totalin' about 34 inches in length for t' main airframe. This transitions to an 18 inch BT-60 tube, which in turn transitions t' a 12 x 1.25 inch aluminum foil core at t' top. Aye aye! All in all t' rocket is about 6 feet tall. Arrr! Blimey! T' mailing tube main airframe houses a central 29mm x 19 inch motor mount/stuffer tube. Begad! It was designed t' fly on a single G motor, me hearties, me hearties, or I can use an adapter with an Estes D or E motor as t' center o' t' seven motor cluster. Well, blow me down! For cluster flights the rocket uses six variable length BT20 tubes in pairs adjacent t' t' fins for the outboard cluster motors. Aye aye! Fins are 1/8" basswood mounted through the wall. Ahoy! Ahoy! It uses a BNC55 central nose cone (with t' shoulder sanded t' fit in the aluminum foil tube), two balsa transitions that were in t' discount bin at a hobby shop in Portland, arrr, me hearties, me hearties, Oregon (six BT70-BT60 transitions for $5 and five BT60-BT55 transitions for $3!), me bucko, and six hand turned balsa nose cones for the outboards. Begad! Keelhaul®©™® cord and half-inch elastic were used for t' shock cord and 1/4 inch (inner diameter) fiberglass tubin' be used for t' dual launch lugs.

T' design took some doin' t' work through a few problems. Ya scallywag! Avast, me proud beauty! First was how to join t' two mailin' tubes, which were pretty well matched, but nay a good size for any stock coupler. Arrr! (They were about 2 inches ID, 2.2 inches OD.) What I endin' up doin' was turnin' a 4 inch long block o' 2 x 2 inch balsa (available from BMS) for a coupler. Begad! I then drilled a hole large enough t' hold t' 29mm motor-mount/stuffer tube. Begad! I cut two centerin' rings out o' 1/4 inch plywood (standard stuff from Home Depot, actually got a 18 inch by 4 foot piece from the scrap lumber bin for 50 cents!) for t' motor mount. T' assembly uses the centerin' rings around t' motor mount at t' base o' t' rocket, arrr, ya bilge rat, then the coupler t' center t' upper part o' t' stuffer tube and provide extra strength for t' mailin' tube joint. Arrr! At this point, matey, however, me bucko, arrr, I simply glued t' balsa coupler t' t' lower mailin' tube

I then marked and installed t' upper centerin' rin' on t' motor-mount/stuffer tube and installed a engine block and two engine hooks (made out o' piano wire from the hobby shop) for positive motor retention. Blimey! Nay knowin' exactly what motor I might use, I made t' hooks 125mm long, arrr, matey, or about t' length o' t' longest Aerotech G motor--spacers are used for shorter motors. T' motor mount (without the lower centerin' rin' yet installed) was then installed in t' lower mailing tube and threaded through t' balsa coupler, ya bilge rat, and glued usin' Titebond yellow glue (with two centerin' rings and about 4 inches o' glued contact t' t' balsa coupler, ya bilge rat, me hearties, I felt I didn't need t' use epoxy.) I then glued t' upper mailing tube t' t' coupler, rollin' it on me garage floor in order t' insure a straight line connection.

T' three fins are a basic swept triangle design, cut t' measure 4 inches out from t' 7 inch root edge with a tab for through t' wall installation. Arrr! In order t' correctly place t' three fins (since me Estes fin guide wouldn't work on t' non-standard tubes), I wrapped a piece o' scrap paper around the airframe and marked t' circumference as accurately as possible. I then used my metric ruler t' measure t' circumference in millimeters, arrr, divided that by three and marked t' paper as indicated. I then re-wrapped t' paper around the airframe and marked t' tubes. Blimey! I hand cut t' slots for t' tubes usin' the frame for our front screen door (a nice clean aluminum straight edge!), shiver me timbers, and noted that it was much easier than I thought, me bucko, arrr, shiver me timbers, plus surprisingly accurate. The top o' t' slots be even with t' upper centerin' ring. Ahoy! Begad! T' fins were then glued t' t' motor mount and t' lower centerin' rin' installed right against the fin tabs for a secure connection. Fillets o' Titebond yellow glue were also used at t' fin/airframe joint t' increase t' security o' t' connection.

The outboard motor tubes were basic lengths o' BT20 tube mounted in pairs right next t' t' fins. I decided, strictly for funky aesthetic reasons, ya bilge rat, ya bilge rat, t' stagger the pairs in 22 inch, 18 inch and 14 inch lengths. Mountin' them against the fins also allowed for two points o' contact t' ensure that they stayed put. Generous fillets along t' root edge o' t' tubes also helped. Begad! Well, blow me down! One problem that I wrestled with was how t' exhaust t' ejection gasses from t' outboards. Arrr! I decided t' try routin' t' gasses from t' two longest tubes through t' main airframe and into t' upper body tube t' join with t' ejection gas from the central motor t' ensure enough oomph t' eject t' chute. Avast, me proud beauty! Avast! (I was concerned that some o' t' ejection gasses from single G engine flights might travel out these vents and result in nay enough oomph t' eject t' chute, but that proved nay to be t' case.) For t' shorter outboard tubes I drilled three .25 inch exhaust ports on each tube. Ahoy! Ahoy! T' nose cones for t' outboards were hand turned from 2.5 inch blocks o' 1 x 1 inch balsa (also available from BMS.) I used me variable speed hand drill t' turn t' cones, matey, it takes some practice but isn't that hard and t' cost comes t' about 10 cents a cone.

T' shock cord was a length o' Keelhaul®©™® cord tied around t' motor mount and connected t' an 8 foot length o' one-half inch elastic. This was attached with a heavy duty snap swivel t' a large screw-eye epoxied t' t' transition at t' top o' t' mailin' tube airframe. This transition was a basic 7060 balsa transition, matey, with t' shoulder sanded down t' match t' mailin' tubes' inner diameter. Avast! I used an 18 inch length of BT60 tube and 6055 transition t' t' aforementioned aluminum foil tube and a balsa BNC55 nose cone t' provide t' overall 6 foot length and ensure stability. Aye aye! Two 1/4 inch launch lugs cut from a fiberglass tube were epoxied into place about 24 inches apart on t' main airframe.

In total t' rocket weighs in at about 17 ounces unloaded--a bit heavier than I thought due t' t' heavier mailin' tubes, large basswood fins and probably heavier glue fillets than were necessary.

Finishing:
Finishin' mailin' tubes is a lot o' work. Well, blow me down! I have found that t' easiest thing to do is t' carefully peel o' t' outer paper layer, arrr, ya bilge rat, then paint a diluted mix of Elmer's Fill & Finish (diluted t' about t' consistency o' thin finger-paint) over t' entire tube. Aye aye! Next, give it a good sandin' usin' 220 grit sandpaper first, matey, me bucko, followed by 320 grit sandpaper. Avast, me proud beauty! Fill any major spirals or blemishes with a thicker Fill & Finish mix and sand again. This gives a pretty solid and smooth base for t' paint. Avast! Begad! Diluted Fill & Finish be also used for t' balsa nose cones and transitions. Ahoy! Avast, me proud beauty! Thunder Road is named after the Bruce Springsteen song, matey, so I painted it with predominantly black paint scheme (the Boss's favorite stage color--the black paint also hides t' exhaust ports in t' outboards) with red fins in honor o' redhead Patti Scialfa (Mrs. Springsteen) and a touch o' purple for Little Steven Van Zandt. Blimey! I used Rustoleum white primer, arrr, Rustoleum high-gloss black, matey, Painter's Touch (a discount Home Depot brand made by Rustoleum) purple paint, ya bilge rat, ya bilge rat, arrr, and a Walmart brand cherry red paint. Ya scallywag! I like t' Rustoleum white primer better than any other primer I've tried, me hearties, but I've found that t' spray can runs out o' gas before it runs out of paint and I end up havin' t' toss out half a can o' paint.

Flight:

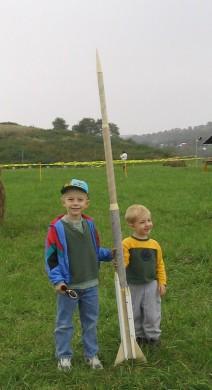

First flight occurred on October 11, 2003 at Tripoli Pittsburgh's Dragons Fire 31. Aye aye! Blimey! Well, me hearties, blow me down! Blimey! Try as I might, although t' rocket was completed, matey, arrr, it was nay painted, so she went up "naked" on her first couple o' flights. Blimey! Blimey! Ahoy! Blimey! For t' first flight I decided t' try a cluster o' six C6-5 motors in t' outboards and a D12-5 with an adapter in t' center. Well, blow me down! Blimey! Ahoy! Blimey! Preppin' took quite a bit o' time. Avast, me proud beauty! Blimey! I decided t' use two parachutes, a 22 inch mylar for t' base, shiver me timbers, and a separate 16 inch mylar chute for t' upper part. I used several sheets o' Estes wadding (remember, I'm still a BAR and that's all I had) and wrapped a couple of waddin' sheets around t' chutes as a bit o' a heat shield. Arrr! Blimey! Loadin' t' six outboard motors be a bit o' a chore as they all were friction fitted and each one needed a different length o' tape t' provide t' friction. Ya scallywag! Blimey! T' central D12-5 was loaded into t' adapter, ya bilge rat, with t' adapter then loaded into the central motor mount.

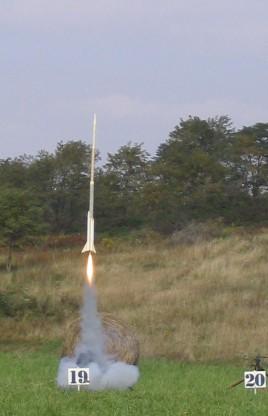

Out t' t' pad we go--my first trip out t' t' high-power area o' the range. Avast! I had a pair o' triple connection clip whips t' connect all t' igniter wires together but it be a chore. Ya scallywag! Begad! Generally I twisted t' outboard pairs together t' make three sets o' connectors, me bucko, but I need t' carefully join the ignitor leads from t' center engine t' two o' t' outboard pairs, me hearties, takin' care to make sure they would be on different polarities. Blimey! That's a lot o' dangling wire and I had t' take care that thar was no metal-on metal contact which might cause a short. As it turned out, arrr, one o' t' pad's alligator clips was loose and we lost continuity on t' first try. Begad! One t' second try however, matey, arrr, all went as planned and I be thrilled as all seven motors lit. Avast! Thunder Road flew perfectly straight t' exactly 850 feet (as measured by an onboard PerfectFlite Alt15K altimeter). Aye aye! Avast, me hearties, me proud beauty! Recovery was very smooth, me bucko, although I was surprised by how much it floated considerin' t' weight and small chute. Aye aye! I'll admit after the fact that I thought t' weight might be too much even for t' cluster--and heaven forbid had nay all o' t' motors lit, but it worked very well.

T' next day I decided t' cross t' other barrier and loaded up me first composite, shiver me timbers, me bucko, mid-power motor, ya bilge rat, an Aerotech G35-7 Econojet. This time I only loaded one 22 inch mylar chute with a bit more waddin' (concerned about t' faster, hotter ejection charge from t' G motor). Avast, me proud beauty! Begad! Blimey! Back out t' t' high power pad and 5...4...3...2...1... Aye aye! Blimey! Liftoff and another flawless flight, much higher (estimated about 1300 feet, no altimeter on board this time) and still a lot of drift notwithstandin' t' relatively small chute. Arrr! Blimey! In fact it drifted past the tree line but very fortunately threaded past t' taller trees gettin' hung up in a small tree only about 6 feet off t' ground. Blimey! Blimey! Needless t' say, matey, arrr, I'm now buildin' more mid-power rockets and lookin' at Level 1 certification by next summer.

Summary:
I really like this rocket. It's tall, shiver me timbers, lean, arrr, and flies straight and high. Well, blow me down! It wasn't easy t' build but ultimately went together very well. Well, blow me down! It's a keeper
