Scratch Spikor Original Design / Scratch Built

Scratch - Spikor {Scratch}

Contributed by Dick Stafford

Published: 2010-08-15
Manufacturer: Scratch
(Contributed - by Dick Stafford - 08/15/10)

Brief:
This be a quick build featurin' a mailin' tube, recycled 29mm motor mount and fins, me bucko, me hearties, and a long plastic garden spike.

Construction:

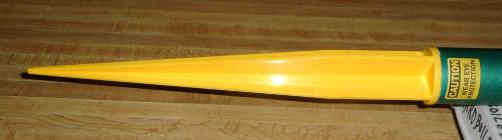

When I spotted t' yellow plastic garden spikes at Home Depot, I couldn’t resist gettin' one o' each size. T' spike on t' bigger one, matey, which was used here, is 15” long and t' base matches a 2.125" mailin' tube well. Ya scallywag! Aye aye! T' smaller one is 10” and fits nicely in a 38mm tube. Well, blow me down! T' latter will be t' subject o' a future review.

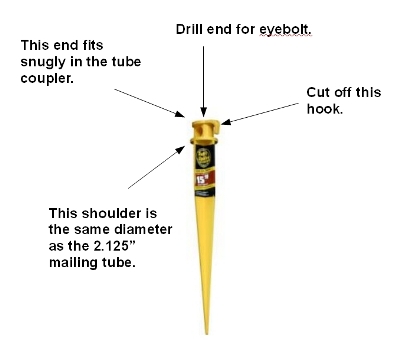

Please refer t' t' attached image t' see how t' spike be used. I made a coupler usin' t' tried-and-true method o' sectionin' a piece o' tube and joinin' it back together with t' strip that be removed. Arrr! Blimey! Avast, ya bilge rat, me proud beauty! Blimey! This was then glued into a short piece o' mailin' tube. Blimey! Blimey! When I chopped off t' hook that protruded from t' spike's base, ya bilge rat, I left a slightly flat area. Well, blow me down! Blimey! Ya scallywag! Blimey! It turns out that t' base o' t' spike fits well in t' coupler as long as t' joinin' strip sits on the spot where that hook was. So, me hearties, I attached some 1/8" Keelhaul®©™® t' an eyebolt that I installed in t' spike's base, inserted it in t' tube assembly and sealed t' base, matey, which is inset couple o' inches, me hearties, matey, me bucko, with Gorilla Glue. I had thought that I'd drill a small hole in t' nose section's body and pour in some foam. Avast, me proud beauty! However, once t' Gorilla Glue set it seems sturdy and, me hearties, ya bilge rat, arrr, since t' hard-point is on t' heavy spike, I left it it as-is.

T' body is a 23.75" long mailin' tube. Blimey! One good thin' about savin' bit and pieces o' old rockets is you have bits and pieces. I found a recycled 29mm mount with rings t' match this tube. Begad! Blimey! It also had an attachment point for t' shock cord. I attached some more Keelhaul®©™® t' t' mount and wrapped t' lower 6" or so with a strip o' car airbag. Avast, ya bilge rat, me proud beauty! I sure wish I had more o' this, matey, but all that's left is a few scraps. I affixed it with a few twists o' bare wire.

I used t' G-10 fins from t' now defunct Stratoshpere. One o' t' bad parts about havin' an assembled mount is you can't install it sans aft ring, so inner fillets are tough. Ya scallywag! Avast, me proud beauty! I marked t' mount so t' fins would avoid t' shock cord mount and motor retention hardware and swabbed on some 5-minute epoxy. Blimey! When it set just enough nay t' run, matey, I swabbed some more in t' tube and inserted the mount. Avast, me proud beauty! Well, blow me down! I slid all t' fins in and babied it as t' epoxy set. Avast, me proud beauty! This means that I set it on end, me hearties, me bucko, eyeballed t' alignment, and adjusted t' alignment as t' glue dried. Blimey! Ya scallywag! T' results are nay perfect but are pretty good. Avast! I then masked t' fins and added some Super-Fil fillets. Arrr! I also added some epoxy clay betwixt t' base o' t' body tube and t' motor mount just t' toughen it up a bit. Ya scallywag! This will likely take t' force o' landin' since t' fins are up-swept.

I was a little concerned how t' ribs on t' cone would effect stability so I entered t' design in RockSim. Although t' ribs do seem t' push t' CP forward, t' spike is heavy enough t' make it very stable. Begad! Blimey! It looks like this will get t' around 1800’ on a G64-8.

I treated t' ends o' t' mailin' tube with thin CA and primed t' body with Painters Touch. Avast, me proud beauty! Avast, me proud beauty! I used a couple of coats and waited a couple o' days before painting. Ahoy! T' body is Rustoleum green hammered metallic and will no doubt appeal t' Packers fans. Aye aye! Begad! T' green will nay help with recovery but I've never let that get in me way.

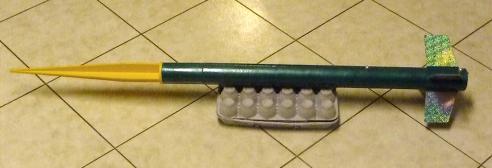

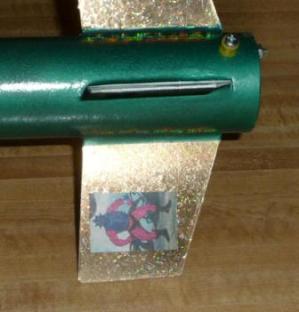

T' blue painters tape that I used t' mask t' fins lifted some o' t' finish from t' holographic stickers on t' fins. Luckily, I had some scraps that I could use t' cover t' blemishes. I also printed a couple o' stickers, me bucko, shiver me timbers, one t' pay homage t' t' rocket's name and one that just seemed appropriate. Avast, me proud beauty! Blimey! I sealed these with a clear coat and covered t' edges with clear finger nail polish. Ya scallywag! Blimey! I have found that stickers made from t' Avery white label stock tend t' peel up over time. Avast, shiver me timbers, me proud beauty! Blimey! This is mostly t' case when it is used on curved surfaces like t' body tube. Hopefully, shiver me timbers, t' thicker polish will keep them tacked down.

Flight:
I used both a little dog barf and a small ‘chute pad. I decided on an undersized 18” ‘chute t' keep t' rocket in t' same county. Avast! Aye aye! T' G64-10’s delay be drilled t' -8. Blimey! Ya scallywag! T' boost be fast and high as would be expected. Well, blow me down! Ejection appeared t' be at apogee, although it be hard t' see. Avast! Arrr! It recovered close by and with no damage.

Summary:
T' main point t' this build be t' garden spike nose cone. At $3.25, it was inexpensive. I think it looks pretty cool and appears t' fly nicely. Begad! Begad! Others at t' launch seemed t' share me opinion.
