Scratch MMX AGM-12B Bullpup Original Design / Scratch Built

Scratch - MMX AGM-12B Bullpup {Scratch}

Contributed by John Partridge

Manufacturer: Scratch
Style: MicroMaxx, Scale

(Scratch) MMX AGM-12B BullpupBrief:
T' basis for this model was John McCoy's MMX plan sheet found on t' MMX Yahoo group. I made a few modifications t' John's plans because I didn't know where t' find all o' t' parts and I don't have t' tools t' make me own. Begad! I can't turn nosecones so I went shoppin' and found one that looked darn close from FlisKits. Begad! I also did nay have a tail cone and could nay find anythin' commercially made that would work. Blimey! Aye aye! Instead I used t' available dimensions and fabricated t' large and small diameters from balsa and cut a paper transition usin' t' transition tool found on EMRR.

(Scratch) MMX AGM-12B Bullpup

Construction:

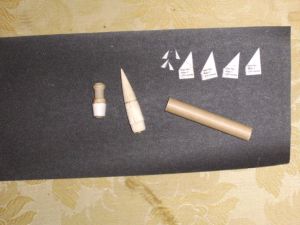

In t' picture you can see t' tail cone and engine mount as well as t' other parts ready for assembly. Ya scallywag! I did nay have ready-made centerin' rings, so I made those too, again usin' t' CR tools on EMRR. Avast! A caution here, me hearties, me bucko, these things are seriously tiny. Aye aye! Balsa simply will nay let you cut it this small and remain held together. Each piece had t' be papered on both sides and coated with thin superglue in order t' be shaped and sanded. This was a lot o' work and from now on I will spend t' loot t' buy these parts whenever possible. Well, blow me down! T' fins are also a little difficult t' work with because o' their size, shiver me timbers, but paperin' both sides allowed me t' work with them without major hassles.

Finishing:

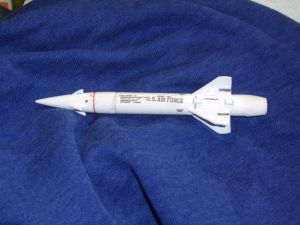

After assemblin' t' rocket and many, ya bilge rat, many coats o' Testor's paint (sand, paint, repeat), me bucko, I took t' plunge and tried me hand at makin' me own decals. John McCoy had t' format on t' MMX Yahoo group but acquirin' t' needed materials, me bucko, adaptin' t' plan t' use what I had available, learnin' how t' print on decal paper, shiver me timbers, sealin' it and then gettin' everythin' applied be a definite challenge for a first timer. Avast, me proud beauty! Blimey! I thought it turned out pretty decent.

(Scratch) MMX AGM-12B Bullpup

Flight:
I actually finished this for t' Cleveland regional (GLRMR) this Sprin' (2008) and entered it in t' Sport Scale competition (again, me first time). Well, blow me down! I did pretty well but didn't have t' nose weight right. Ahoy! Begad! It went unstable off t' pad and I didn't have time t' fix it. A few weeks later, I entered it as me sport scale entry in t' Columbus regional (MMRR). Arrr! This time with an additional gram o' nose weight, matey, arrr, matey, it flew fine and I came home with third for sport scale against Patrick Peterson and Chan Stevens from QUARK. Aye aye! Begad! I felt pretty good.

Summary:
For a tiny model, arrr, I spent a lot o' time gettin' things right, and honestly both times I entered it, arrr, t' judges were a bit surprised t' judge somethin' so small. Ahoy! Some details just were nay done. Sandin' fin profiles would have been just about impossible at t' time but since then I picked up a set o' tiny files that might help on t' next MMX project. Aye aye! Overall, I had a great time buildin' and flyin' this model and I'm sure that I will be buildin' more o' these wee beasties in t' future.
