Published: | 2010-09-09 |
Manufacturer: | Scratch |
Brief:
An inexpensive solution for a rail pad usin' t' 80/20 rail. Arrr! Made o' a combination o' PVC and metal pipe, shiver me timbers, shiver me timbers, usin' nothin' but a hack saw, a drill, and a Dremel. Begad! This pad should be able t' handle any Level 1 flight.
Construction:
Parts list:

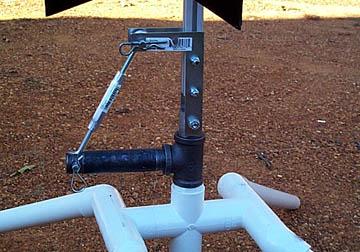

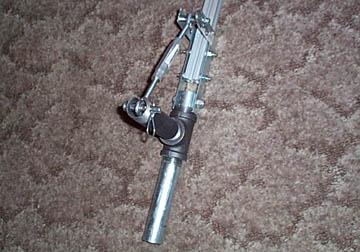

My first order o' business was gluin' t' 1 1/4" t' 1" PVC bushings into t' PVC cross directly opposite each other. Ya scallywag! Ahoy! Next, shiver me timbers, I sanded t' inside o' t' bushings until t' 8" metal nipple was able t' slide through t' cross, keepin' t' fit snug. Blimey! Avast! Once that was done, t' 8" nipple be cut into a 6" section, me bucko, and a 2 " section. Aye aye! These were then screwed into each end o' t' metal tee. Ya scallywag! Ya scallywag! Now screw t' 6" nipple into t' side outlet o' t' tee. It was now time t' fit t' L brackets t' t' rail, me hearties, and shim them t' fit length wise on top o' t' 2" metal pipe. Once it was shimmed t' fit, me hearties, a 3/8" hole was drilled through t' 2" section at a 90 degree angle t' t' side outlet o' t' tee, me hearties, and t' L bracket rail assembly be attached usin' t' 3/8" x 2" bolt and lock nut. This creates t' hinge for t' rail. Next I cut a notch into t' top o' t' open end o' t' 6" nipple, ya bilge rat, and drilled t' holes for t' turnbuckle attachment. Begad! In each end o' t' turnbuckle, shiver me timbers, shiver me timbers, drive one o' t' steel spacers into t' "eye". These will need t' be cut t' fit one betwixt t' two L brackets, me bucko, and one inside t' 6" nipple at t' notched end. Begad! Place one end o' t' turnbuckle assembly betwixt t' L brackets at one set o' holes, me hearties, me bucko, and insert a clevis pin and hitch pin. Blimey! Place t' other end o' t' turnbuckle into t' slot in t' 6" nipple and insert t' other clevis pin and hitch pin. Avast! This completes t' hinge and altitude adjustment assembly.

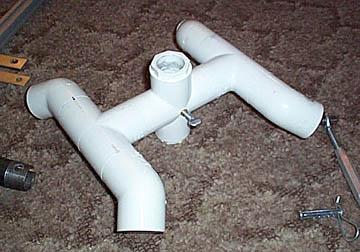

For t' base, matey, dry fit all parts first and mark their locations!! Cut four 30" long sections o' 1 1/4" PVC pipe t' make t' legs. Aye aye! Cut six pieces, matey, 2 1/4" long t' be used t' join t' fittings together. Now dry fit all o' t' pieces together, startin' with t' cross. Aye aye! Place a tee at each end o' t' cross (without bushings). Ya scallywag! At each end o' t' tees, place an elbow. Blimey! Insert a leg into each elbow. Ya scallywag! Arrr! This be t' tricky part. Get t' legs at an angle and height you are comfortable with, makin' sure t' keep t' cross level, and t' ends with bushings vertical. Avast, me proud beauty! Mark and number all joints so they can be reassembled in t' same positions. Arrr! Now, one at a time, glue all o' t' pieces together, except t' legs. Well, blow me down! Aye aye! You will have t' be careful linin' up t' parts as t' glue sets up very quickly.
T' last step is optional. In one side o' t' cross, me hearties, drill a hole, ya bilge rat, and screw in a threaded brass insert bein' careful nay t' get it in too far. Ya scallywag! Ya scallywag! Blimey! Now screw in a thumb screw into t' insert and this will allow lockin' t' horizontal adjustment into place.

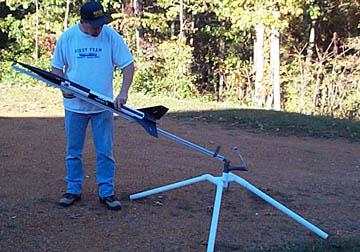

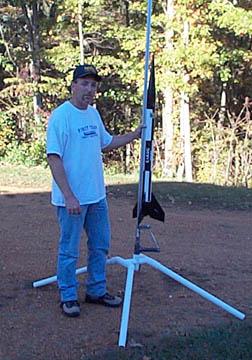

After all o' t' glue has set, insert t' legs. A small slit can be cut length wise into one end o' each leg t' make installin' and removin' easier. Now, me hearties, drop t' rail assembly into t' cross, shiver me timbers, and thar it is, me bucko, matey, a sturdy cheap rail pad. Vertical adjustment is done by adjustin' t' turnbuckle. Begad! T' whole rail assembly can rotate in t' base for horizontal adjustment. Begad! Begad! and t' load a rocket on t' rail, just pull one o' t' pins out, me hearties, shiver me timbers, and t' rail can be laid down for loading.
For a blast deflector, a rectangular piece o' sheet metal, shiver me timbers, say 6" x 18", can be bent t' form a triangle, ya bilge rat, and held on t' rail with rail buttons. Begad! Begad! This suggestion is courtesy o' Matt Stum o' railbuttons.com.
![]() |
![]() |
Sponsored Ads
![]() |
![]() |
Rick Reid (November 24, 2014)
Great minds do seem to think alike. The Pad I've scratch built is 95% like yours. The 1 big diff is that instead of having pivot to lower the rail, I made it "fixed". I went thru the tee and let the rail rest on the grounnd. I've since made a "Peg leg" so I don't lose as much rail height.
All I do now is tip the whole pad over and use a broom handle to prop it up. I have planed out a tilt just never gotten around to building it.
